Broadcom HFBR-2555AFZ 16MBd 650nm Fibre Optic Receiver, Round, SMA Connector

RS-stocknr.:: 189-4853
Fabrikantnummer:: HFBR-2555AFZ
Fabrikant:: Broadcom

Broadcom HFBR-2555AFZ 16MBd 650nm Fibre Optic Receiver, Round, SMA Connector

Tijdelijk niet op voorraad – voor levertijd of een alternatief product neem contact op via Live Chat of zoek een vergelijkbaar product op de website.

Toegevoegd

Prijs Elk (in eentube van 100)

€ 13,288

(excl. BTW)

€ 16,078

(incl. BTW)

Aantal stuks	Per stuk	Per tube*
100 - 100	€ 13,288	€ 1.328,80
200 - 400	€ 12,625	€ 1.262,50
500 +	€ 11,95	€ 1.195,00
*prijsindicatie

RS-stocknr.:: 189-4853
Fabrikantnummer:: HFBR-2555AFZ
Fabrikant:: Broadcom

Datasheets

HFBR-2555AFZ Metal Fiber Optic Receiver Data Sheet

Wetgeving en compliance

Productomschrijving

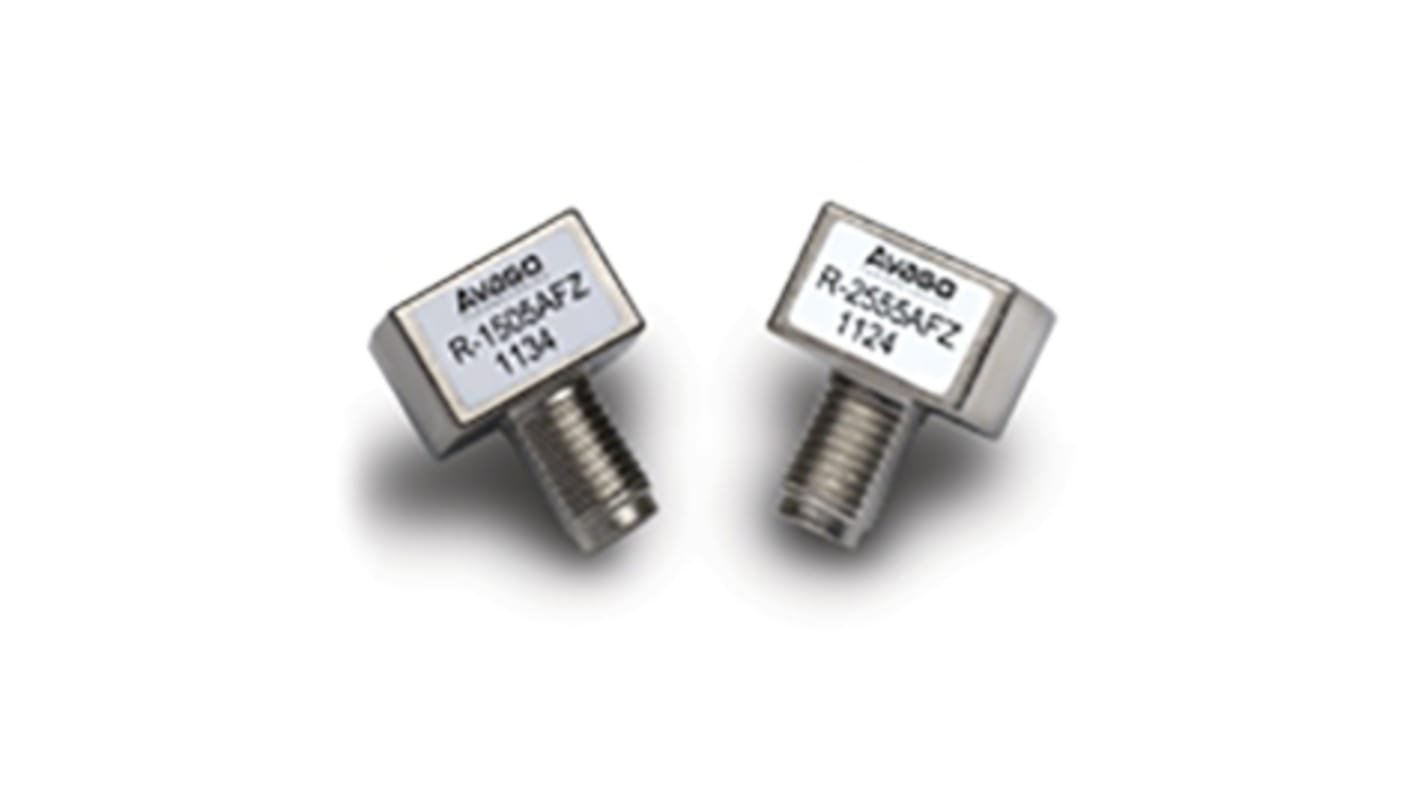

HFBR-150xAFZ/2555AFZ Series Fibre Optic Transmitters and Receivers

The HFBR-150xAFZ and HFBR-2555AFZ series, from Avago Technologies, are full metal fibre optic transmitters and receivers for SERCOS applications. SERCOS (Serial Realtime Communications System) is a standard digital interface for communication in industrial CNC applications.
Suitable applications for the HFBR-150xAFZ/2555AFZ series include; industrial control data links, factory automation data links, voltage isolation applications and motor drives.

Features of the HFBR-150xAFZ/2555AFZ series:
- Meets industrial SERCOS standard
- SMA ports
- 650nm wavelength technology
- Metal housing and port
- Auto-insertable and wave solderable

Fibre Optics, Avago Technologies

Specificaties

Kenmerk	Waarde
Maximum Data Rate	16Mbit/s
Wavelength of Peak Sensitivity	662nm
Typical Rise Time	4ns
Typical Fall Time	2ns
Number of Pins	6
Mounting Type	Through Hole
Dimensions	16.05 x 12.55 x 9.85mm
Connector Type	SMA
Height	9.85mm
Length	16.05mm
Width	12.55mm
Series	HFBR

RS-stocknr.:: 189-4853
Fabrikantnummer:: HFBR-2555AFZ
Fabrikant:: Broadcom

HFBR-2555AFZ Metal Fiber Optic Receiver Data Sheet
