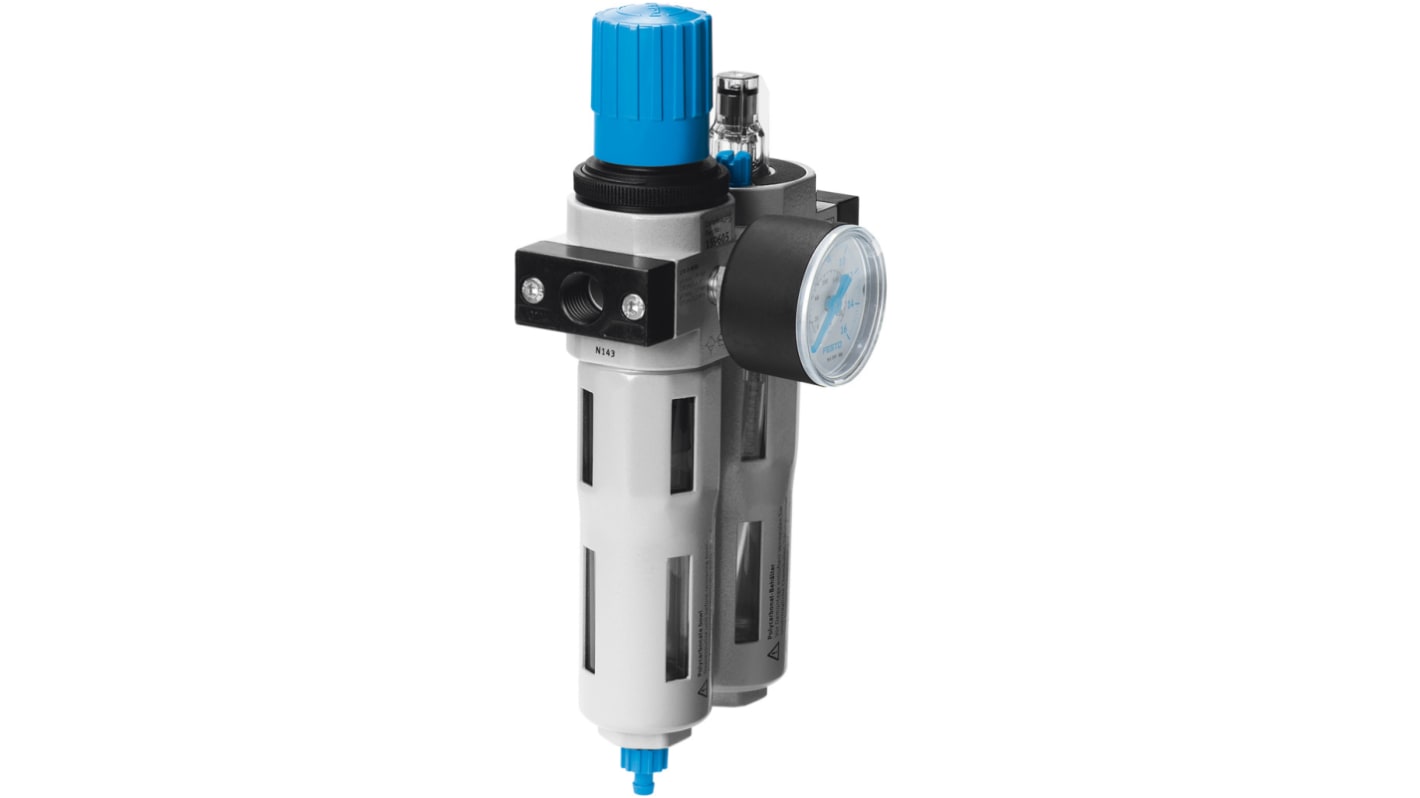

Festo 3/8 in G FRL, Manual Drain, 40 μm Filtration Size Integrated Pressure Gauge

RS-stocknr.:: 202-2943
Artikelnummer Distrelec:: 301-68-757
Fabrikantnummer:: FRC-3/8-D-MINI
Fabrikant:: Festo

Festo 3/8 in G FRL, Manual Drain, 40 μm Filtration Size Integrated Pressure Gauge

Subtotaal (1 eenheid)*

€ 170,72

(excl. BTW)

€ 206,57

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 5 stuk(s) vanaf 04 mei 2026
Plus verzending 1 stuk(s) vanaf 04 mei 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 170,72

*prijsindicatie

RS-stocknr.:: 202-2943
Artikelnummer Distrelec:: 301-68-757
Fabrikantnummer:: FRC-3/8-D-MINI
Fabrikant:: Festo

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Festo
	Product Type	FRL
	Port Size	3/8 in G
	Maximum Flow Rate	1200L/min
	Integrated Pressure Gauge	Yes
	Drain Type	Manual
	Connection Thread Standard	G
	Series	FRC
	Filtration Size	40μm
	Pressure Gauge Port Size	3/8 in G
	Minimum Operating Temperature	-10°C
	Maximum Operating Pressure	12 bar
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS, ISO 8573-1:2010
	Pressure Gauge Port Thread Standard	G
	Bowl Material	Polycarbonate
	Pressure Setting Range	0.5 to 12 bar

	Alles selecteren
	Merk Festo
	Product Type FRL
	Port Size 3/8 in G
	Maximum Flow Rate 1200L/min
	Integrated Pressure Gauge Yes
	Drain Type Manual
	Connection Thread Standard G
	Series FRC
	Filtration Size 40μm
	Pressure Gauge Port Size 3/8 in G
	Minimum Operating Temperature -10°C
	Maximum Operating Pressure 12 bar
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS, ISO 8573-1:2010
	Pressure Gauge Port Thread Standard G
	Bowl Material Polycarbonate
	Pressure Setting Range 0.5 to 12 bar

Festo D Series FRL, G3/8 Pneumatic Connection, 1 to 16 Bar Operating Pressure - FRC-3/8-D-MINI, Numeric Part Number: 162734

This innovative filter regulator offers seamless integration with a built-in pressure gauge, ensuring precise monitoring during operation. Designed with a maximum operating pressure of 12 bar and a pressure regulation range from 0.5 bar to 12 bar, it embodies engineering excellence. Moreover, it operates efficiently within an ambient temperature range of -10 to +60°C, making it suitable for diverse environments.

Features & Benefits

• Integrated pressure gauge for easy visibility of pressure levels

• Manual drain air filter simplifies maintenance and condensate removal

• Polycarbonate bowl offers high durability and visibility

• Built-in rotary knob allows precise pressure regulation

• Compact mini size enables space-saving installation

• 1200l/min flow rate supports various pneumatic systems

Applications

• Used for precise air pressure regulation in automation systems

• Ideal for pneumatic tools requiring consistent air quality

• Utilised in laboratories needing controlled air environments

• Suitable for light-duty applications in manufacturing processes

What type of mounting is recommended for this unit?

The unit is designed for vertical mounting with a +/-5° tolerance.

Does this regulator support humid air operation?

Yes, it allows, but it requires lubrication at all times.

What is the maximum condensate volume it can hold?

The maximum condensate volume is 22 cm³.

Is it suitable for operations with inert gases?

Yes, it works efficiently with inert gases as well.
