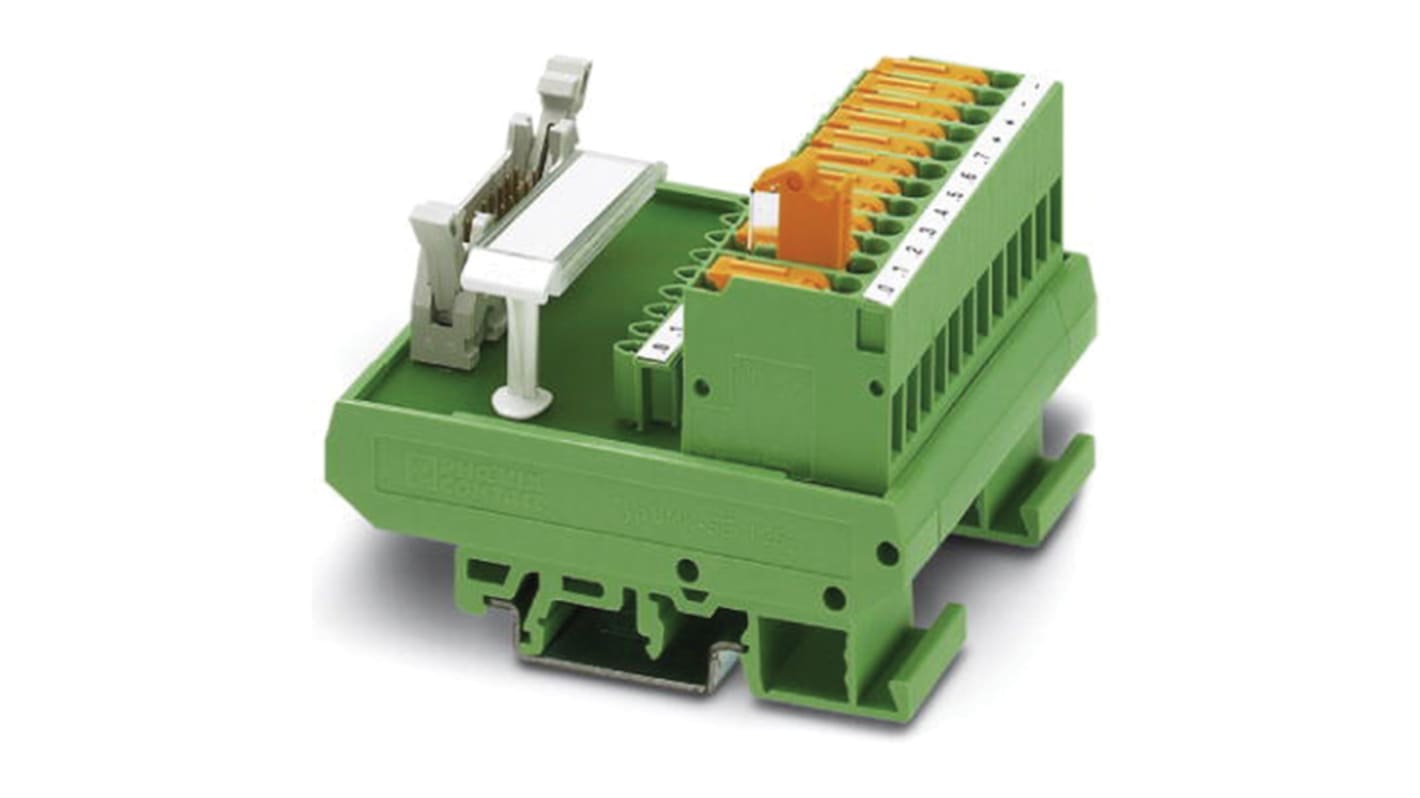

Phoenix Contact VARIOFACE Series Male Interface Module, DIN Rail, 3A
- RS-stocknr.:
- 857-2165
- Fabrikantnummer:
- 2290423
- Fabrikant:
- Phoenix Contact
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 83,47
(excl. BTW)
€ 101,00
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 83,47 |
| 5 - 9 | € 80,92 |
| 10 + | € 78,30 |
*prijsindicatie
- RS-stocknr.:
- 857-2165
- Fabrikantnummer:
- 2290423
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Gender | Male | |
| Product Type | Interface Module | |
| Current | 3A | |
| Mount Type | DIN Rail | |
| Test Proof Voltage | 0.6kV | |
| Voltage | 60V | |
| Minimum Operating Temperature | -20°C | |
| Cable CSA | 0.2, 4mm² | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | cUL, UL, IEC 60664, EN 61010-2-201 | |
| Width | 67mm | |
| Depth | 51.4mm | |
| Length | 77mm | |
| Series | VARIOFACE | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Gender Male | ||
Product Type Interface Module | ||
Current 3A | ||
Mount Type DIN Rail | ||
Test Proof Voltage 0.6kV | ||
Voltage 60V | ||
Minimum Operating Temperature -20°C | ||
Cable CSA 0.2, 4mm² | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals cUL, UL, IEC 60664, EN 61010-2-201 | ||
Width 67mm | ||
Depth 51.4mm | ||
Length 77mm | ||
Series VARIOFACE | ||
- Land van herkomst:
- DE
VARIOFACE interface module, for 8 channels with knife disconnect terminal blocks and test sockets to the peripherals and the system
Byte-by-byte labeling
Can be used for digital I/O modules
