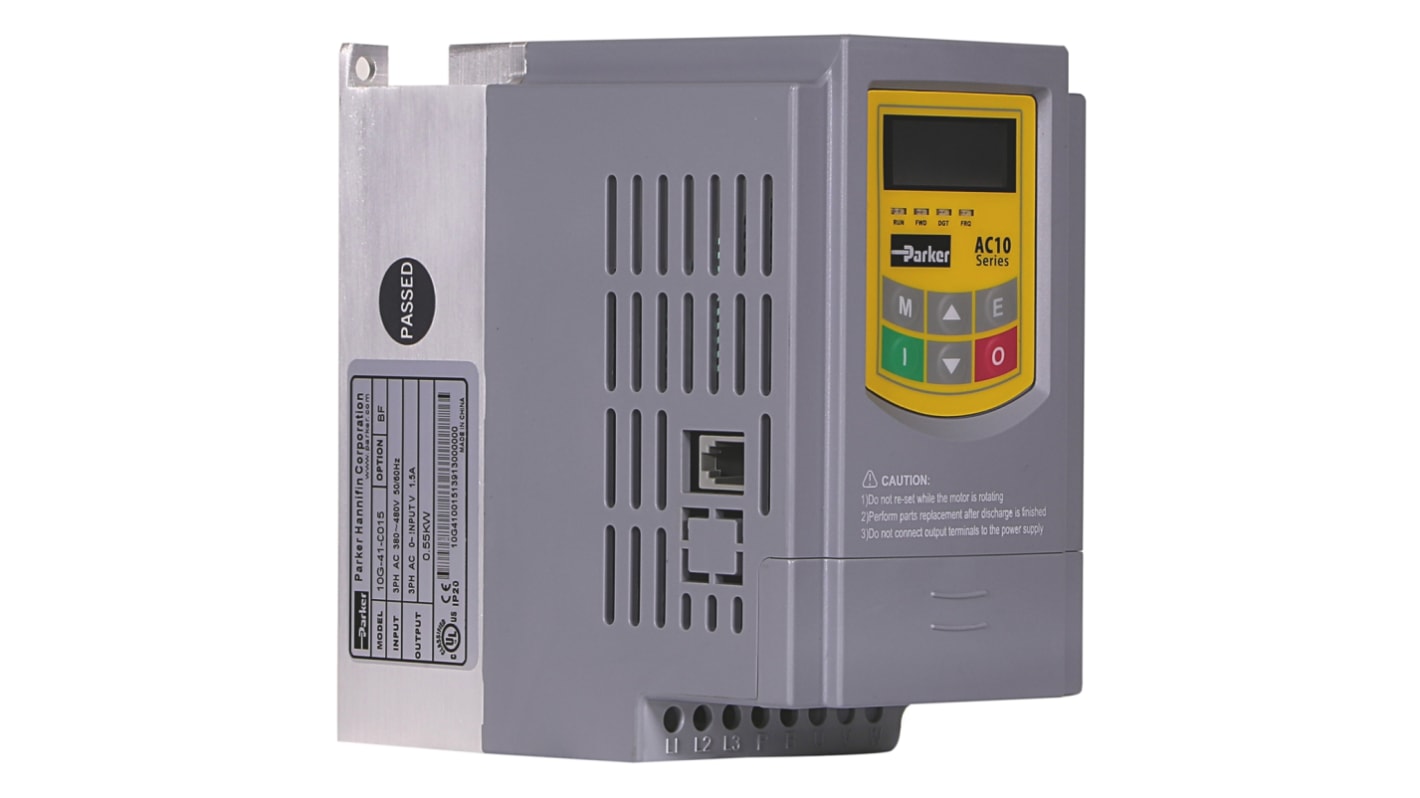

Parker Inverter Drive, 0.55 kW, 1 Phase, AC10 Series 240 V 3.5 A

RS-stocknr.:: 832-5307
Fabrikantnummer:: 10G-11-0035-BF
Fabrikant:: Parker

Parker Inverter Drive, 0.55 kW, 1 Phase, AC10 Series 240 V 3.5 A

Subtotaal (1 eenheid)*

€ 358,30

(excl. BTW)

€ 433,54

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

2 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 358,30

*prijsindicatie

RS-stocknr.:: 832-5307
Fabrikantnummer:: 10G-11-0035-BF
Fabrikant:: Parker

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Parker
	Product Type	Inverter Drive
	Power Rating	0.55kW
	Number of Phases	1
	Maximum Output Current	3.5A
	Series	AC10
	IP Rating	IP20
	Overall Length	80mm
	Minimum Supply Voltage	220V
	Output Frequency	590Hz
	Maximum Supply Voltage	240V
	Minimum Operating Temperature	-10°C
	Compatible Motor Type	Induction Motor
	Drive Type	Variable Speed
	Maximum Operating Temperature	50°C
	Overall Width	135mm
	Standards/Approvals	ULC, CE, UL
	Overall Depth	138mm

	Alles selecteren
	Merk Parker
	Product Type Inverter Drive
	Power Rating 0.55kW
	Number of Phases 1
	Maximum Output Current 3.5A
	Series AC10
	IP Rating IP20
	Overall Length 80mm
	Minimum Supply Voltage 220V
	Output Frequency 590Hz
	Maximum Supply Voltage 240V
	Minimum Operating Temperature -10°C
	Compatible Motor Type Induction Motor
	Drive Type Variable Speed
	Maximum Operating Temperature 50°C
	Overall Width 135mm
	Standards/Approvals ULC, CE, UL
	Overall Depth 138mm

AC10 Single Phase Inverter

Parker AC10 compact inverter drive has been designed with simplicity in mind. The AC10 drive series is a reliable and economical solution to routine daily motor torque & speed control applications. The compact nature of the drives come equipped with features usually common within bulky, premium models providing the user with an economical drive solution without compromising on features or quality

Offered in various power ratings ranging from 0.2kW to 22kW single & three phase with integral EMC filter

Conformally coated PCBs and refined manufacturing techniques ensure consistently outstanding levels of performance day in, day out

Simple installation requirements with minimal wiring and easily accessable terminal rails needed to get up and running

Intricate tuning for greater dynamic speed or torque control is made easy thanks to the auto-tuning sensorless vector mode. In addition to the convenience of the setup users can reap the benefits of enhanced speed & torque accuracy

In addition to the simple installation of the AC10 series of inverters they also come supplied with integrated macros for various applications. These macros include simple speed control & presets, raise / lower, manual / auto control, PID control and many more

Typical applications include:

Conveyors

Fans

Mixers

Packaging machines

Textiles machines

Barriers

Parker AC10 Range

Note

A remote keypad and lead set is available, providing customisation & monitoring remotely from the drive with all the functionality of the panel on the inverter itself. For more information please see stock number 832-5360.
Parker also provide a free configuration & diagnostic PC suite to accompany this series of drives, allowing import, export and modification of drive parameters & control. For more information and download please visit the manufacturer website

Standards

Conformal coating adheres to Class 3C3 environments
