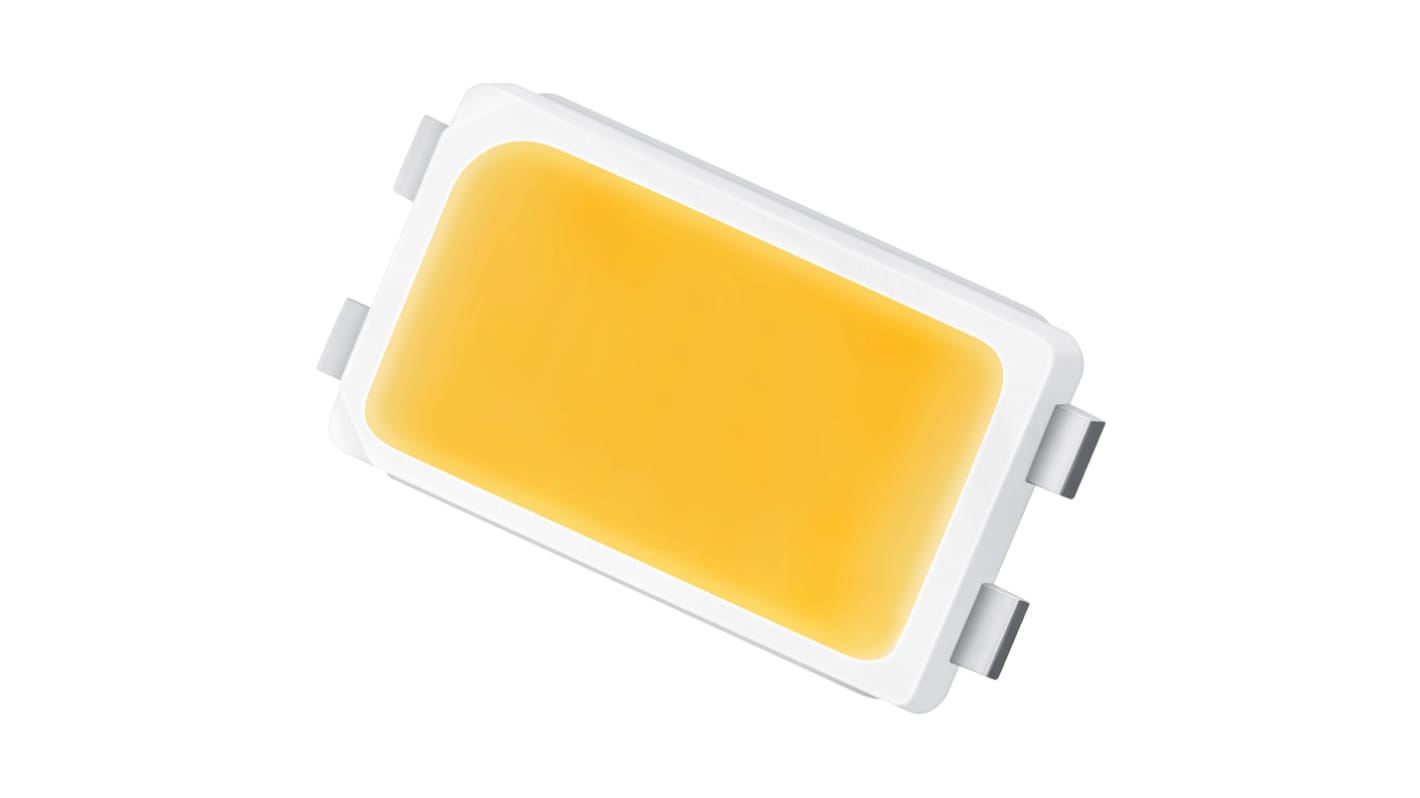

Samsung2.7 → 3.2 V White LED 5630 SMD, LM561B Plus SPMWHT541MP5WKTMS4
- RS-stocknr.:
- 162-4327
- Fabrikantnummer:
- SPMWHT541MP5WKTMS4
- Fabrikant:
- Samsung
Informatie over voorraden is momenteel niet toegankelijk
- RS-stocknr.:
- 162-4327
- Fabrikantnummer:
- SPMWHT541MP5WKTMS4
- Fabrikant:
- Samsung
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Samsung | |
| LED Colours | White | |
| Package Type | 5630 | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.7 → 3.2 V | |
| Number of Pins | 4 | |
| Viewing Angle | 120 ° | |
| Luminous Flux | 32 → 34 lm | |
| Lens Shape | Rectangular | |
| Colour Temperature | 4000K | |
| Dimensions | 5 x 3 x 0.7mm | |
| Forward Current | 180mA | |
| Series | LM561B Plus | |
| Alles selecteren | ||
|---|---|---|
Merk Samsung | ||
LED Colours White | ||
Package Type 5630 | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.7 → 3.2 V | ||
Number of Pins 4 | ||
Viewing Angle 120 ° | ||
Luminous Flux 32 → 34 lm | ||
Lens Shape Rectangular | ||
Colour Temperature 4000K | ||
Dimensions 5 x 3 x 0.7mm | ||
Forward Current 180mA | ||
Series LM561B Plus | ||
- Land van herkomst:
- CN
Samsung LM561B Plus Middle Power LEDs
High efficacy for distributed light
300 mW class middle power LED
Mold resin for high reliability
Standard form factor footprint: 5.6 x 3.0 mm
300 mW class middle power LED
Mold resin for high reliability
Standard form factor footprint: 5.6 x 3.0 mm
Visible Light LEDs, Samsung
