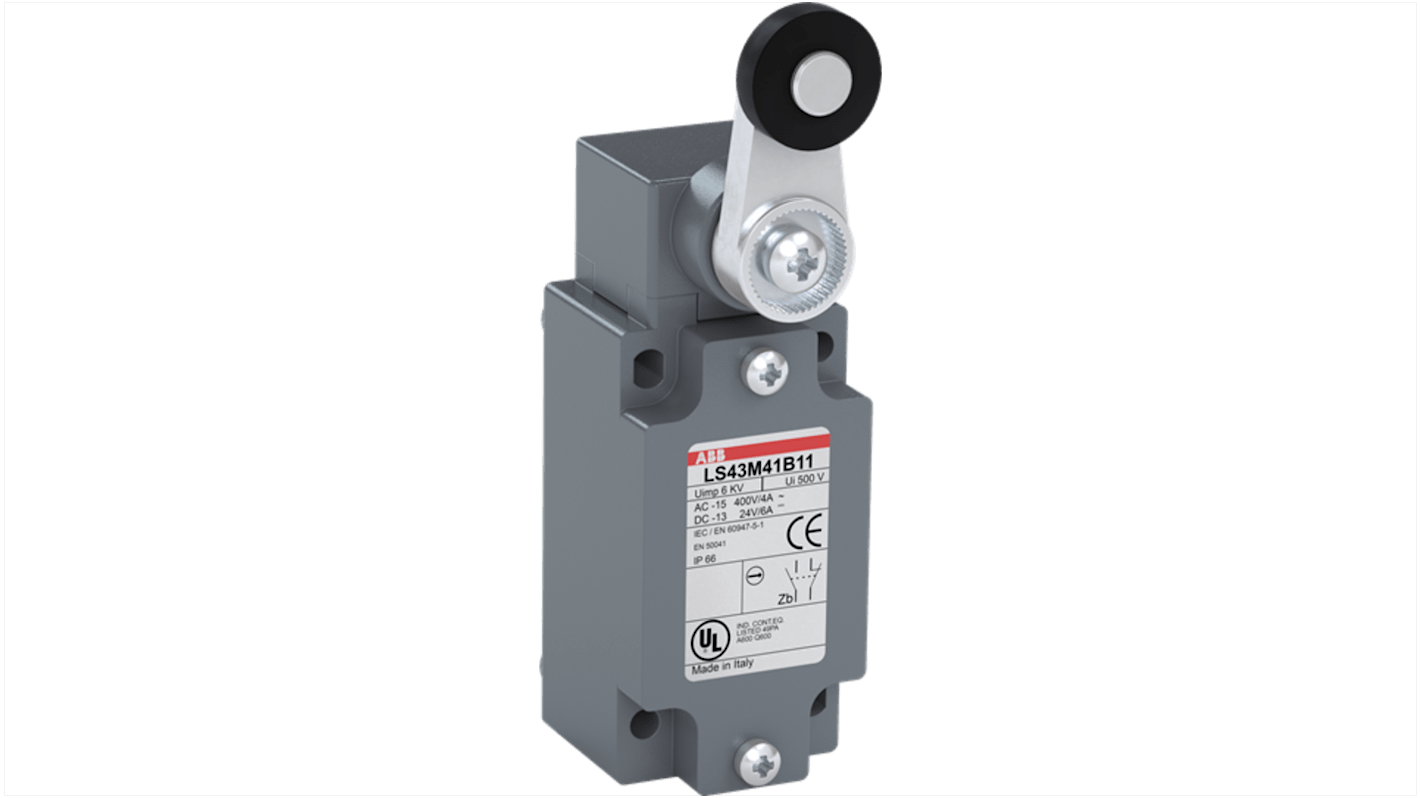

ABB Roller Limit Switch, IP66, Zinc Alloy Housing, 600V ac Max, 10A Max
- RS-stocknr.:
- 231-9058
- Fabrikantnummer:
- 1SBV011641R1211 LS43M41B11
- Fabrikant:
- ABB
1 op voorraad - levertijd is 1 werkdag(en).
Toegevoegd
Prijs 1 doos 1
€ 151,47
(excl. BTW)
€ 183,28
(incl. BTW)
| Box(es) | Per Doos |
| 1 + | € 151,47 |
- RS-stocknr.:
- 231-9058
- Fabrikantnummer:
- 1SBV011641R1211 LS43M41B11
- Fabrikant:
- ABB
Datasheets
Wetgeving en compliance
- Land van herkomst:
- IT
Productomschrijving
The ABB LS43M41B11 is a 40 mm wide, standard reinforced Limit Switch made of zinc alloy material (Zamak), with 4 mounting holes at the top and bottom, 1 ISO M20x1.5 cable entry on the bottom, plastic roller lever (Ø22 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts.
Ambient Air Temperature - Operation -25 ... +70 °C
Storage -30 ... +80 °C
Degree of Protection - IP66
Storage -30 ... +80 °C
Degree of Protection - IP66
Specificaties
Kenmerk | Waarde |
|---|---|
| Actuator Type | Roller |
| IP Rating | IP66 |
| Maximum Current | 10A |
| Housing Material | Zinc Alloy |
| Maximum AC Voltage | 600V |
