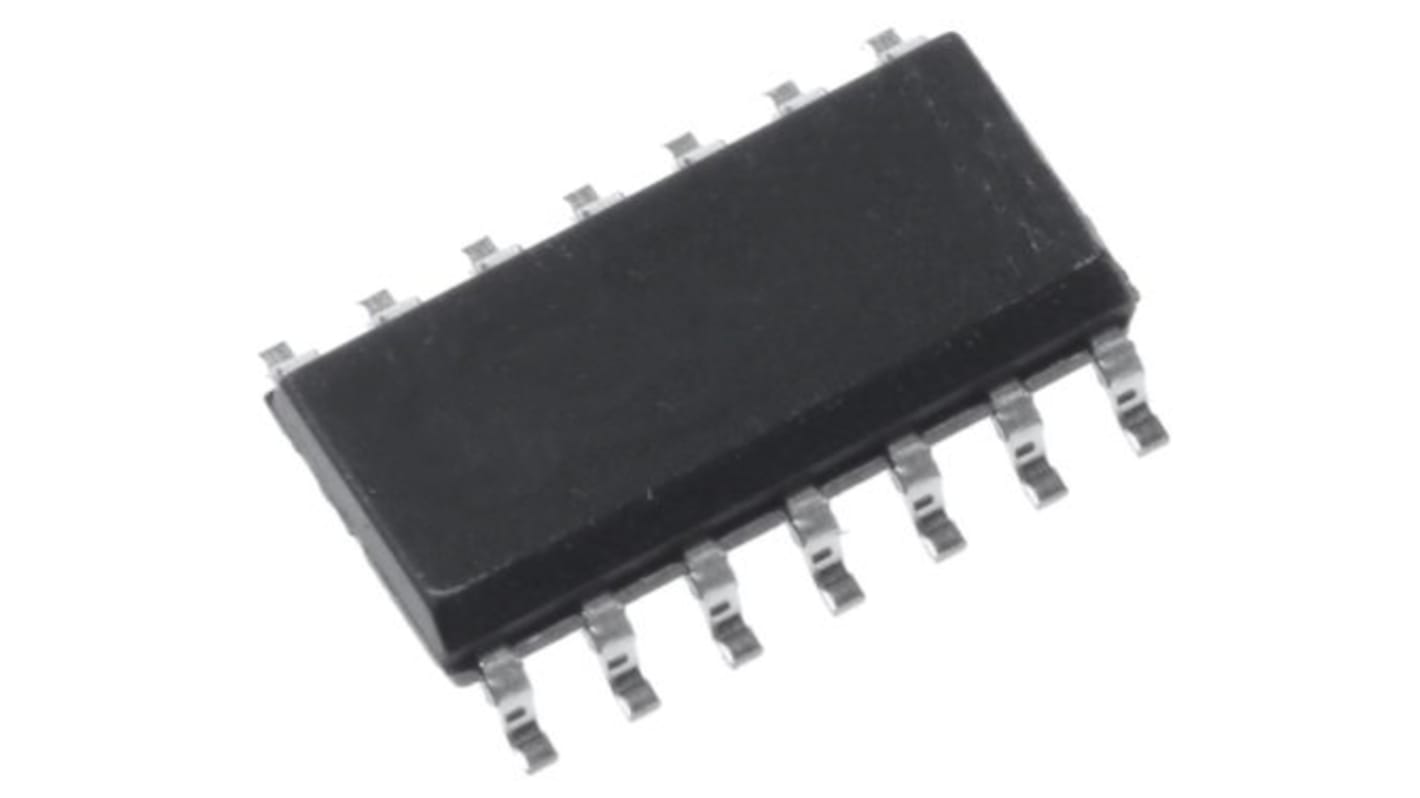

onsemi Inverter Logic Gate, 14-Pin SOIC
- RS-stocknr.:
- 186-7323
- Fabrikantnummer:
- MM74HCT04M
- Fabrikant:
- onsemi
Subtotaal (1 tube van 55 eenheden)*
€ 22,99
(excl. BTW)
€ 27,83
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Tijdelijk niet op voorraad
- Verzending 55 stuk(s) vanaf 06 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per tube* |
|---|---|---|
| 55 + | € 0,418 | € 22,99 |
*prijsindicatie
- RS-stocknr.:
- 186-7323
- Fabrikantnummer:
- MM74HCT04M
- Fabrikant:
- onsemi
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | onsemi | |
| Product Type | Logic Gate | |
| Logic Function | Inverter | |
| Mount Type | Surface | |
| Schmitt Trigger Input | No | |
| Package Type | SOIC | |
| Pin Count | 14 | |
| Logic Family | HCT | |
| Input Type | CMOS | |
| Maximum Propagation Delay Time @ CL | 30ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | 4.8mA | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.5mm | |
| Maximum Supply Voltage | 5.5V | |
| Series | 74HC | |
| Width | 4 mm | |
| Minimum Supply Voltage | 4.5V | |
| Standards/Approvals | No | |
| Length | 8.75mm | |
| Maximum Low Level Output Current | 4.8mA | |
| Automotive Standard | No | |
| Output Type | LSTTL | |
| Alles selecteren | ||
|---|---|---|
Merk onsemi | ||
Product Type Logic Gate | ||
Logic Function Inverter | ||
Mount Type Surface | ||
Schmitt Trigger Input No | ||
Package Type SOIC | ||
Pin Count 14 | ||
Logic Family HCT | ||
Input Type CMOS | ||
Maximum Propagation Delay Time @ CL 30ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current 4.8mA | ||
Maximum Operating Temperature 85°C | ||
Height 1.5mm | ||
Maximum Supply Voltage 5.5V | ||
Series 74HC | ||
Width 4 mm | ||
Minimum Supply Voltage 4.5V | ||
Standards/Approvals No | ||
Length 8.75mm | ||
Maximum Low Level Output Current 4.8mA | ||
Automotive Standard No | ||
Output Type LSTTL | ||
The MM74HCT04 is a logic function fabricated by using advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS - low quiescent power and wide power supply range. This device is input and output characteristic as well as pin-out compatible with standard 74LS logic families. The MM74HCT04, triple buffered, hex inverters, features low power dissipation and fast switching times. All inputs are protected from static discharge by internal diodes to VCC and ground. MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices. These parts are also plug-in replacements for LS-TTL devices and can be used to reduce power consumption in existing designs.
TTL, LS pin-out and threshold compatible
Fast switching: tPLH, tPHL=12 ns (typ)
Low power: 10 μW at DC, 3.7 mW at 5 MHz
High fanout: is greater than or equal to 10 LS loads
Inverting, triple buffered
Applications
This product is general usage and suitable for many different applications.
