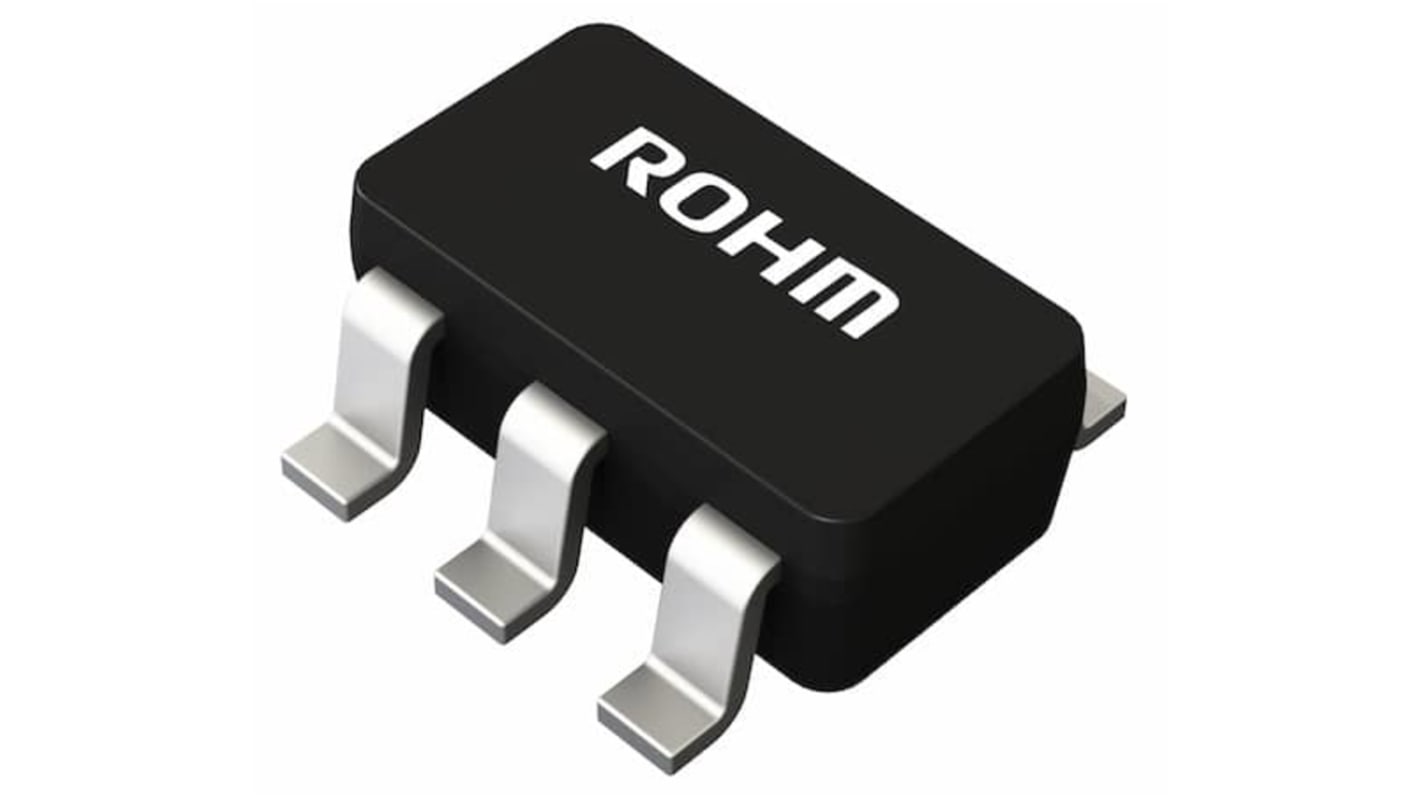

ROHM BD7LS97G-CTL 1-Input CMOS Schmitt Trigger Logic Gate
- RS-stocknr.:
- 255-7685
- Fabrikantnummer:
- BD7LS97G-CTL
- Fabrikant:
- ROHM
100 op voorraad - levertijd is 1 werkdag(en).
Toegevoegd
Prijs Elk (in een pakket van 25)
€ 0,452
(excl. BTW)
€ 0,547
(incl. BTW)
| Aantal stuks | Per stuk | Per pak* |
| 25 - 25 | € 0,452 | € 11,30 |
| 50 - 75 | € 0,443 | € 11,075 |
| 100 - 225 | € 0,348 | € 8,70 |
| 250 - 975 | € 0,341 | € 8,525 |
| 1000 + | € 0,226 | € 5,65 |
| *prijsindicatie | ||
- RS-stocknr.:
- 255-7685
- Fabrikantnummer:
- BD7LS97G-CTL
- Fabrikant:
- ROHM
Datasheets
Wetgeving en compliance
Productomschrijving
The ROHM Automotive configurable function gate and qualified for automotive applications. The 3-inputs are schmitt trigger inputs and it is possible to configure the Logical function by setting the input pins. This is designed for 1.65 V to 5.5 V power supply voltage operation. When it is power down, the output tolerant circuit protects the output circuit from the back flow current through the connected system.
AEC-Q100 qualified(note 1), 4000 V human-body model, 1000 V charged-device model
Low power consumption
5.5 V tolerant inputs
Output tolerant supports partial power down mode operation
Low power consumption
5.5 V tolerant inputs
Output tolerant supports partial power down mode operation
Specificaties
Kenmerk | Waarde |
|---|---|
| Logic Function | CMOS |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 1 |
| Schmitt Trigger Input | Yes |
