ALPHA1A/1M/SMAM/S/S/11 Siretta - 2G (GSM/GPRS), 3G (UTMS), ISM Band, WiFi Multi-Band Antenna, SMA

  • RS-stocknr. 124-8662
  • Fabrikantnummer ALPHA1A/1M/SMAM/S/S/11
  • Fabrikant Siretta
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: TW
Productomschrijving

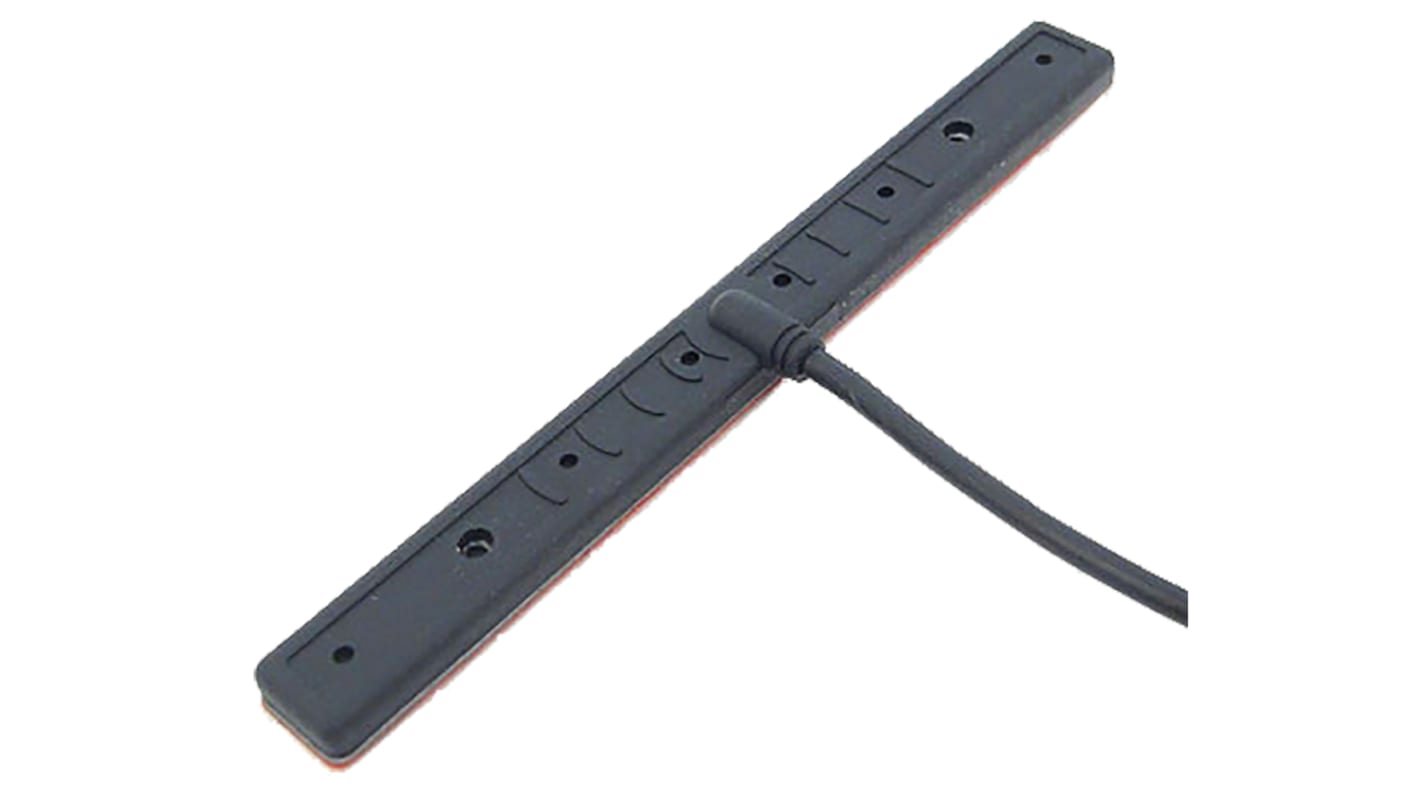

ALPHA 1A GSM/GPRS/3G/WiFi/ISM T-Bar Antenna, Siretta

The ALPHA 1A is a low profile, T-Bar antenna tuned to quad band GSM/GPRS/3G/WiFi/ISM frequencies. Measuring 104 x 10.8 x 4 mm, The ALPHA 1A is easily mounted onto most surfaces using its adhesive base. It achieves a peak gain of 3.8 dBi.

The Alpha 1A is supplied with a choice of RG174 coaxial cable lengths, all with an SMA male connector.

ALPHA1A/1M/SMAM/S/S/11 - 1 metre cable (RS 124-8662)
ALPHA1A/2.5M/SMAM/S/S/11 - 2.5 metre cable (RS 124-8664)

Operating Temperature: -20 to 80°C
Impedance: 50 Ω
Gain (peak): 3.8 dBi
VSWR: 2.0:1 max
Polarisation: Vertical / omnidirectional

Operating Frequencies
Quad Band GSM/GPRS & 2G: 950, 900, 1800, 1900MHz
3G/UMTS: 2100MHz
WiFi/Bluetooth/ZigBee: 2400 MHz
ISM: 868 MHz, 915 MHz

Dimensions
Length: 104 mm
Width: 10.8 mm
Height: 4 mm

Multi-band Antennas, Siretta

Specificaties
Kenmerk Waarde
Internal/External External
RF Protocols ISM Band, WiFi, 2G (GSM/GPRS), 3G (UTMS)
Supported Frequency Bands 850 (GSM/GPRS) MHz, 868 (ISM) MHz, 900 (GSM/GPRS) MHz, 915 (ISM) MHz, 1800 (GSM/GPRS) MHz, 1900 (GSM/GPRS) MHz, 2100 (3G) MHz, 2400 (WiFi) MHz
Antenna Physical Form T-Bar
Antenna Mounting Type Adhesive
Connector Type SMA
Includes Lead Yes
Gain 3.81dBi
Connector Gender Male
Antenna Directivity Omnidirectional
Lead Length 1m
Series ALPHA 1A
57 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
8,52
(excl. BTW)
10,31
(incl. BTW)
Aantal stuks
Per stuk
1 - 9
€ 8,52
10 +
€ 7,81
