Sipha 440N Magnetic Safety Switch, Plastic, 250 V ac, 300 V dc

Datasheets
Wetgeving en compliance
N.v.t.
Land van herkomst: GB
Productomschrijving

Sipha S4, Stainless Steel

The design of the Sipha S4 non-contact switch incorporates several magnetically sensitive elements which must be triggered in a particular sequence to operate correctly. The sensor is designed for use with its own actuator, helping prevent defeat by means of a simple magnet. With its moulded-in brackets and diminutive size this non-contact switch is extremely versatile and simple to install.

Non-contact actuation
Magnetic coded sensing
Must be operated with its own safety control unit

Standards

EN1088, EN292, EN60204-1

Approvals

UL, CSA

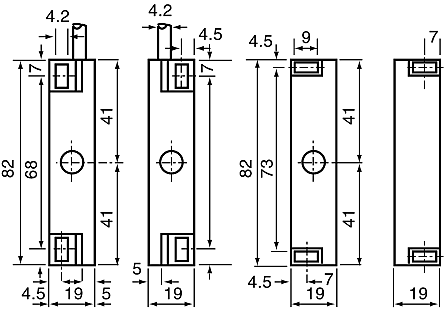

//media.rs-online.com/t_line/L378039-01.gif
//media.rs-online.com/t_line/L378039-14.gif
Specificaties
Kenmerk Waarde
Supply Voltage 250 V ac, 300 V dc
Housing Material Plastic
Range Sipha
Series 440N
IP Rating IP67
Actuator Included Yes
Sensor Principle Magnetic
Actuator Type Magnetic
Safety Category 3
Length 78mm
Depth 16mm
Dimensions 78 x 33.5 x 16 mm
Width 33.5mm
3 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
217,00
(excl. BTW)
262,57
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 217,00
