Signal Construct Green, Red Panel Mount Indicator, 24 → 28V, 8mm Mounting Hole Size
- RS-stocknr.:
- 369-3958
- Fabrikantnummer:
- SMLE08214
- Fabrikant:
- Signal Construct
Tijdelijk niet op voorraad – nieuwe voorraad verwacht op 18-06-2024, met een levertijd van 1 werkdag.
Toegevoegd
Prijs Per stuk
€ 13,69
(excl. BTW)
€ 16,56
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 - 14 | € 13,69 |
| 15 - 24 | € 12,33 |
| 25 - 49 | € 11,50 |
| 50 - 99 | € 10,42 |
| 100 + | € 9,58 |
Alternatieven
Dit product is momenteel niet beschikbaar. Hierbij onze aanbeveling voor mogelijke alternatieven.
- RS-stocknr.:
- 369-3958
- Fabrikantnummer:
- SMLE08214
- Fabrikant:
- Signal Construct
Wetgeving en compliance
- Land van herkomst:
- DE
Productomschrijving

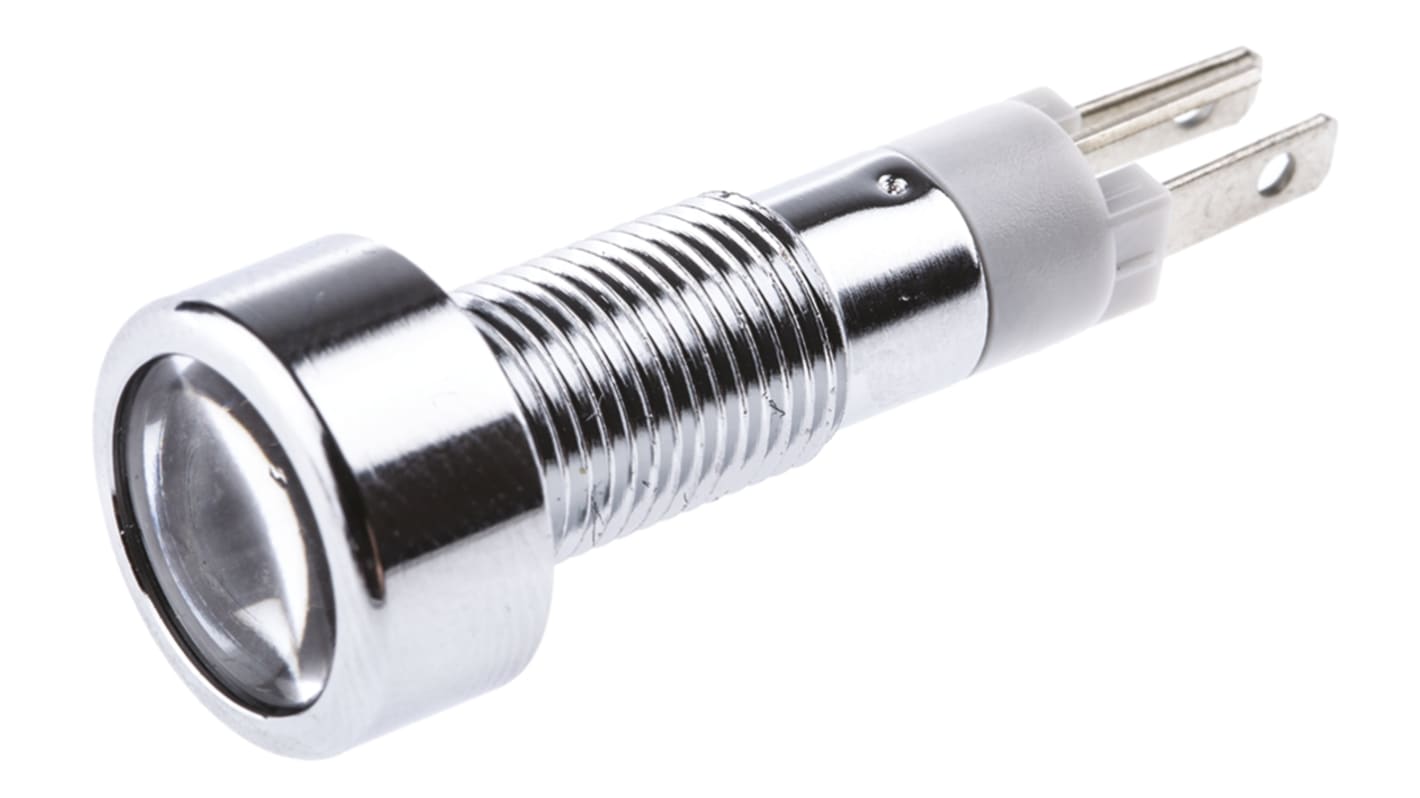

Signal Construct 8mm IP67 LED Panel Indicators, SMLD Series
From Signal Construct, this SMLD Series LED sits in a 13mm bezel of bright satin chrome plated brass housing, and features a 10mm glass optical lens that aids in magnifying light output. This LED Panel Indicator is sealed to IP67, which means it is dust and water resistant and so well suited to outdoor conditions.
Features and Benefits:
• 0.110in. (2.8mm) terminals (0.8mm thick)
• Bi-colour types have a pin connection for cathode, green is marked G next to terminals
• Solder Tab Terminals
• Bi-colour types have a pin connection for cathode, green is marked G next to terminals
• Solder Tab Terminals
Supplied with
O-ring, fixing nut and spring washer
Specificaties
Kenmerk | Waarde |
|---|---|
| Voltage Rating | 24 → 28V |
| Light Output Colour | Green, Red |
| Mounting Hole Size | 8mm |
| Lamp Type | LED |
| Bezel Style | Flush |
| Bezel Colour | Chrome |
| Current Rating | 10mA |
| Intensity | 200mcd |
| Length | 37.1mm |
