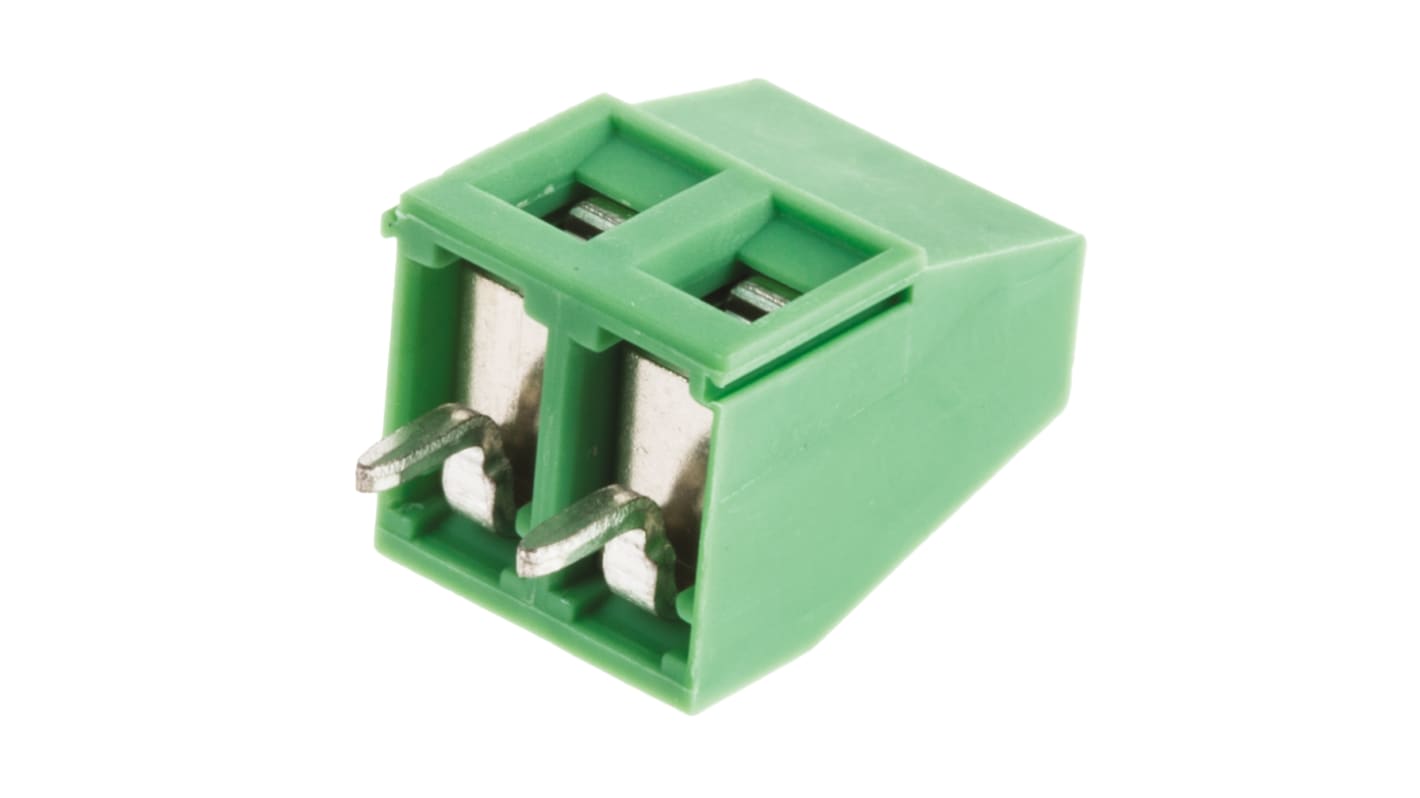

    Phoenix Contact COMBICON MKDS Series 5.08mm Pitch Straight, PCB Terminal Block, Through Hole, 2 Way

    RS-stocknr.:
    193-0564
    Fabrikantnummer:
    1715721
    Fabrikant:
    Phoenix Contact
    Phoenix Contact
    Bekijk alle PCB Terminal Blocks
    1135 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
    1290 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
    Add to Basket
    Aantal stuks

    Toegevoegd

    Prijs Each (In a Pack of 5)

    € 1,504

    (excl. BTW)

    € 1,82

    (incl. BTW)

    Aantal stuksPer stukPer pak*
    5 - 70€ 1,504€ 7,52
    75 - 245€ 1,372€ 6,86
    250 - 495€ 1,252€ 6,26
    500 - 995€ 1,156€ 5,78
    1000 +€ 1,066€ 5,33
    *prijsindicatie
    RS-stocknr.:
    193-0564
    Fabrikantnummer:
    1715721
    Fabrikant:
    Phoenix Contact
    Land van herkomst:
    DE

    Wetgeving en compliance

    Land van herkomst:
    DE

    Productomschrijving

    Phoenix Contact COMBICON MKDS 5.08mm PCB Terminal Blocks


    The MKDS PCB terminal blocks are through hole mount, have a 5.08 mm pitch, rising cage clamp screw terminals and side interlocking.

    Features and Benefits


    • Well-known connection principle allows worldwide use
    • Low temperature rise, thanks to maximum contact force
    • Allows connection of two conductors
    • Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
    • Latching on the side enables various numbers of positions to be combined
    • RoHS compliant

    Note

    Stock number 804-4991 has the postion number stamped on the housing and 883-2921 is bridged internally.

    Standards

    Connection in acc. with standard EN-VDE, V0 Flammability rating according to UL 94, DIN EN 60512-5-2:2003-01.

    Approvals

    CSA, cRUus, PCT, SEV, CCA,

    Approvals

    UL (E60425); CSA (LR13631)

    Approvals

    UL (E60425); CSA (LR13631)

    Specificaties

    KenmerkWaarde
    Number of Contacts2
    Pitch5.08mm
    Number of Rows1
    Mounting TypeThrough Hole
    Termination MethodScrew
    TypePCB Terminal Block
    Current Rating22A
    Body OrientationStraight
    ColourGreen
    Voltage Rating250 V
    SeriesCOMBICON MKDS
    CAD Drawing3D CAD Model
    MaterialPolyamide
    Depth13.8mm
    Length10.16mm
    Width9.8mm
