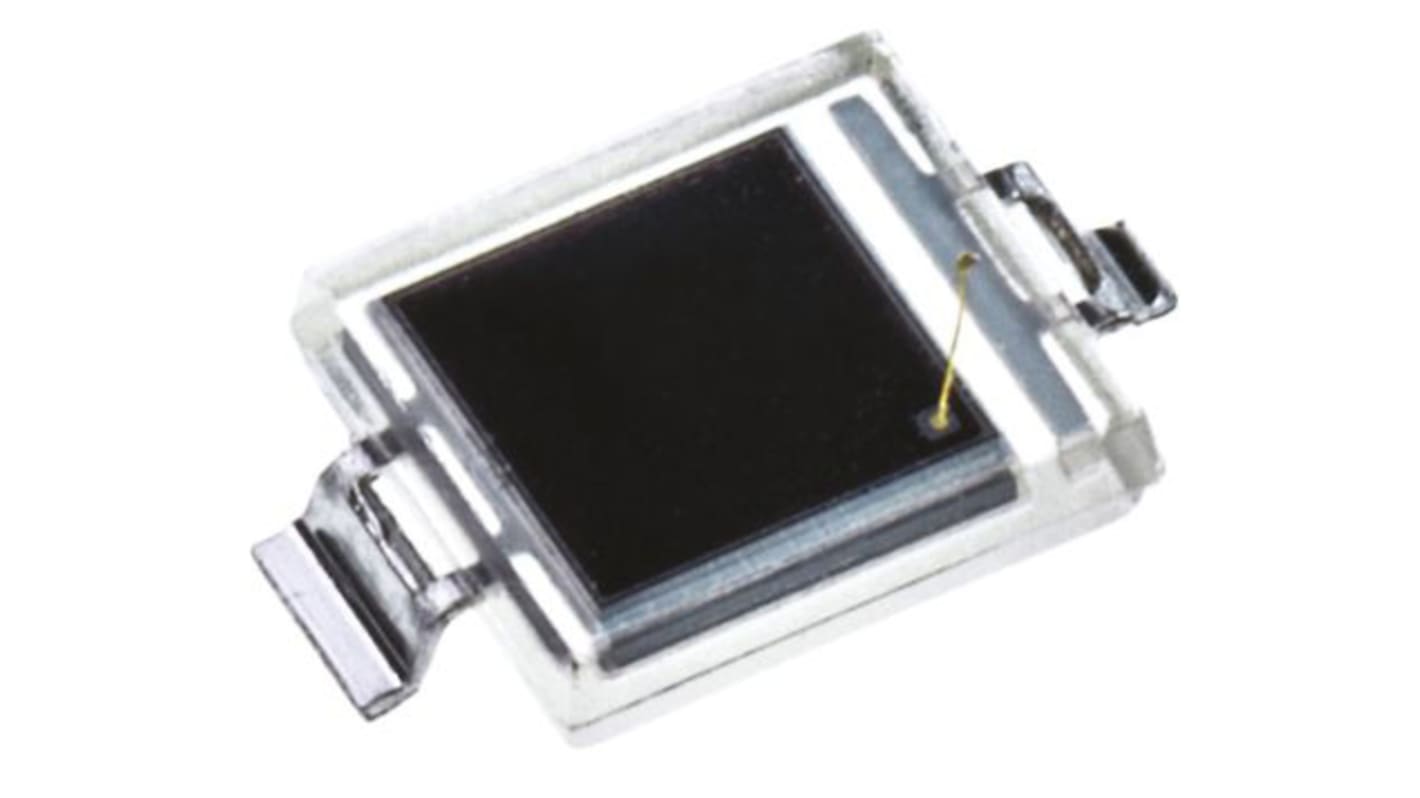

Osram Opto, BPW 34 S-Z IR Si Photodiode, Surface Mount Smart DIL
- RS-stocknr.:
- 912-8318
- Fabrikantnummer:
- BPW 34 S-Z
- Fabrikant:
- OSRAM Opto Semiconductors
3000 op voorraad - levertijd is 1 werkdag(en).
Toegevoegd
Prijs Elk (op een haspel van 1500)
€ 0,335
(excl. BTW)
€ 0,405
(incl. BTW)
| Aantal stuks | Per stuk | Per reel* |
| 1500 - 3000 | € 0,335 | € 502,50 |
| 4500 + | € 0,318 | € 477,00 |
| *prijsindicatie | ||
- RS-stocknr.:
- 912-8318
- Fabrikantnummer:
- BPW 34 S-Z
- Fabrikant:
- OSRAM Opto Semiconductors
Wetgeving en compliance
Productomschrijving
PIN Photodiode DIL Package
This family of IR photodiodes, from OSRAM Opto Semiconductors, are from the BPW 34 series. They come in surface mount (SMD) or through-hole DIL plastic packages with a radiant sensitive area of 2.65 x 2.65 mm². They BPW 34 IR photodiodes are designed for applications with wavelength range of up to 1100 nm. Other suitable applications include; photointerrupters, IR remote control and automotive sensors, headsets etc.
IR Photodiodes, OSRAM Opto Semiconductors
Specificaties
Kenmerk | Waarde |
|---|---|
| Spectrums Detected | Infrared |
| Wavelength of Peak Sensitivity | 850nm |
| Package Type | Smart DIL |
| Mounting Type | Surface Mount |
| Amplifier Function | No |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Typical Fall Time | 0.02µs |
| Length | 4.5mm |
| Width | 3.7mm |
| Height | 1.2mm |
| Typical Rise Time | 0.02µs |
| Short Circuit Current | 80µA |
| Polarity | Positive |
