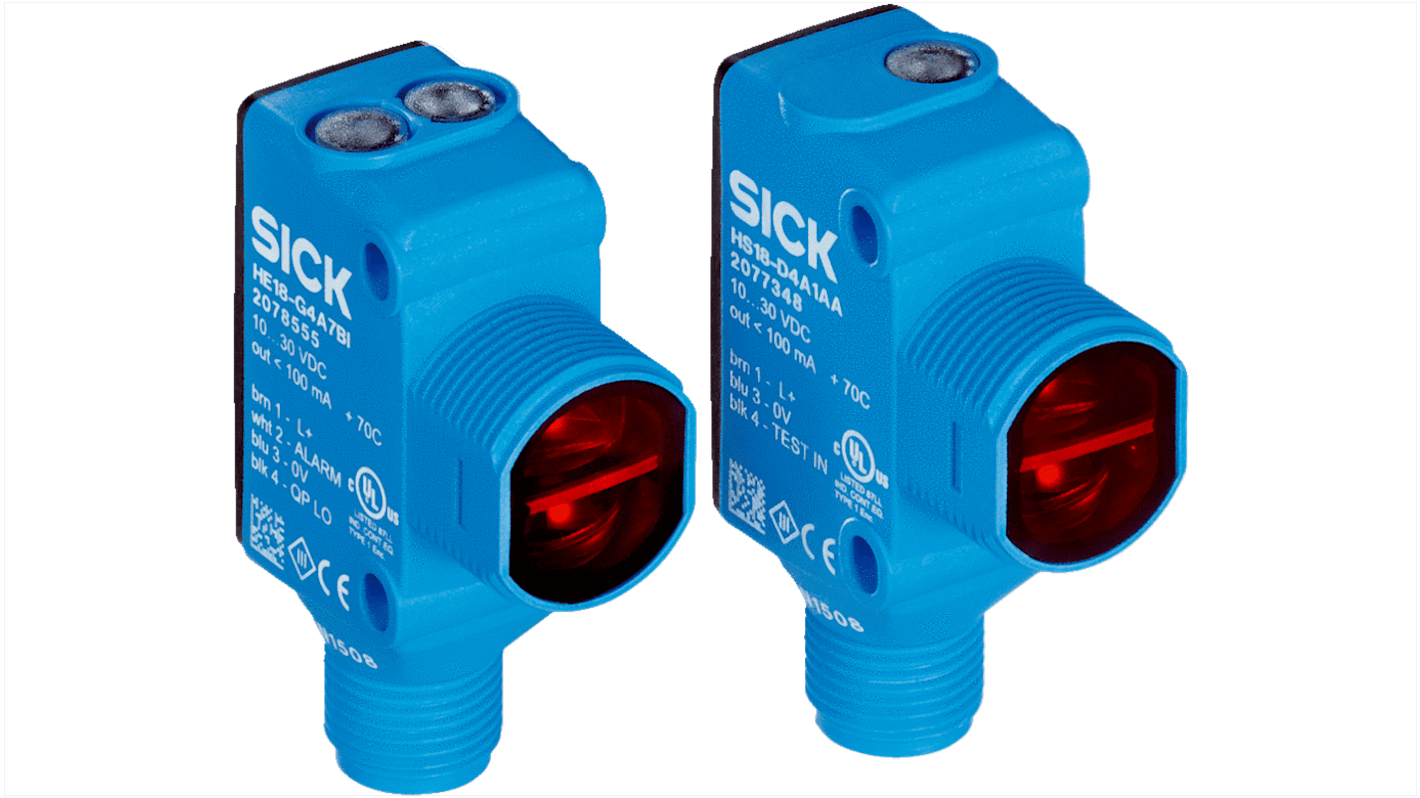

SICK Through Beam Photoelectric Sensor, Block Sensor

RS-stocknr.:: 266-8150
Fabrikantnummer:: HSE18-P4A1BA
Fabrikant:: SICK

Subtotaal (1 eenheid)*

€ 158,57

(excl. BTW)

€ 191,87

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 75,00

Op voorraad

Plus verzending 1 stuk(s) vanaf 16 maart 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 158,57

*prijsindicatie

RS-stocknr.:: 266-8150
Fabrikantnummer:: HSE18-P4A1BA
Fabrikant:: SICK

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	SICK
	Product Type	Photoelectric Sensor
	Sensor Style	Block
	Detection Type	Through Beam
	Output Type	PNP
	Terminal Type	M12 Male Connector
	Maximum DC Voltage	30V dc
	Interface Type	4-Pin Connector
	Light Source	LED
	Minimum Operating Temperature	-40°C
	IP Rating	IP67, IP69K
	Maximum Operating Temperature	70°C
	Maximum Current	100mA
	Response Time	0.5ms
	Standards/Approvals	CE, cULus, ECOLAB
	Hazardous Area Certification	No
	Housing Material	Plastic
	Series	SureSense
	Mount Type	Threaded
	Detection Range	20 m
	Thread Size	M18

	Alles selecteren
	Merk SICK
	Product Type Photoelectric Sensor
	Sensor Style Block
	Detection Type Through Beam
	Output Type PNP
	Terminal Type M12 Male Connector
	Maximum DC Voltage 30V dc
	Interface Type 4-Pin Connector
	Light Source LED
	Minimum Operating Temperature -40°C
	IP Rating IP67, IP69K
	Maximum Operating Temperature 70°C
	Maximum Current 100mA
	Response Time 0.5ms
	Standards/Approvals CE, cULus, ECOLAB
	Hazardous Area Certification No
	Housing Material Plastic
	Series SureSense
	Mount Type Threaded
	Detection Range 20 m
	Thread Size M18

Datasheet - HSE18-P4A1BA

Land van herkomst:: US

Overview

The SureSense family of photoelectric sensors provides reliable detection of virtually any object in any environment. This versatility allows detection of the very basic to most difficult objects including black, shiny, transparent, varying color and more. SureSense does this by providing best-in-class performance along with an extremely broad offering of sensing options, output types and advanced features.

An intuitive signal strength light bar makes installation and troubleshooting easier than ever. All this cutting edge technology is built into a VISTAL™ housing, which is 9 times stronger than ABS housings.

At a glance

The most flexible and complete portfolio of hybrid sensors

New and intuitive light strip

Best background suppression in the sector

Detection of transparent objects with Auto Adapt technology

VISTAL housing

Your Benefit

Solve the vast majority of a customer's applications with a single sensor family

Standardize mounting designs, accessories, set-up procedures and suppliers

Fast and simple alignment during installation

Continuous indication of signal strength

Reliably sense objects of varying colors and materials

Transparent object detection in tough environments with minimal need for additional cleaning

Reduce replacement costs and down time due to damages during installation or use

Applications

Machines with a wide variety of detection tasks

Detection of transparent objects

Detection of objects with a wide variety of colors

Applications with AC power supply

Detection of small objects and through small openings

OEM machine construction (e.g., packaging industry, consumer goods, wood processing, etc.)
