BALLUFF Retro-Reflective Photoelectric Sensor 25 3000 mm Detection Range PNP IP67 Block Style BOS

  • RS-stocknr. 902-6994
  • Fabrikantnummer BOS R020K-PS-PR11-00,2-S49
  • Fabrikant BALLUFF
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: HU
Productomschrijving

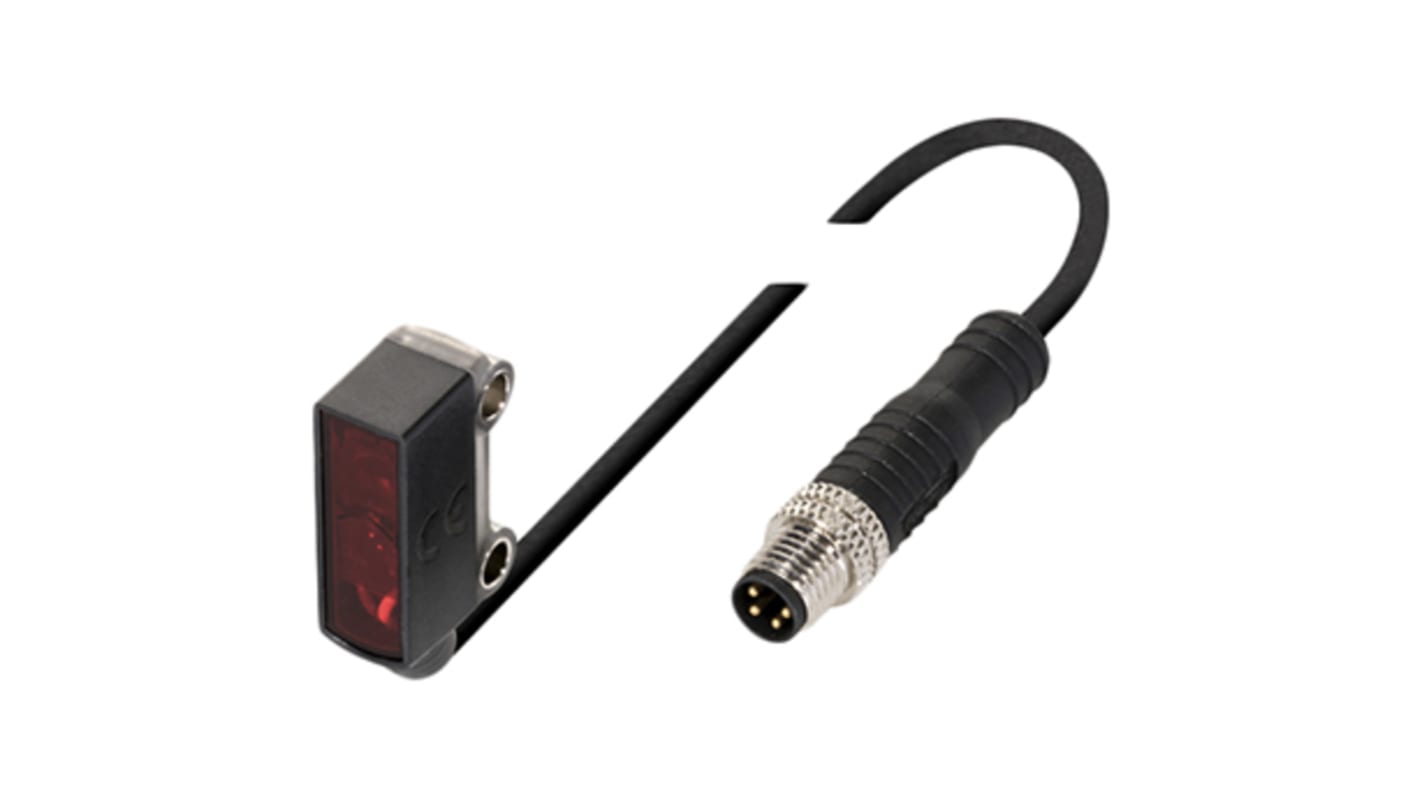

BOS Retro-Reflective Rectangular Sensors

The photoelectric sensors from BALLUFF BOS range use retro-reflective technology to detect an objects presence when the light beam between the sensor head and reflector is interrupted by an object. Retro-reflective photoelectric sensors are used in industrial environments for applications where accurate presence detection of metal or non-mental objects is essential.

Pre cabled or connector
Rectangular body
3 wire and 4 wire DC configuration
Short-circuit protected
Polarity reversal protected

Specificaties
Kenmerk Waarde
Sensor Style Block
Detection Type Retroreflective
Detection Range 25 3000 mm
Output Type PNP
Electrical Connection M8 Connector
Terminal Type Connector
Light Source LED
IP Rating IP67
Housing Material ABS
Series BOS R020K
Mounting Type Panel Mount
1 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
100,49
(excl. BTW)
121,59
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 100,49
