Siemens PLC I/O Module SIMATIC S7-1200 Digital
- RS-stocknr.:
- 746-5772
- Artikelnummer Distrelec:
- 301-24-482
- Fabrikantnummer:
- 6ES7222-1BD30-0XB0
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 78,89
(excl. BTW)
€ 95,46
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 78,89 |
*prijsindicatie
- RS-stocknr.:
- 746-5772
- Artikelnummer Distrelec:
- 301-24-482
- Fabrikantnummer:
- 6ES7222-1BD30-0XB0
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | PLC I/O Module | |
| Module Type | Digital I/O Module | |
| Input Type | Digital | |
| Maximum Operating Temperature | 70°C | |
| Series | SIMATIC S7-1200 | |
| Length | 62mm | |
| Depth | 21mm | |
| Standards/Approvals | FM, CSA, UL, CE, cULus | |
| Width | 38mm | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type PLC I/O Module | ||
Module Type Digital I/O Module | ||
Input Type Digital | ||
Maximum Operating Temperature 70°C | ||
Series SIMATIC S7-1200 | ||
Length 62mm | ||
Depth 21mm | ||
Standards/Approvals FM, CSA, UL, CE, cULus | ||
Width 38mm | ||
- Land van herkomst:
- CN

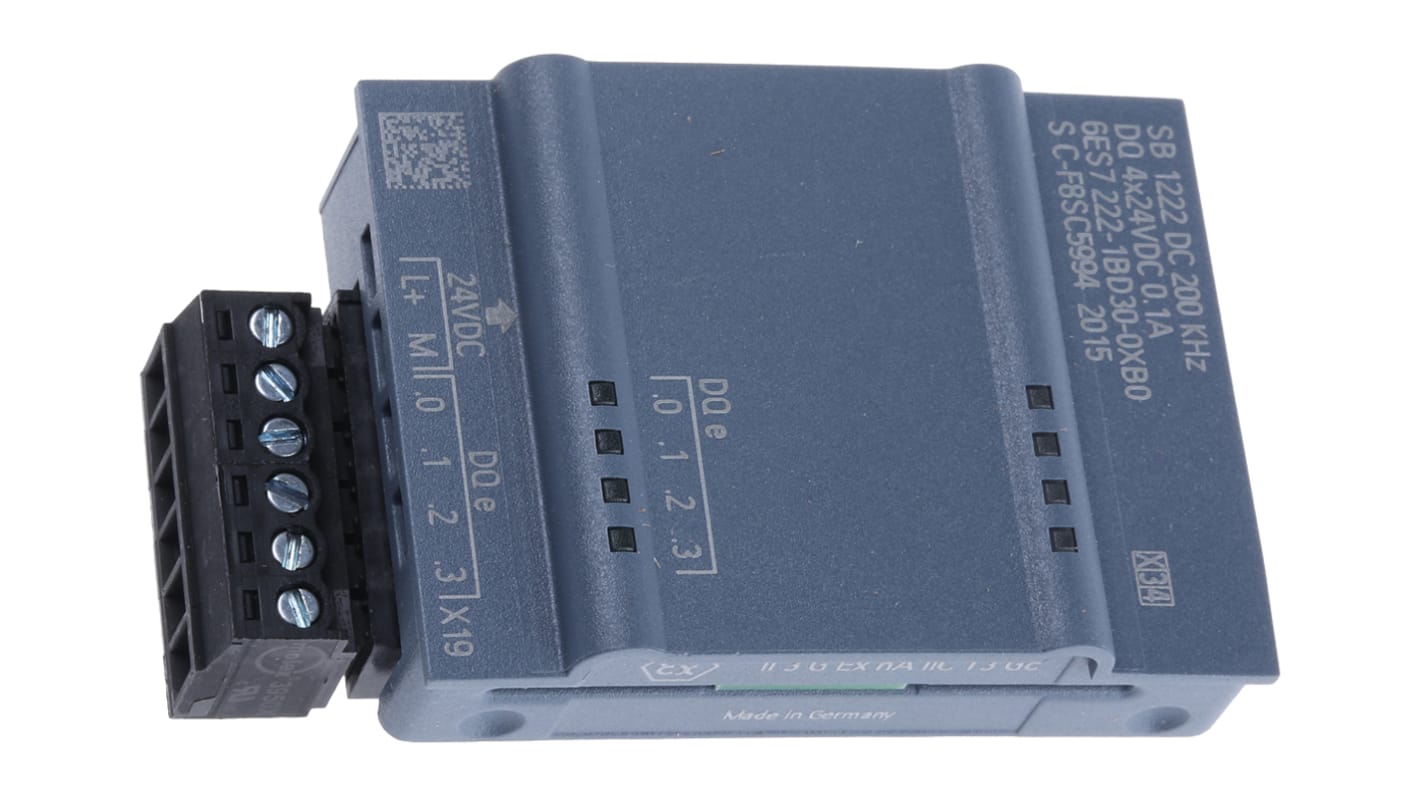

Siemens PLC I/O Module, 24V DC Voltage Rating, 50m Cable Length - SIMATIC Series - 6ES7222-1BD30-0XB0
Need a middleman to deliver reliable signals to and from your S7-1200 controller? Get this PLC I/O module from Siemens to collect and send information to your control equipment. Thanks to four digital MOSFET outputs, the unit manages multiple circuits to simplify your data acquisition and automated process setup. As it runs on a 24V DC voltage feed, you can use this component with standard power supplies. For versatility, it supports sinking and sourcing current configurations to handle incoming and outgoing commands. When installed horizontally, it performs without a glitch in a wide temperature range between -20°C and +60°C.
Features & Benefits
• Compact size of 38 (W) x 62 (H) x 21mm (D) takes up little room in your system
• Weighs just 38g, so it puts minimal strain on your installation
• LED status indicator for convenient troubleshooting
How do I connect this PLC I/O module?
Thanks to the attached terminal block, wiring is a piece of cake. Just insert and secure the wires of your control equipment.
What's the maximum cable length for shielded performance?
This unit delivers reliable, shielded performance over a cable length of up to 50m. This means you can easily reach distant equipment without worrying about signal interference.
