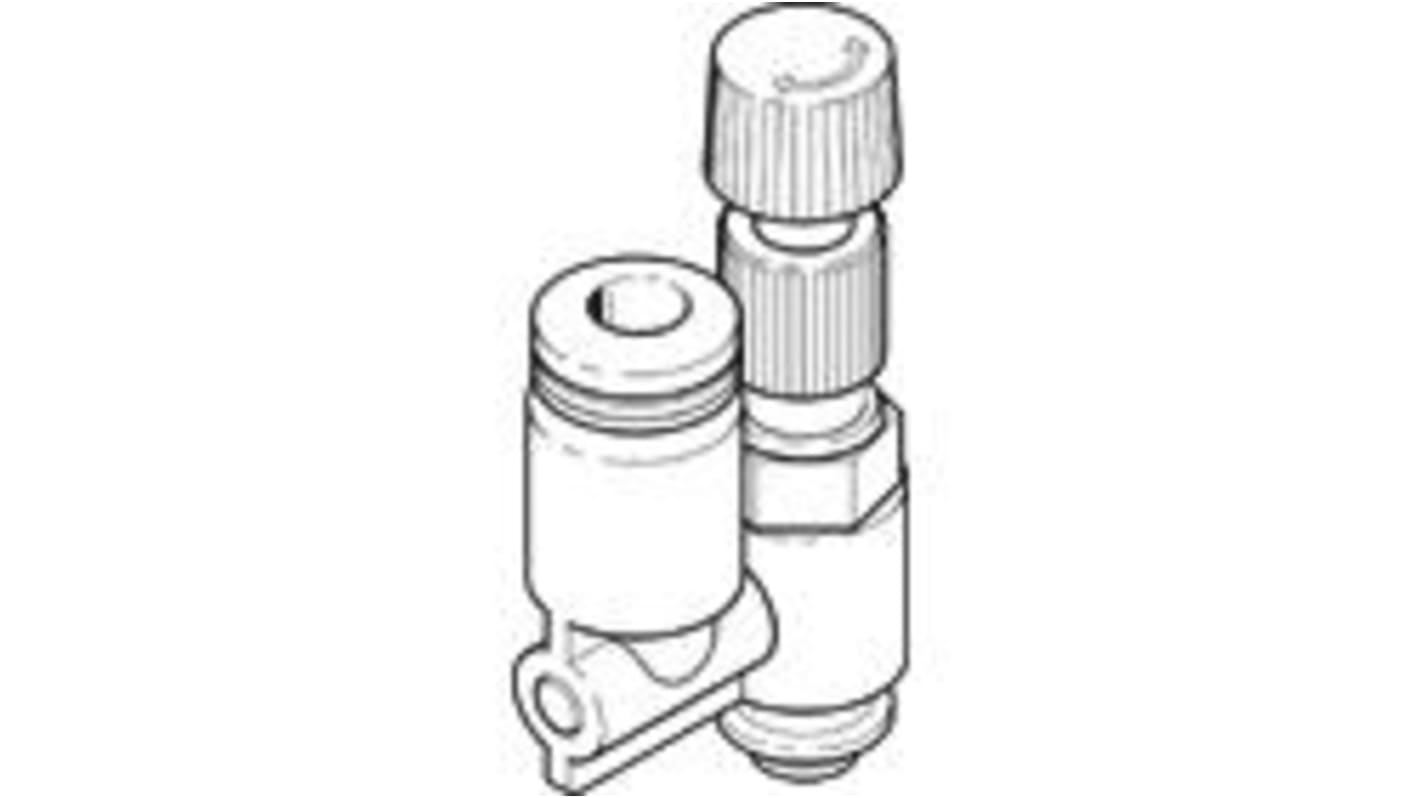

Festo LRL-1/8-QS-4 Series Flow Regulator, 153511, Inlet Male R 1/8 in G QS-4

Bekijk deze categorie
Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 35,12

(excl. BTW)

€ 42,50

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Voorradig bij de fabrikant
  • Klaar voor verzending vanaf 28 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks
Per stuk
1 - 4€ 35,12
5 - 9€ 33,72
10 +€ 32,93

*prijsindicatie

RS-stocknr.:
181-6152
Fabrikantnummer:
LRL-1/8-QS-4
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Product Type

Flow Regulator

Inlet Connection Size

1/8 in G

Outlet Connection Size

QS-4

Series

LRL-1/8-QS-4

Inlet Thread Standard

R

Inlet Port Gender

Male

Maximum Operating Pressure

9 bar

Minimum Operating Temperature

0°C

Material

Polybutylene Terephthalate Reinforced

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Hazardous Area Certification

NO

Minimum Operating Pressure

0bar

Model Number

153511

Land van herkomst:
JP

Festo Flow Regulator


The Festo LRL-1/8-QS-4 differential pressure regulator with R1/8 inlet port and push in 4mm tube outlet port is made of nickel plated brass. The housing is made of PBT-reinforced material. The differential pressure regulator maintains a manually adjusted differential pressure between the primary pressure at the screw-in thread and the output pressure at the QS push-in connector. Pressure applied at the QS push-in connector can be exhausted with no change in pressure at the thread connection end thanks to an integrated non-return valve.

Features and Benefits


• 360° assembly position

• Ambient temperature ranges between 0°C and 60°C

• Knurled screw with lock nut actuator lock

• Nickel plated brass threaded plug

• Outlet pressure ranges between 2bar and 6bar

• PBT-reinforced housing

• Pressure range between 2bar and 6bar

• PTFE threaded seal

• Push-in connector can be rotated 360°

• Push-in connector for tubing outer diameter 4mm to 12mm

• Screw-in thread M5, Rx, R1/4, Ry, R1/2

• Threaded and push-in connector regulator

• Threaded R1/8 inlet and push-in QS-4 outlet connection

Applications


• Aerospace

• Air compressors

• Gas stations

• Medical fields

• Mining industry

• Pressure regulation of compressed air

Certifications


• ISO8573-1:2010
