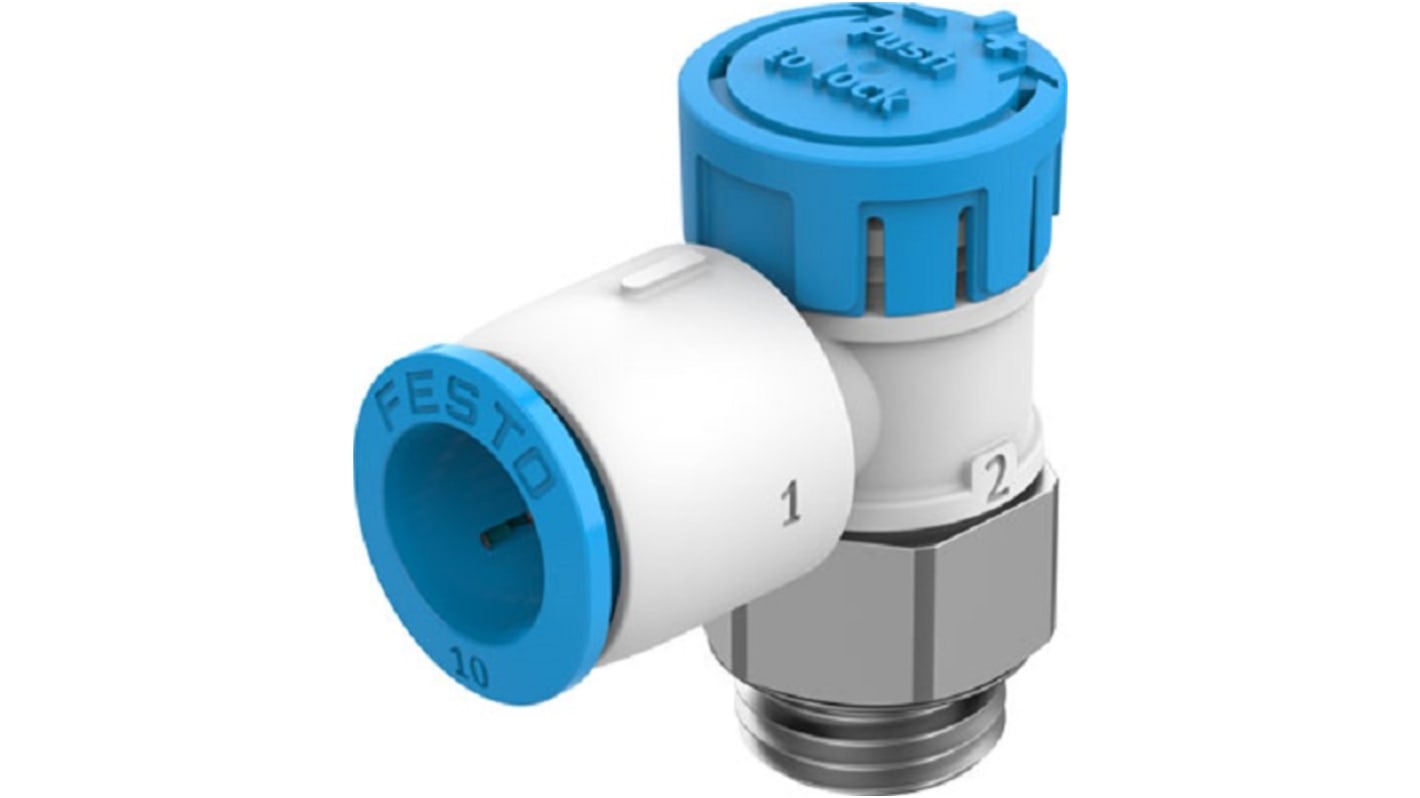

Festo VFOE Series Pneumatic Manual Control Valve, 8068730, Threaded 10 mm Threaded 1/4 in G

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 14,57

(excl. BTW)

€ 17,63

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks
Per stuk
1 +€ 14,57

*prijsindicatie

RS-stocknr.:
253-9250
Artikelnummer Distrelec:
302-82-848
Fabrikantnummer:
VFOE-LE-T-G14-Q10
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Product Type

Pneumatic Manual Control Valve

Inlet Connection Type

Threaded

Outlet Connection Type

Threaded

Inlet Connection Size

10 mm

Outlet Connection Size

1/4 in G

Series

VFOE

Maximum Operating Pressure

10 bar

Minimum Operating Temperature

-10°C

Material

Polybutylene Terephthalate

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Minimum Operating Pressure

10bar

Hazardous Area Certification

ATEX

Model Number

8068730

Land van herkomst:
IN

Festo Pneumatic Manual Control Valve, 16g Weight, 500L/min Standard Nominal Flow Rate - VFOE-LE-T-G14-Q10


Grasping for greater control of the compressed air in your setup? Choose this pneumatic manual control valve from Festo and take power into your own hands. Its rotary knob removes reliance on automated technology and allows you to easily move the actuator to direct the one-way flow of exhaust air. When you've selected your setting, the knob locks in place so you can go about your business. Installation is straightforward, thanks to the screw-in mounting style that needs no specialist tools. At only 16g, this item is a lightweight choice that won't place excess strain on your equipment.

Features & Benefits


• Broad operating temperature range between -10°C and +60°C for use in harsh industrial conditions

• NBR static seals are corrosion-resistant to prevent leaks

• PBT housing is resistant to impact and wear for a long service life

• Wide operating pressure range of 0.2 to 10 bar means it's a versatile choice

Applications


• Chemical manufacturing

• Food and beverage industry

• Glass fabrication

What media can I use with this device?


You can use non-lubricated and lubricated compressed air with this device, making it suitable for applications such as pharmaceutical production and power generation.
