RS PRO Pneumatic Guided Cylinder - 20 mm Bore, SGM Series, 200 mm Double Acting Acting

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 315,42

(excl. BTW)

€ 381,66

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 2 stuk(s) klaar voor verzending
  • 1 stuk(s) klaar voor verzending vanaf een andere locatie
  • Plus verzending 10 stuk(s) vanaf 14 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 315,42

*prijsindicatie

RS-stocknr.:
235-1257
Fabrikant:
RS PRO
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

RS PRO

Product Type

Pneumatic Guided Cylinder

Bore Size

20mm

Series

SGM

Action Type

Double Acting

Maximum Operating Pressure

10 bar

Cushioning Type

Rubber

Rod Type

Triple

Minimum Operating Temperature

-20°C

Guide Type

Slide Bearing

Piston Rod Thread Standard

No

Piston Rod Thread Size

1/8 in G

Maximum Operating Temperature

80°C

Standards/Approvals

No

Height

30mm

Width

81mm

Weight

2320g

Stroke Length

200mm

Length

253mm

Land van herkomst:
CN

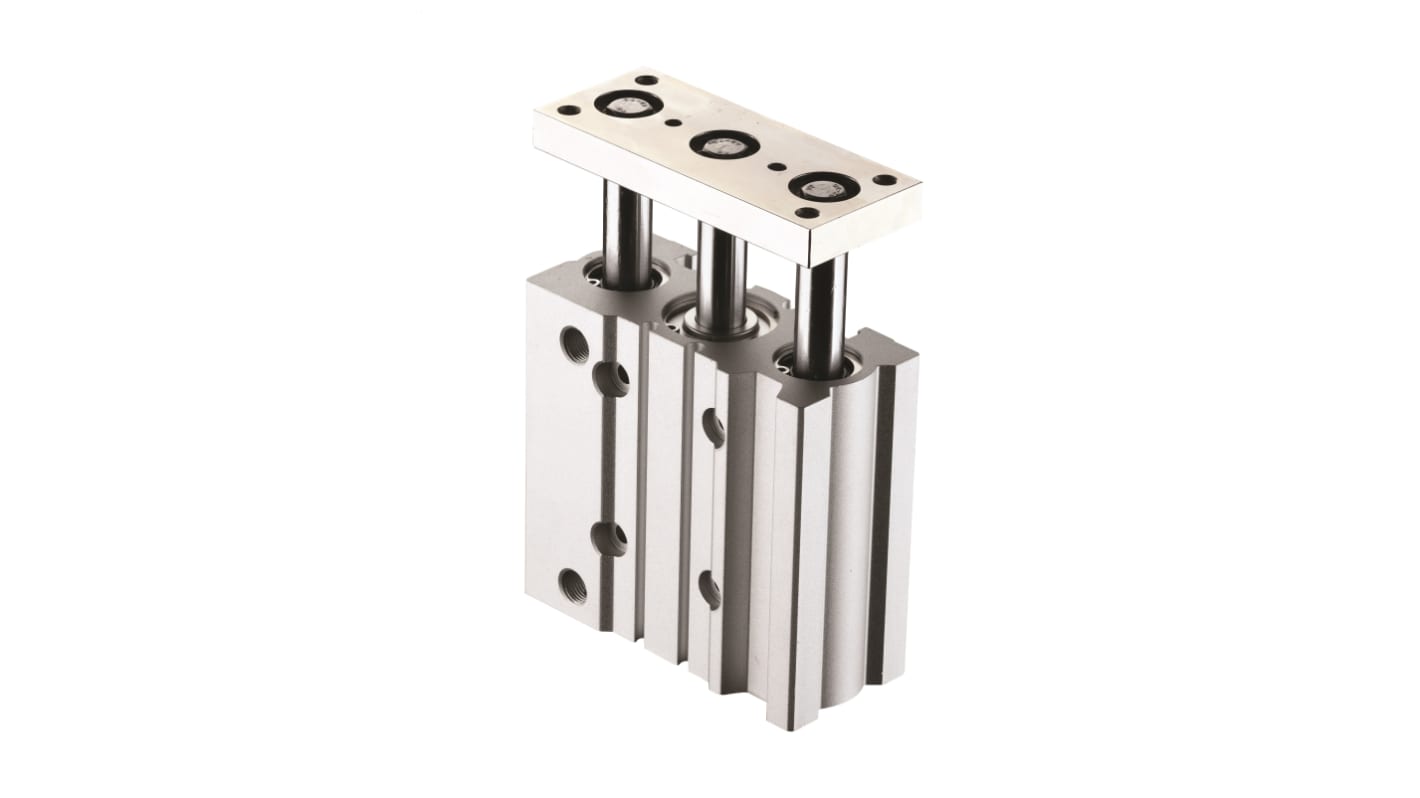

RS PRO Pneumatic Guided Cylinder 20mm Bore, 200mm Stroke, SGM Series, Double Acting


These RS PRO pneumatic rod guided cylinders are double acting drive and have magnetic positioning. Designed for heavy duty use with a strong resistance to side load forces and has several mounting points which gives options for convenient installation.

The RS PRO SGM range of triple rod guided cylinders have rubber cushioning plates which helps to reduce noise during operation.

Features and Benefits


  • Triple rod cylinder

  • Heavy duty

  • Guided cylinder with slide bearing

  • Strong resistance to side load forces

  • Operates in clean air medium

  • A number of mounting points for convenient installation

    Applications


    RS PRO pneumatic cylinders are used during motion to keep loads balanced, they are often found in conveyor systems where side loads move upwards and downwards on conveyor belts. Common applications also include manufacturing, factory automation systems and many more.

    Why RS PRO?


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

    they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
