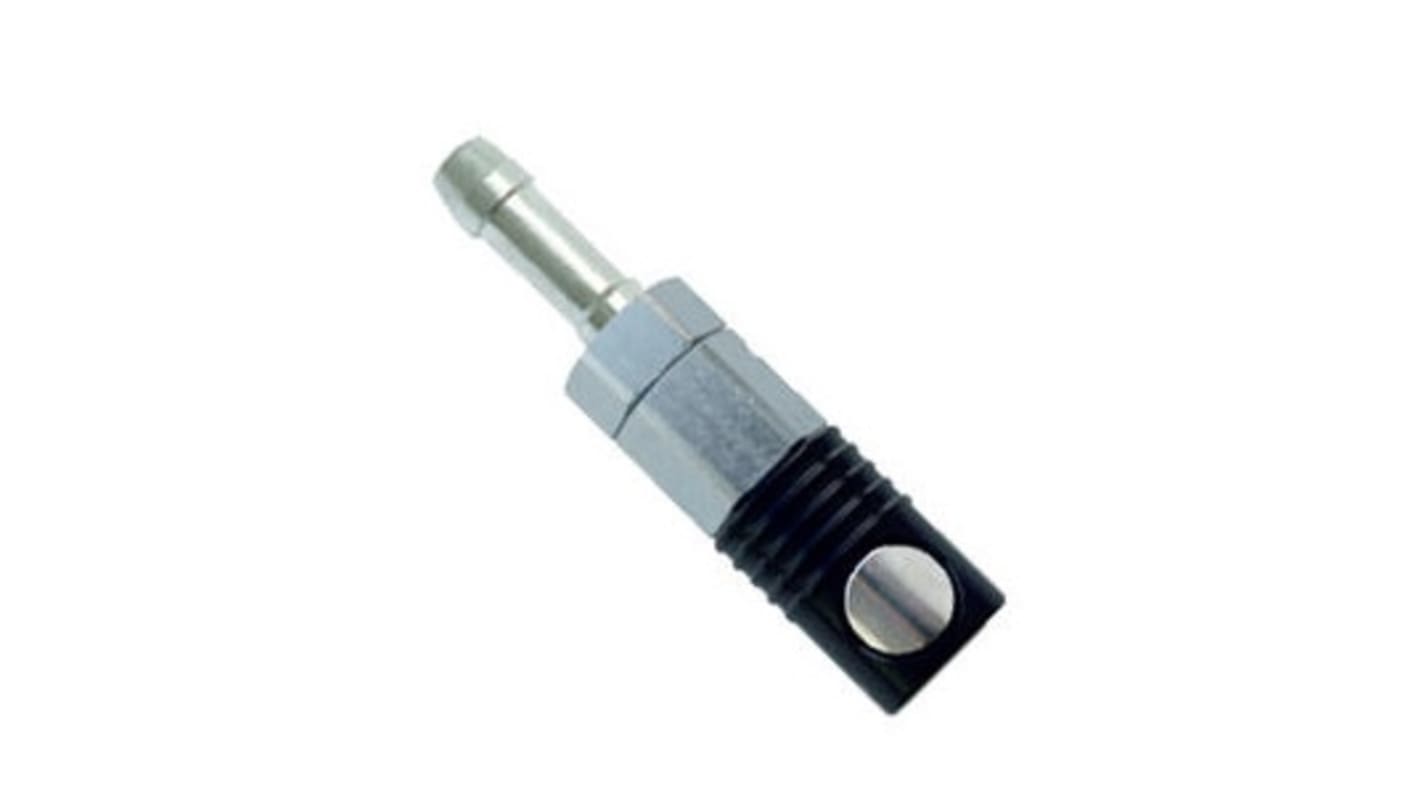

Legris Nickel Plated Brass, Anodised Aluminium Pneumatic Quick Connect Coupling, 9 mm Male/Female
- RS-stocknr.:
- 283-1260
- Fabrikantnummer:
- 18KPTF09APX
- Fabrikant:
- Legris
Subtotaal (1 eenheid)*
€ 36,95
(excl. BTW)
€ 44,71
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 31 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 36,95 |
*prijsindicatie
- RS-stocknr.:
- 283-1260
- Fabrikantnummer:
- 18KPTF09APX
- Fabrikant:
- Legris
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Legris | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Thread Size | 9 mm | |
| Series | 18 | |
| Material | Nickel Plated Brass, Anodised Aluminium | |
| Thread Gender | Male/Female | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Pressure | 12 bar | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | DIN EN 983, ISO4414, ISO 6150 C | |
| Finish | Anodised Aluminium, Nickel Plated | |
| Alles selecteren | ||
|---|---|---|
Merk Legris | ||
Product Type Pneumatic Quick Connect Coupling | ||
Thread Size 9 mm | ||
Series 18 | ||
Material Nickel Plated Brass, Anodised Aluminium | ||
Thread Gender Male/Female | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Pressure 12 bar | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals DIN EN 983, ISO4414, ISO 6150 C | ||
Finish Anodised Aluminium, Nickel Plated | ||
- Land van herkomst:
- TR
The Legris Safety Quick Coupling Series KP is a safety coupling with pushing button integrating self venting system according to ISO 6150 B, ISO 6150 C and EURO. The self venting takes place during disconnection in 2 steps, no risk of pressurized hoses being tossed around. When the pushing button is pressed one time, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time.
No whiplash effect
Easy to connect and disconnect
Compliance to ISO 4414 standard
