- RS-stocknr.:
- 667-1780
- Fabrikant:
- RS PRO
8 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
84 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Per stuk
€ 18,92
(excl. BTW)
€ 22,89
(incl. BTW)
Aantal stuks | Per stuk |
1 - 4 | € 18,92 |
5 - 9 | € 18,33 |
10 + | € 17,77 |
- RS-stocknr.:
- 667-1780
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en compliance
- Land van herkomst:
- TR
Productomschrijving

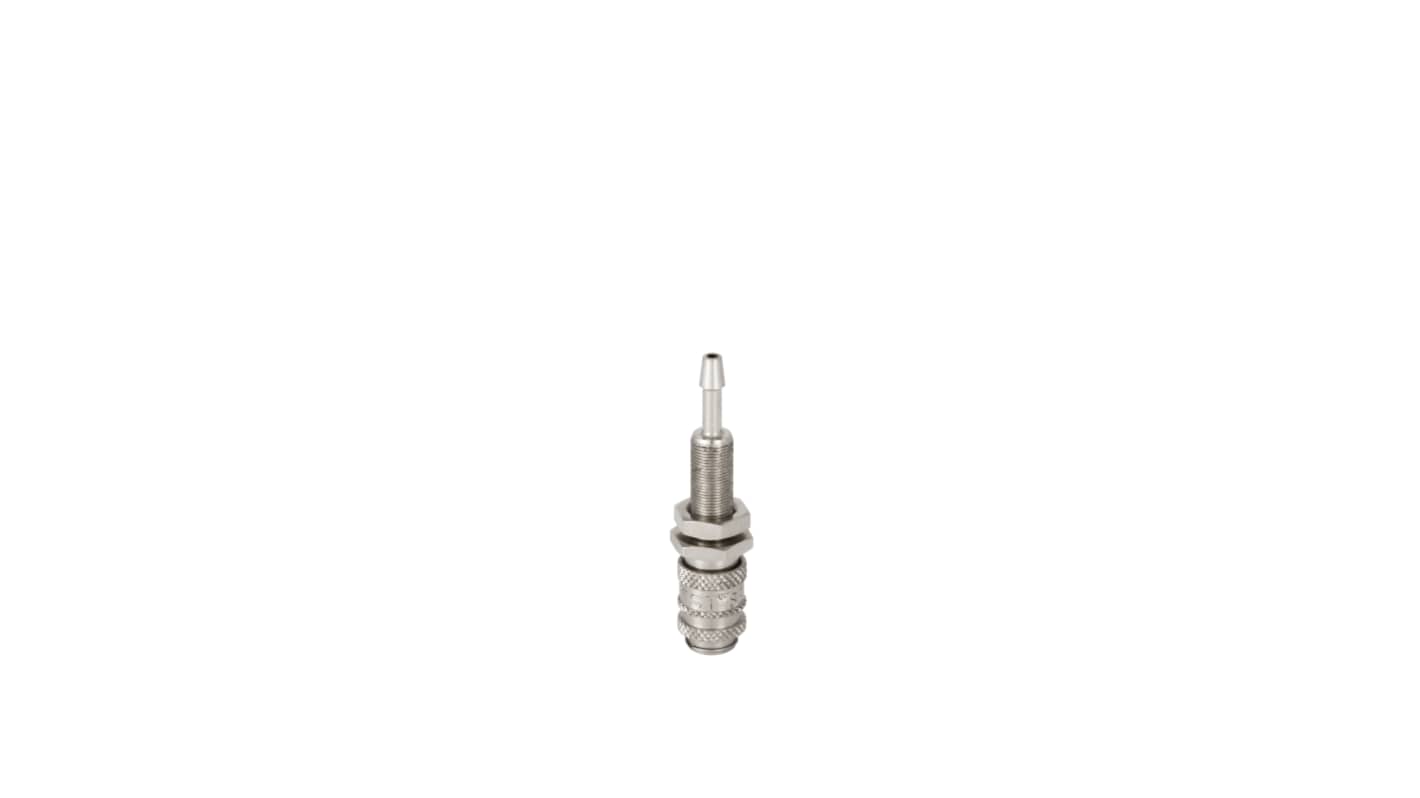

Series 20 Connectors
Series 20 Connectors
Compact pattern couplings suited to dental, medical, instrumentation and laboratory applications and in any area where space is restricted. Manifold and panel mountable. Maximum operating pressure is 35 bar and operating temperature range is -20°C to +100°C. All couplings are of the single shut-off type and all allow one handed operation. Interchangeable with Rectus Series 20.
Specificaties
Kenmerk | Waarde |
---|---|
Threaded Connection | Metric M7 Male |
Coupling Gender | Male |
Connection Standard | Rectus 20, Rectus 91, Walther 06-003 |
Manufacturer Series | 20 |
Connection Type | Hose Barb |
Hose Barb Connection | 4mm |
Material | Brass |
Thread Gender | Male |
Thread Standard | Metric |
Maximum Operating Pressure | 35bar |
Finish | Nickel Plated |
Seal Material | Nitrile Rubber |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +100°C |
