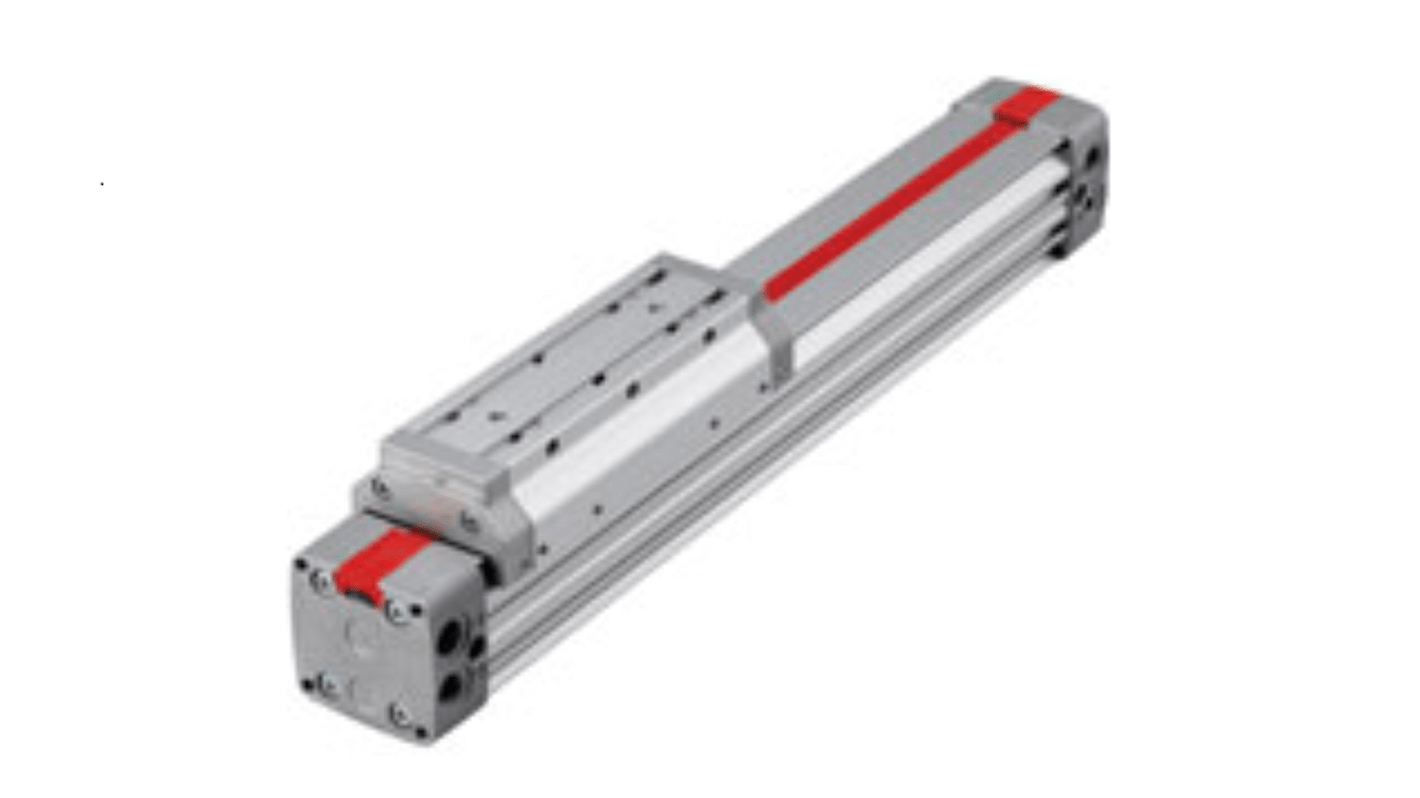

Norgren Double Acting Acting Rodless Actuator 40mm Bore 2000 mm

RS-stocknr.:: 220-3769
Fabrikantnummer:: M/146140/M/2000
Fabrikant:: Norgren

Norgren Double Acting Acting Rodless Actuator 40mm Bore 2000 mm

Subtotaal (1 eenheid)*

€ 1.616,14

(excl. BTW)

€ 1.955,53

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Tijdelijk niet op voorraad

Verzending vanaf 12 oktober 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 1.616,14

*prijsindicatie

RS-stocknr.:: 220-3769
Fabrikantnummer:: M/146140/M/2000
Fabrikant:: Norgren

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Norgren
	Product Type	Rodless Actuator
	Bore Diameter	40mm
	Connection Thread Standard	G
	Stroke Length	2000mm
	Series	M/146100
	Action Type	Double Acting
	Maximum Operating Pressure	8 bar
	Body Material	Aluminium
	Cushioning Type	Pneumatic Adjustable
	Port Gender	Female
	Minimum Operating Temperature	-30°C
	Guide Type	External Guide
	Maximum Operating Temperature	80°C
	Height	97.5mm
	Standards/Approvals	ATEX
	Length	300mm
	Width	79mm
	Port Thread Size	1/4 in G

	Alles selecteren
	Merk Norgren
	Product Type Rodless Actuator
	Bore Diameter 40mm
	Connection Thread Standard G
	Stroke Length 2000mm
	Series M/146100
	Action Type Double Acting
	Maximum Operating Pressure 8 bar
	Body Material Aluminium
	Cushioning Type Pneumatic Adjustable
	Port Gender Female
	Minimum Operating Temperature -30°C
	Guide Type External Guide
	Maximum Operating Temperature 80°C
	Height 97.5mm
	Standards/Approvals ATEX
	Length 300mm
	Width 79mm
	Port Thread Size 1/4 in G

Vrijgesteld

Land van herkomst:: DE

IMI Norgren Rodless Actuator, 8 Bar Operating Pressure Maximum, 50mm Cushion Length - Lintra Series - M/146140/M/2000

Need a quick and easy way to extend the reach of your equipment? Add this rodless actuator from IMI Norgren to your setup. It shuffles heavy forces around 754N side to side up to 2 metres, making it ideal for manufacturing, processing and packaging systems. Thanks to the doubled-up power of the PUR and NBR seals, you can say goodbye to debris and hello to smooth operation. Universal guiding bridge grooves make mounting this unit a breeze. Rest assured, this hardworking component only consumes 0.088l/cm to make efficient use of available media.

Features & Benefits

• Standard G1/4 ports for wide compatibility with existing systems

• Works in extreme temperatures from -30° to +80°C to suit demanding environments

• Centre support mounting offers reliable stability in long-stroke operations

Applications

• Food and drinks sector

• Water treatment industry

• Manufacturing facilities

• Packaging systems

What's the difference between a rod actuator and a rodless actuator like this one?

Rod actuators extend a piston outside their bodies to push or pull loads. Rodless options carry loads on their carriages. You'd choose a rodless actuator when you need longer stroke lengths and higher precision, making them typical in processing and manufacturing settings.
