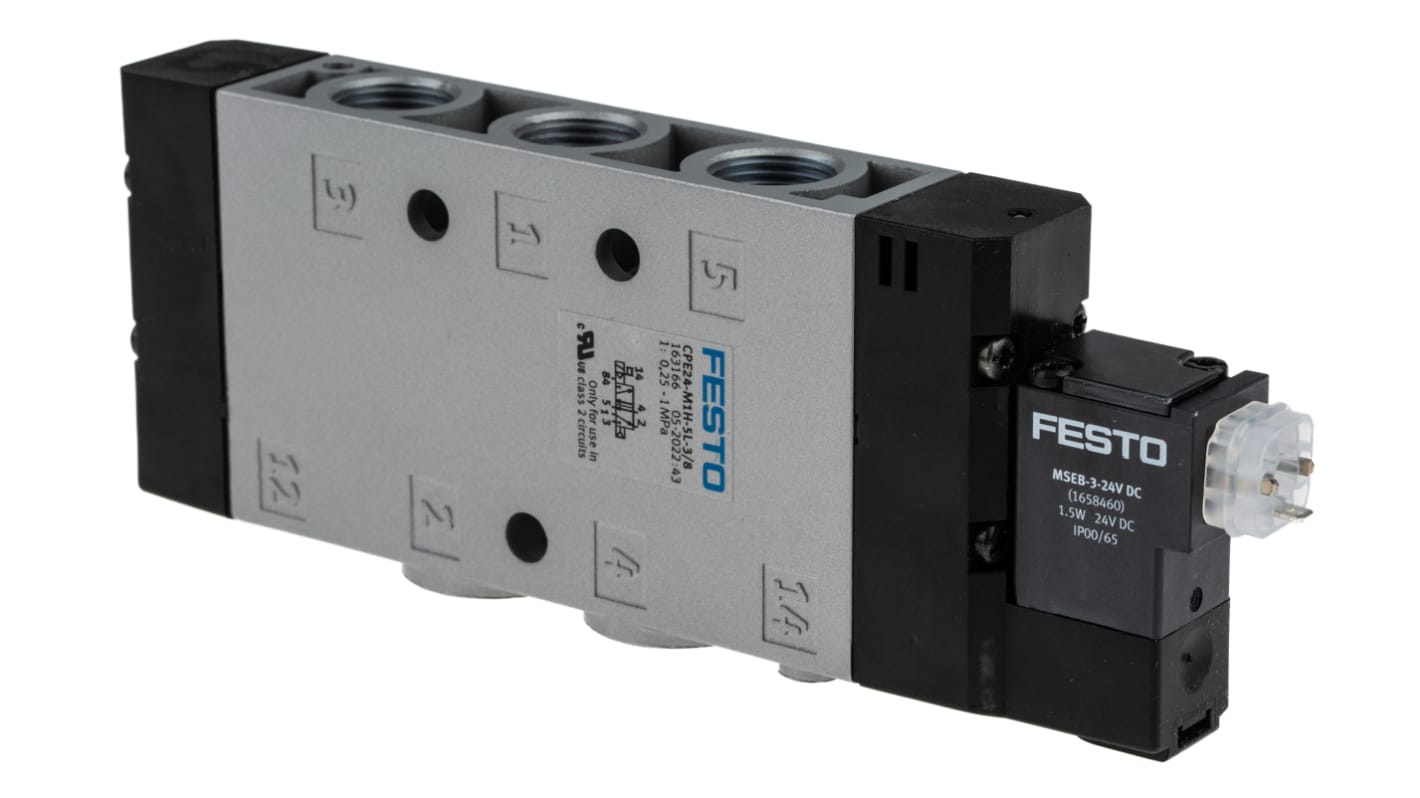

Festo Solenoid Pilot Valve - Electric G CPE Series 163166
- RS-stocknr.:
- 175-4576
- Fabrikantnummer:
- CPE24-M1H-5L-3/8
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 154,27
(excl. BTW)
€ 186,67
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 4 stuk(s) klaar voor verzending
- 5 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 5 stuk(s) vanaf 20 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 154,27 |
*prijsindicatie
- RS-stocknr.:
- 175-4576
- Fabrikantnummer:
- CPE24-M1H-5L-3/8
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Solenoid Pilot Valve | |
| Port Size | 3/8 in | |
| Port Type | Tube | |
| Connection Thread Standard | G | |
| Actuation Type | Electric | |
| Seal Material | Perfluoroelastomer, Ethylene Propylene Diene Monomer, Fluorelastomer, Polytetrafluoroethylene | |
| Series | CPE | |
| Mount Type | Through Hole | |
| Number of Ports | 5 | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Aluminium | |
| Port Gender | Female | |
| Minimum Pilot Pressure | 0.9bar | |
| Maximum Pilot Pressure | 10bar | |
| Valve Function | 5/2 | |
| Minimum Operating Temperature | -5°C | |
| Maximum Flow Rate | 3200L/min | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS, c UL US | |
| Width | 24mm | |
| Number of Positions | 2 | |
| Thread Size | 3/8 in | |
| Model Number | 163166 | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Solenoid Pilot Valve | ||
Port Size 3/8 in | ||
Port Type Tube | ||
Connection Thread Standard G | ||
Actuation Type Electric | ||
Seal Material Perfluoroelastomer, Ethylene Propylene Diene Monomer, Fluorelastomer, Polytetrafluoroethylene | ||
Series CPE | ||
Mount Type Through Hole | ||
Number of Ports 5 | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium | ||
Port Gender Female | ||
Minimum Pilot Pressure 0.9bar | ||
Maximum Pilot Pressure 10bar | ||
Valve Function 5/2 | ||
Minimum Operating Temperature -5°C | ||
Maximum Flow Rate 3200L/min | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS, c UL US | ||
Width 24mm | ||
Number of Positions 2 | ||
Thread Size 3/8 in | ||
Model Number 163166 | ||
Vrijgesteld
- Land van herkomst:
- HU
Festo Solenoid Pilot Valve, 5/2 Function, 3200L/min Flow Rate - CPE24-M1H-5L-3/8
This solenoid pilot valve from Festo is designed to control the movement of air through five different ports. A nominal flow rate of 2,900l/min means it can withstand high-flow systems. Thanks to a broad operating pressure range between 2.5 and 10 bar, you can safely use it in low-pressure applications. For durability, the unit is resistant to shock and vibration. The through-holes in its body let you mount it quickly for a drill-free installation and it features an inscription label holder for quick diagnosis of its position.
• Durable aluminium die-cast housing is resistant to impacts and corrosion for lasting use
• IP65 rating indicates it's protected from dust and low-pressure water jets
• Broad operating temperature range between -5°C and +50°C for use in challenging environments
• NBR seals are resistant to solvents for extended service life
Applications
• Medical and pharmaceutical industries
• Chemical plants
• Food and beverage production
• Marine industry
How fast does this valve operate?
This valve has a fast switching off time of 50ms and switching on time of 40ms, making it a highly responsive device.
