Festo 5/2 Solenoid Valve - Solenoid Metric M5 VUVG Series 24V dc, 576664

Bekijk deze categorie
Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 112,06

(excl. BTW)

€ 135,59

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 5 stuk(s) klaar voor verzending
  • 1 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 - 4€ 112,06
5 +€ 107,57

*prijsindicatie

RS-stocknr.:
181-6387
Fabrikantnummer:
VUVG-L10-B52-T-M5-1R8L
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Function

5/2

Connection Port Thread

Metric M5

Actuation Type

Solenoid

Manufacturer Series

VUVG

Mounting Style

Inline

Solenoid Voltage

24V dc

Solenoid Fitted

Yes

Number of Ports

5

Body Material

Aluminium Alloy

Maximum Flow Rate

220L/min

Solenoid Power Consumption

1W

Minimum Operating Pressure

1.5bar

Maximum Operating Temperature

+60°C

Maximum Operating Pressure

8bar

Minimum Operating Temperature

-5°C

Number of Positions

2

Thread Size

M5

Thread Standard

Metric

Land van herkomst:
DE

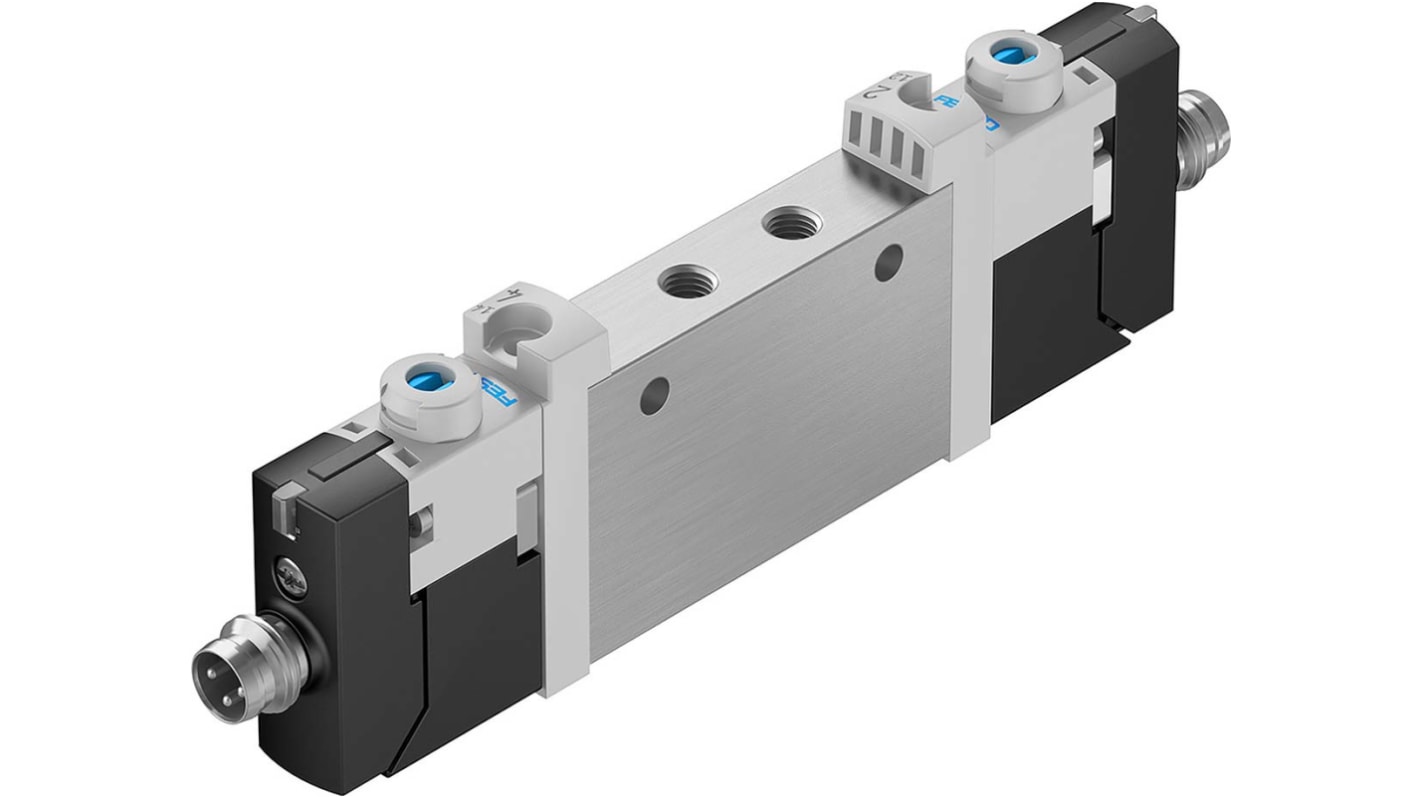

Festo Solenoid Valve, Internal Pilot Air Supply Type, 10mm Valve Size - VUVG-L10-B52-T-M5-1R8L


Want to keep tabs on the rate of flow in your system? It's a breeze with this double solenoid valve from Festo. The 5/2-way unit opens or closes when supplied with a 24V DC to drive components like double-acting cylinders. A high flow rate of 220L/min means it's able to handle the demands of powerful pneumatic systems. The housing is made from a durable wrought aluminium alloy, so you can trust it to stand the test of time. Thanks to its IP65 rating, this product's dust-tight and holds its own against low-pressure water jets from any direction.

Features & Benefits


• Chemical-resistant NBR seals ensure a long service life in heavy-duty applications
• Weighs just 55g so it adds minimal strain to your setup
• Mountable in any position for flexibility
• 1.5 to 8 bar operating pressure range means it's versatile

Applications


• Manufacturing industry
• Automotive sector
• HVAC systems

Is this product suitable for factory applications?


Yes. It withstands temperatures between -5°C and +60°C, so it's suitable for factories, warehouses and other harsh work areas.

What's the thread size on this unit's pneumatic ports?


It has a standard M5 thread on its ports for use with common industry connectors.
