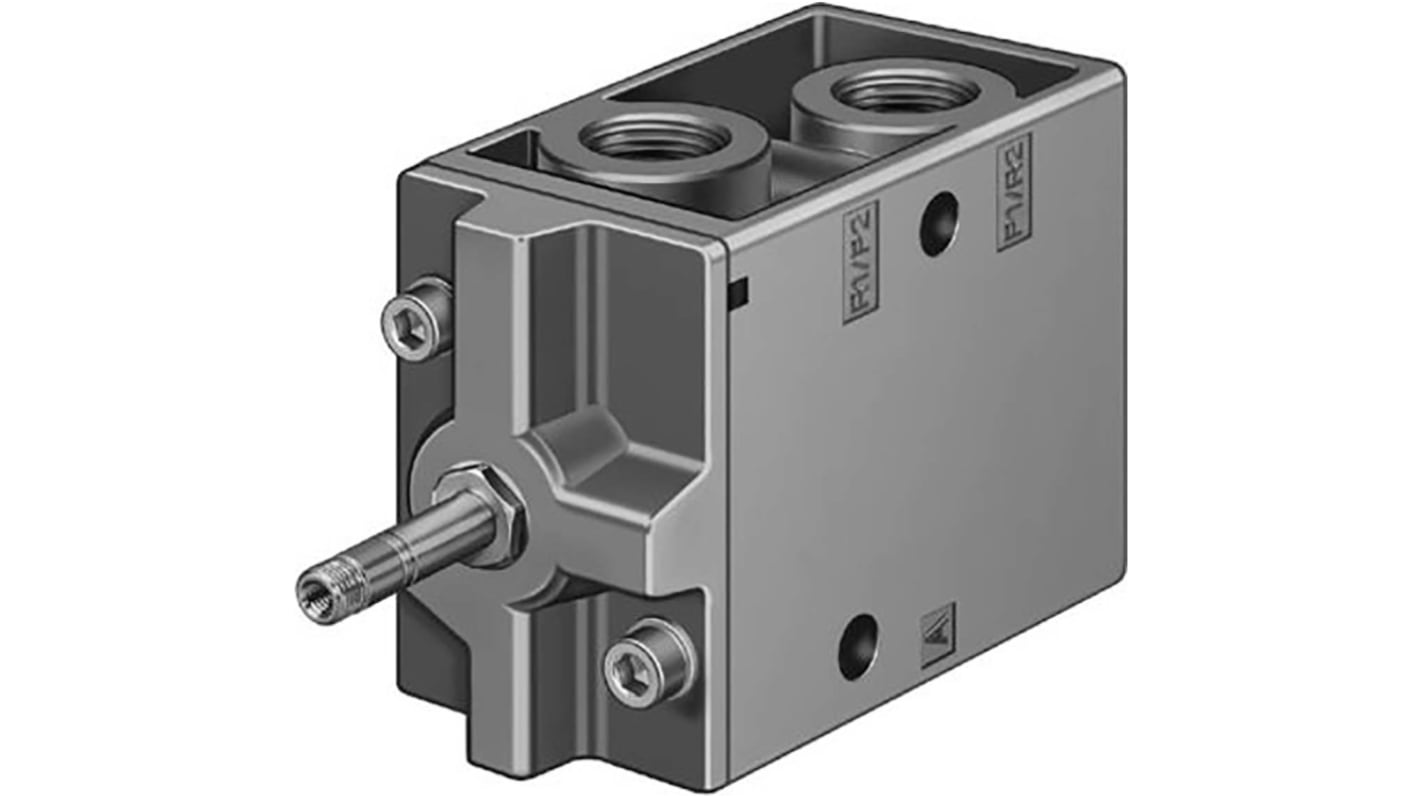

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - Electric MFH Series 535899
- RS-stocknr.:
- 203-7190
- Fabrikantnummer:
- MFH-3-1/2-EX
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 265,26
(excl. BTW)
€ 320,96
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 27 juli 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 265,26 |
*prijsindicatie
- RS-stocknr.:
- 203-7190
- Fabrikantnummer:
- MFH-3-1/2-EX
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Port Size | 1/2 in G | |
| Port Type | Pneumatic | |
| Actuation Type | Electric | |
| Series | MFH | |
| Seal Material | Nitrile Rubber (NBR) | |
| Mount Type | Rail, Through Hole | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Die Cast Aluminium | |
| Valve Function | 3/2 Closed Monostable | |
| Minimum Operating Temperature | -5°C | |
| Maximum Flow Rate | 3700L/min | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | CE to EU explosion protection (ATEX) | |
| Width | 52mm | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Port Size 1/2 in G | ||
Port Type Pneumatic | ||
Actuation Type Electric | ||
Series MFH | ||
Seal Material Nitrile Rubber (NBR) | ||
Mount Type Rail, Through Hole | ||
Maximum Operating Pressure 8 bar | ||
Body Material Die Cast Aluminium | ||
Valve Function 3/2 Closed Monostable | ||
Minimum Operating Temperature -5°C | ||
Maximum Flow Rate 3700L/min | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals CE to EU explosion protection (ATEX) | ||
Width 52mm | ||
- Land van herkomst:
- CN
The Festo's solenoid valve with manual override without solenoid coil or socket and solenoid coil and socket should be ordered separately. It has poppet valve of structure with highly durable valve are available with 3/2 closed, monostable valve function. Its width size is 52 mm and used operating pressure up to 1.5 -8 bar with standard nominal flow rate is 3,700 l/min
Ambient temperature -5 to 40 °C
Protection class IP65
