Festo Vacuum Filter - VAF-DB Series, 80 μm, G 3/8 Port Connection

RS-stocknr.:: 202-3624
Fabrikantnummer:: VAF-DB-3/8
Fabrikant:: Festo

Festo Vacuum Filter - VAF-DB Series, 80 μm, G 3/8 Port Connection

Subtotaal (1 eenheid)*

€ 82,09

(excl. BTW)

€ 99,33

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

12 stuk(s) klaar voor verzending
8 stuk(s) klaar voor verzending vanaf een andere locatie
Plus verzending 23 stuk(s) vanaf 27 augustus 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 82,09

*prijsindicatie

RS-stocknr.:: 202-3624
Fabrikantnummer:: VAF-DB-3/8
Fabrikant:: Festo

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Festo
	Port Size	G 3/8
	Product Type	Vacuum Filter
	Filtration Size	80μm
	Series	VAF-DB
	Connection Thread Standard	G
	Housing Material	Reinforced Polypropylene
	Seal Material	Nitrile Rubber (NBR)
	Maximum Operating Pressure	0 bar
	Maximum Operating Temperature	50°C
	Minimum Operating Temperature	-5°C
	Minimum Operating Pressure	-0.95bar
	Standards/Approvals	RoHS

	Alles selecteren
	Merk Festo
	Port Size G 3/8
	Product Type Vacuum Filter
	Filtration Size 80μm
	Series VAF-DB
	Connection Thread Standard G
	Housing Material Reinforced Polypropylene
	Seal Material Nitrile Rubber (NBR)
	Maximum Operating Pressure 0 bar
	Maximum Operating Temperature 50°C
	Minimum Operating Temperature -5°C
	Minimum Operating Pressure -0.95bar
	Standards/Approvals RoHS

Land van herkomst:: DE

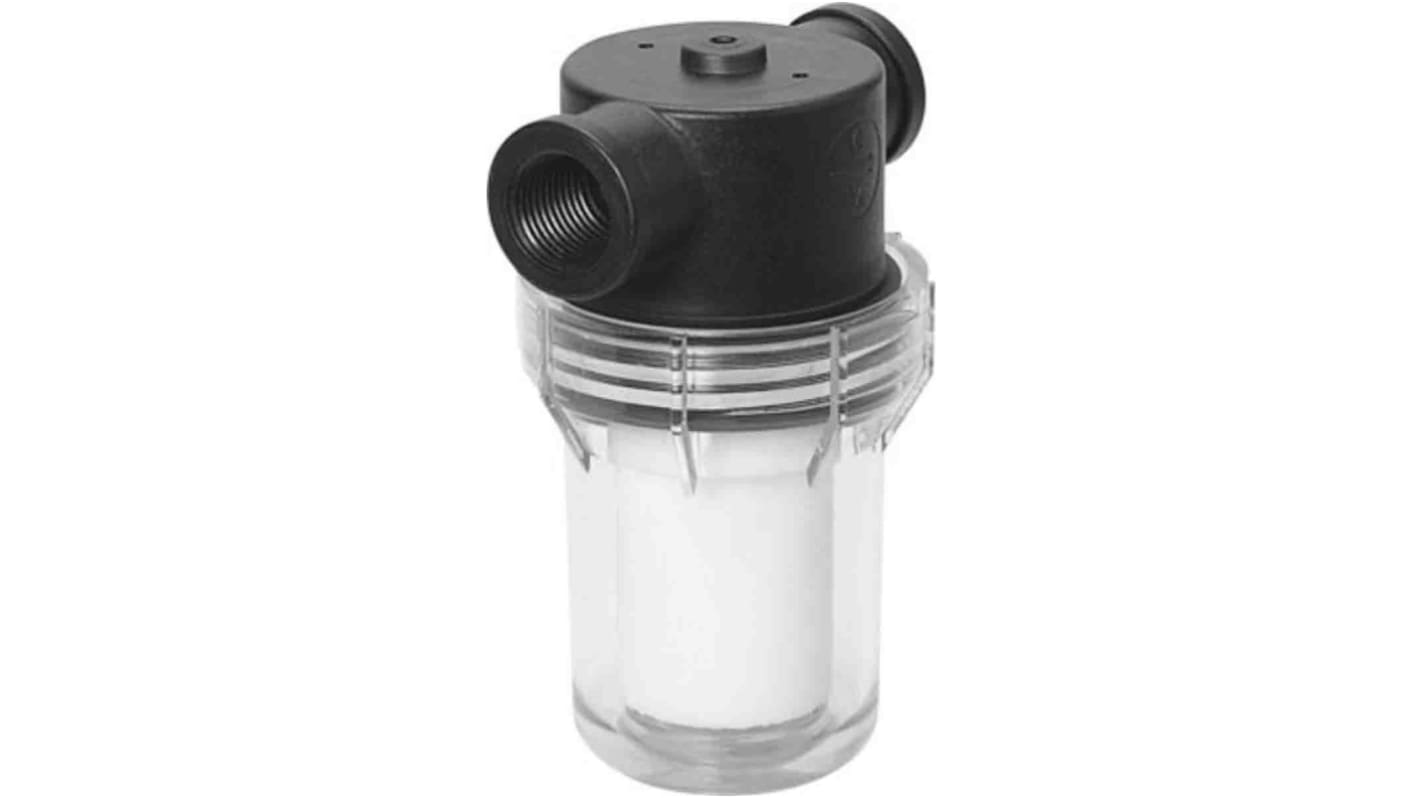

Festo Vacuum Filter, 80μm, G 3/8 Port Connection - VAF-DB-3/8

This is a vacuum filter designed for use in open vacuum systems. It ensures efficient filtration of compressed air, maintaining system performance and reliability. With a grade of filtration at 80 μm, this filter provides effective particle removal.

Features & Benefits

• Vertical installation allows for space-saving integration

• Operating pressure rated for -0.95 to 0 bar making it suitable for various applications

• Compressed air as per ISO 8573-1:2010 ensures clean and reliable operation

• Operates reliably between -5°C and 50°C

Applications

• Ideal for maintaining air quality in pneumatic circuits

• Used in automated machinery and production lines

• Ensures clean air supply for vacuum handling systems

What is the filtration grade of the VAF-DB-3/8?

The filtration grade is 80 μm.

Can I use this filter in closed vacuum systems?

No, it is designed for use only in open vacuum systems.

What materials are used for the seals and housing?

The seals are made of NBR, and the housing is constructed from PP-reinforced material.
