Hanna Instruments Diaphragm Electric Positive Displacement Pump, 15.2L/h, 14.5 psi, 110V ac, 115 V ac, 220 V ac, 240 V
- RS-stocknr.:
- 144-866
- Fabrikantnummer:
- BL15-2
- Fabrikant:
- Hanna Instruments
Subtotaal (1 eenheid)*
€ 321,08
(excl. BTW)
€ 388,51
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 1 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 321,08 |
*prijsindicatie
- RS-stocknr.:
- 144-866
- Fabrikantnummer:
- BL15-2
- Fabrikant:
- Hanna Instruments
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Hanna Instruments | |
| Pump Type | Diaphragm | |
| Product Type | Positive Displacement Pump | |
| Inlet Connection Type | Polyethylene Tube | |
| Drive Type | Electric | |
| Maximum Flow Rate | 15.2L/h | |
| Inlet Connection Size | 5 x 8 mm | |
| Outlet Connection Type | Injection Fitting | |
| Maximum Head Size | 1.5m | |
| Maximum Operating Pressure | 14.5 psi | |
| Outlet Connection Size | 3/8 in | |
| IP Rating | IP65 | |
| Series | BL15/D | |
| Maximum Fluid Temperature | 50°C | |
| Body Material | Fibreglass Reinforced Polypropylene | |
| Supply Voltage | 110, 115, 220, 240V ac | |
| Standards/Approvals | No | |
| Input Power | 200W | |
| Hazardous Area Certification | No | |
| Alles selecteren | ||
|---|---|---|
Merk Hanna Instruments | ||
Pump Type Diaphragm | ||
Product Type Positive Displacement Pump | ||
Inlet Connection Type Polyethylene Tube | ||
Drive Type Electric | ||
Maximum Flow Rate 15.2L/h | ||
Inlet Connection Size 5 x 8 mm | ||
Outlet Connection Type Injection Fitting | ||
Maximum Head Size 1.5m | ||
Maximum Operating Pressure 14.5 psi | ||
Outlet Connection Size 3/8 in | ||
IP Rating IP65 | ||
Series BL15/D | ||
Maximum Fluid Temperature 50°C | ||
Body Material Fibreglass Reinforced Polypropylene | ||
Supply Voltage 110, 115, 220, 240V ac | ||
Standards/Approvals No | ||
Input Power 200W | ||
Hazardous Area Certification No | ||
- Land van herkomst:
- RO

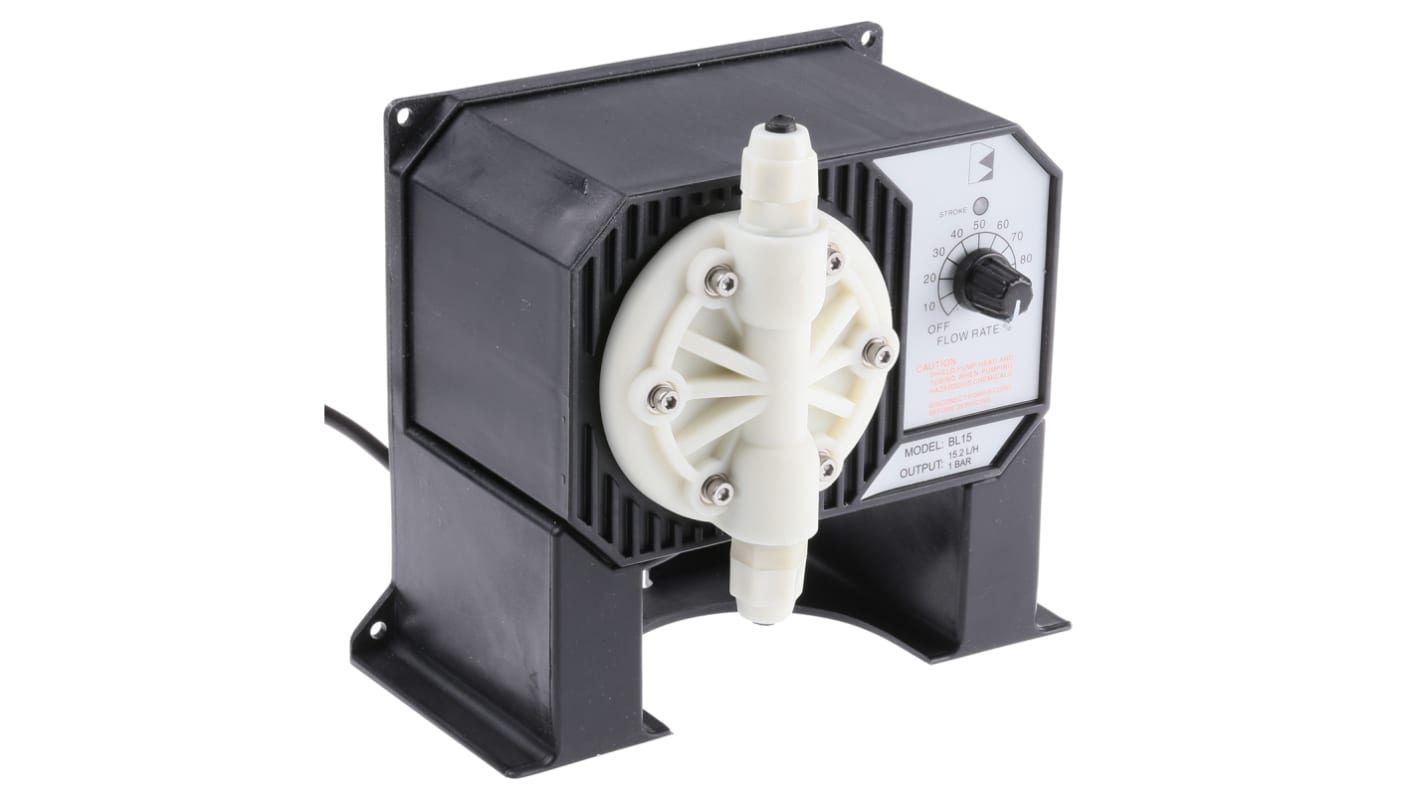

Hanna Instruments Positive Displacement Pump
The Hanna Instruments diaphragm positive displacement pump uses a minimum number of moving parts, therefore reducing the chance of mechanical failure. Its maximum flow rate is 15.2L/h. The external flow control (the potentiometer) on the front of the pump allows for adjustment of flow from 0% to 100% of the nominal capacity of the pump. These pumps are manufactured to the highest degree of mechanical precision, with materials selected for their intrinsic abilities to withstand chemical attacks. The reinforced polypropylene housing withstands chemical attacks and offers superior strength, suited to challenging industrial environments. It is easy to install with wide, flat bases and mounting holes to allow tank, shelf or floor mounting (horizontal mounting).
Features and Benefits
The supply voltage is 220V and 240V
Input power is 200W
Maximum working pressure is 1bar
Maximum working temperature is 500C
Wear resistant diaphragm due to PTFE
Balls are made from glass
The pump heads and O-rings are made from Kynar®, PTFE or Viton®
Blackstone pumps are fitted in such a way as to be completely hermetically sealed, with protection against splashing and accidental spillages
Certifications
IP65 rated
