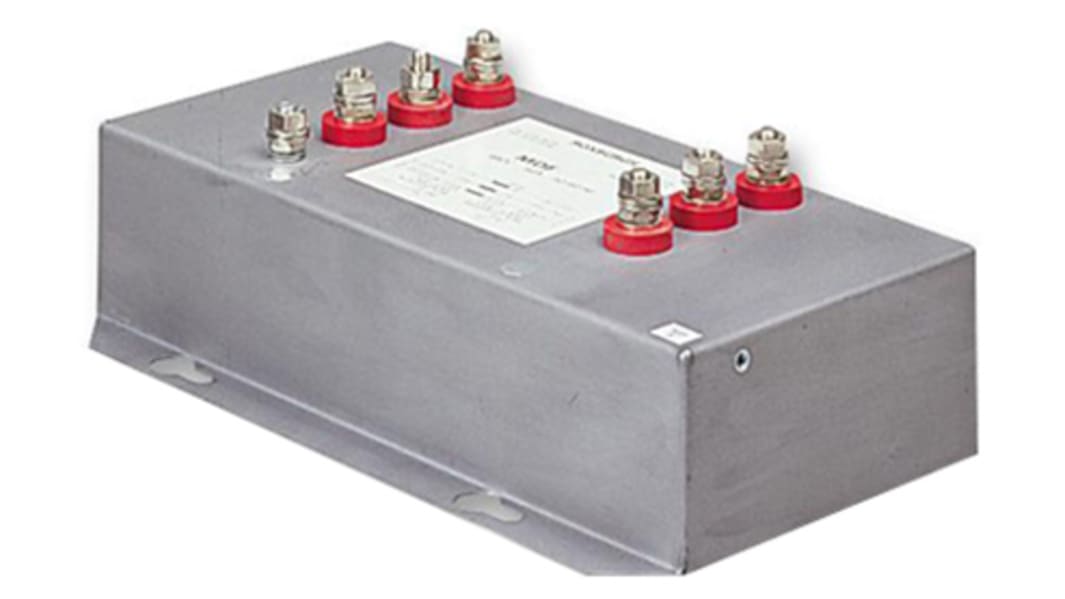

Roxburgh EMC, MDF 50A 480 V ac 60Hz, Flange Mount RFI Filter, Stud, Single Phase
- RS-stocknr.:
- 188-9292
- Fabrikantnummer:
- MDF350
- Fabrikant:
- Roxburgh EMC
Sorry, we konden onze voorraadniveaus nu niet controleren. Probeer de pagina te vernieuwen.
Toegevoegd
Prijs Per stuk
€ 156,17
(excl. BTW)
€ 188,97
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 - 4 | € 156,17 |
| 5 - 9 | € 145,24 |
| 10 - 24 | € 135,87 |
| 25 + | € 128,06 |
- RS-stocknr.:
- 188-9292
- Fabrikantnummer:
- MDF350
- Fabrikant:
- Roxburgh EMC
Wetgeving en compliance
- Land van herkomst:
- GB
Productomschrijving
IHF/MDF Series
Motor drive filters suitable for a wide range of industrial motor applications
IHF variants offer three phase and neutral connection with low leakage current, (≤3.5mA)
MDF variants offer higher performance for applications where leakage current is not a limiting factor (three phase connection with no neutral)
Designed to comply with IEC950 safety standards, when installed correctly these filters allow compliance with VDE0871, EN55011 (Industrial) and EN55022 (Domestic) emission levels
IHF variants offer three phase and neutral connection with low leakage current, (≤3.5mA)
MDF variants offer higher performance for applications where leakage current is not a limiting factor (three phase connection with no neutral)
Designed to comply with IEC950 safety standards, when installed correctly these filters allow compliance with VDE0871, EN55011 (Industrial) and EN55022 (Domestic) emission levels
Approvals
IEC950; VDE0871; EN55011; EN55022
Specificaties
Kenmerk | Waarde |
|---|---|
| Maximum Current Rating | 50A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Stud |
| Number of Phases | 1 |
| Series | MDF |
| Operating Frequency | 60Hz |
| Length | 230mm |
| Depth | 147mm |
| Capacitance | 2.2µF |
| Height | 55mm |
| Inductance | 550 μH |
| Dimensions | 230 x 147 x 55mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 14.5 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 1.8mΩ |
| Power Loss | 4.5W |
| Standards Met | UL 1283 |
