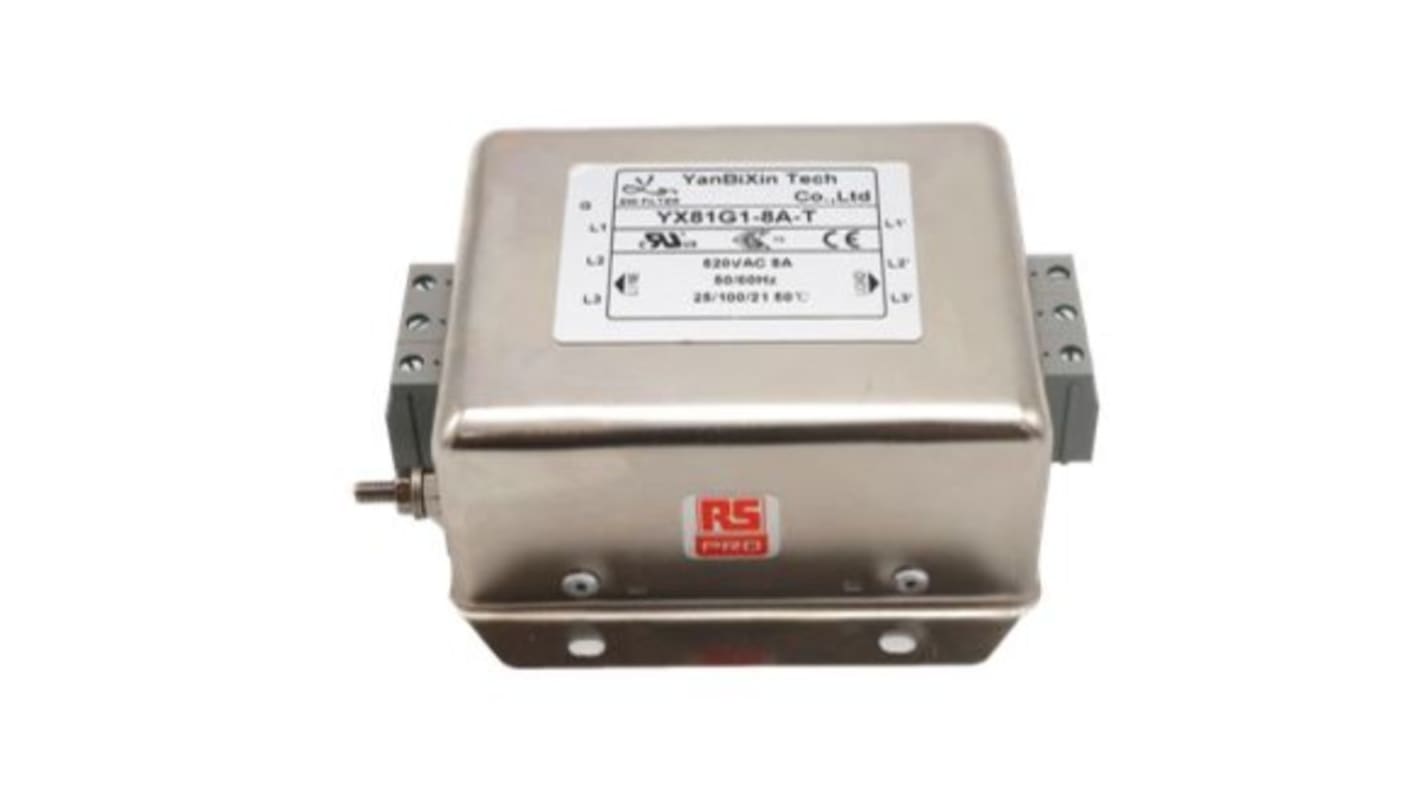

RS PRO 8 A 520V 50/60 Hz, Chassis Power Line Filter, Terminal Block 3 Phase

Bekijk alle Power Line Filters
Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 65,83

(excl. BTW)

€ 79,65

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks
Per stuk
1 - 4€ 65,83
5 - 9€ 64,51
10 - 24€ 63,18
25 +€ 59,24

*prijsindicatie

RS-stocknr.:
237-8739
Fabrikant:
RS PRO
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

RS PRO

Maximum Current

8A

Product Type

Power Line Filter

Maximum Voltage

520V

Mount Type

Chassis

Termination Style

Terminal Block

Number of Phases

3

Number of Stages

1

Operating Frequency

50/60 Hz

Capacitance

0.22μF

Inductance

2.5 mH

Minimum Operating Temperature

-25°C

Leakage Current

2.6mA

Maximum Operating Temperature

100°C

Depth

65mm

Length

85mm

Height

39mm

Resistance

1mΩ

Standards/Approvals

UL1283, IEC, EN 60939, CSA C22.2 No.8

Land van herkomst:
CN

RS PRO Power Line Filter


This range of RS PRO Power Line Filters have been designed with the highest quality and versatility in mind; a compact component that can be connected to electrical devices to prevent external radio frequencies from impairing performance.

This power line filter significantly reduces the amount of conducted frequencies between your equipment and the connecting power line. RFI can cause permanent damage to electronic circuits, so filtering them out is crucial to prolong the working life of your devices. The filter also protects against transient voltage spikes, which can result from power outages, short circuits, and nearby lightning strikes.

This RS PRO filter is available with fuse holder for two (5*20mm) fuses (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing. There are a variety of parts and combinations to meet different customer's EMC tests.

Features and Benefits


  • Rated currents up to 10A

  • Quick connect(6.3*0.8mm)

  • There are a variety of parts and combinations to meet different customer's EMC tests

  • Customized products according to customer's requirementss

    • Applications


    These RS PRO Power Line Filters can ensure equipment runs safely and reliably by Preventing interference, even when exposed to unpredictable electromagnetic environments. This RFI filter is a great size for small and medium-sized machines and household equipment and is a good way to ensure that sensitive electronics, such as medical and industrial equipment, are well protected.

    Why RS PRO?


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

    they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

    Also available for purchase in a pack size of 1. Please see RS 237-8739
