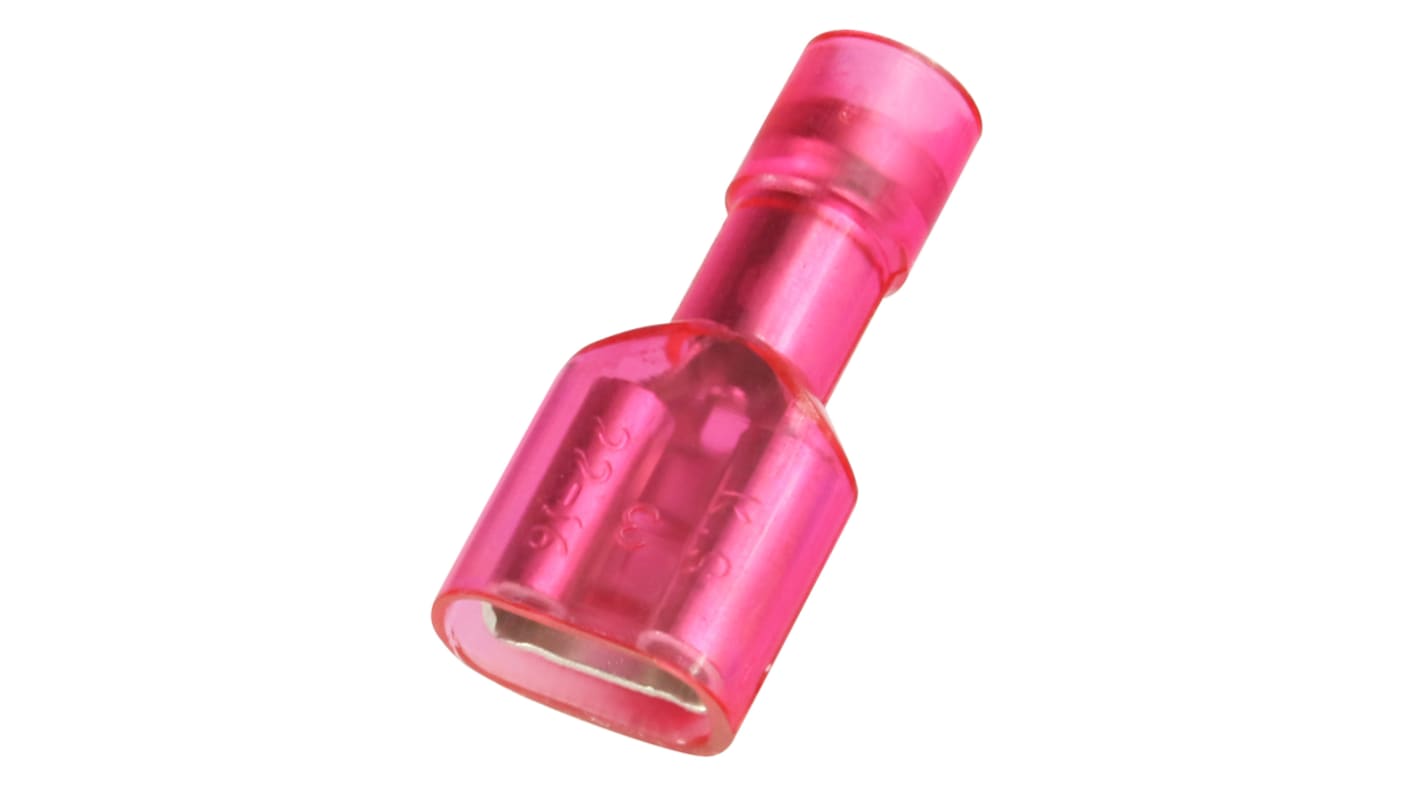

RS PRO Red Insulated Female Spade Connector, Double Crimp, 0.8 x 6.35mm Tab Size, 0.5mm² to 1.5mm²
- RS-stocknr.:
- 178-8295
- Artikelnummer Distrelec:
- 304-25-368
- Fabrikant:
- RS PRO
Bulkkorting beschikbaar
Subtotaal (1 zak van 100 eenheden)*
€ 13,60
(excl. BTW)
€ 16,50
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- 500 stuk(s) klaar voor verzending
- 2.200 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per Zak* |
|---|---|---|
| 100 - 900 | € 0,136 | € 13,60 |
| 1000 - 1900 | € 0,124 | € 12,40 |
| 2000 - 4900 | € 0,113 | € 11,30 |
| 5000 - 9900 | € 0,105 | € 10,50 |
| 10000 + | € 0,095 | € 9,50 |
*prijsindicatie
- RS-stocknr.:
- 178-8295
- Artikelnummer Distrelec:
- 304-25-368
- Fabrikant:
- RS PRO
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Type | Double Crimp | |
| Spade Connector Type | Receptacle | |
| Gender | Female | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Tab Thickness | 0.8mm | |
| Tab Width | 6.35mm | |
| Tab Size | 0.8 x 6.35mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Termination Method | Crimp | |
| Colour | Red | |
| Contact Material | Brass, Copper | |
| Contact Plating | Tin | |
| Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG | |
| Orientation | Straight | |
| Insulation Material | PC | |
| Overall Length | 21.5mm | |
| Shrouded/Unshrouded | Shrouded | |
Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Type Double Crimp | ||
Spade Connector Type Receptacle | ||
Gender Female | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Tab Thickness 0.8mm | ||
Tab Width 6.35mm | ||
Tab Size 0.8 x 6.35mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Termination Method Crimp | ||
Colour Red | ||
Contact Material Brass, Copper | ||
Contact Plating Tin | ||
Wire Size 0.5 → 1.5 mm², 22 → 16 AWG | ||
Orientation Straight | ||
Insulation Material PC | ||
Overall Length 21.5mm | ||
Shrouded/Unshrouded Shrouded | ||
