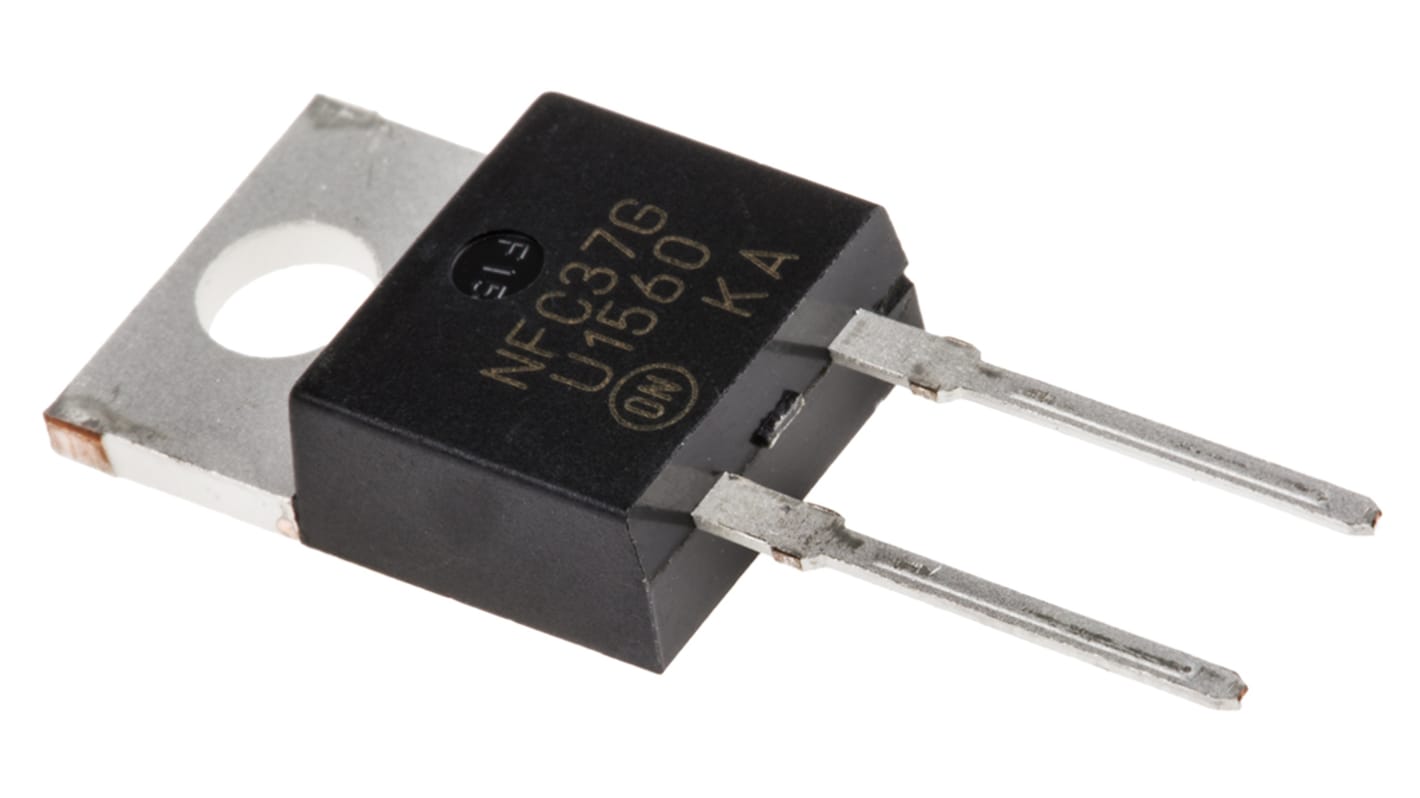

onsemi Silicon Junction, Single, 15 A, 2-Pin 600 V TO-220 MUR1560G
- RS-stocknr.:
- 545-2939
- Fabrikantnummer:
- MUR1560G
- Fabrikant:
- onsemi
Subtotaal (1 verpakking van 5 eenheden)*
€ 6,86
(excl. BTW)
€ 8,30
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 80,00
Tekort aan aanbod
- Plus verzending 70 stuk(s) vanaf 30 maart 2026
- Plus verzending 2.465 stuk(s) vanaf 06 april 2026
Onze huidige voorraad is beperkt en onze leveranciers verwachten tekorten.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 5 + | € 1,372 | € 6,86 |
*prijsindicatie
- RS-stocknr.:
- 545-2939
- Fabrikantnummer:
- MUR1560G
- Fabrikant:
- onsemi
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | onsemi | |
| Product Type | Silicon Junction | |
| Maximum Forward Current If | 15A | |
| Diode Configuration | Single | |
| Sub Type | Silicon Junction | |
| Mount Type | Through Hole | |
| Package Type | TO-220 | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 1.5V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A | |
| Peak Reverse Recovery Time trr | 60ns | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 175°C | |
| Height | 9.27mm | |
| Width | 4.82 mm | |
| Length | 10.29mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk onsemi | ||
Product Type Silicon Junction | ||
Maximum Forward Current If 15A | ||
Diode Configuration Single | ||
Sub Type Silicon Junction | ||
Mount Type Through Hole | ||
Package Type TO-220 | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 1.5V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 150A | ||
Peak Reverse Recovery Time trr 60ns | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 600V | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 175°C | ||
Height 9.27mm | ||
Width 4.82 mm | ||
Length 10.29mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Rectifier Diodes, 10A to 30A, ON Semiconductor
Standards
Products with NSV- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
