- RS-stocknr.:
- 218-2250
- Fabrikantnummer:
- ANT-868-VHETH
- Fabrikant:
- Linx
tijdelijk niet op voorraad – nieuwe voorraad verwacht op 16-09-2024, met een levertijd van 2 à 3 werkdagen.
Toegevoegd
Prijs Elk (in een pakket van 10)
€ 2,64
(excl. BTW)
€ 3,19
(incl. BTW)
Aantal stuks | Per stuk | Per pak* |
10 + | € 2,64 | € 26,40 |
*prijsindicatie |
- RS-stocknr.:
- 218-2250
- Fabrikantnummer:
- ANT-868-VHETH
- Fabrikant:
- Linx
Datasheets
Wetgeving en compliance
- Land van herkomst:
- TW
Productomschrijving

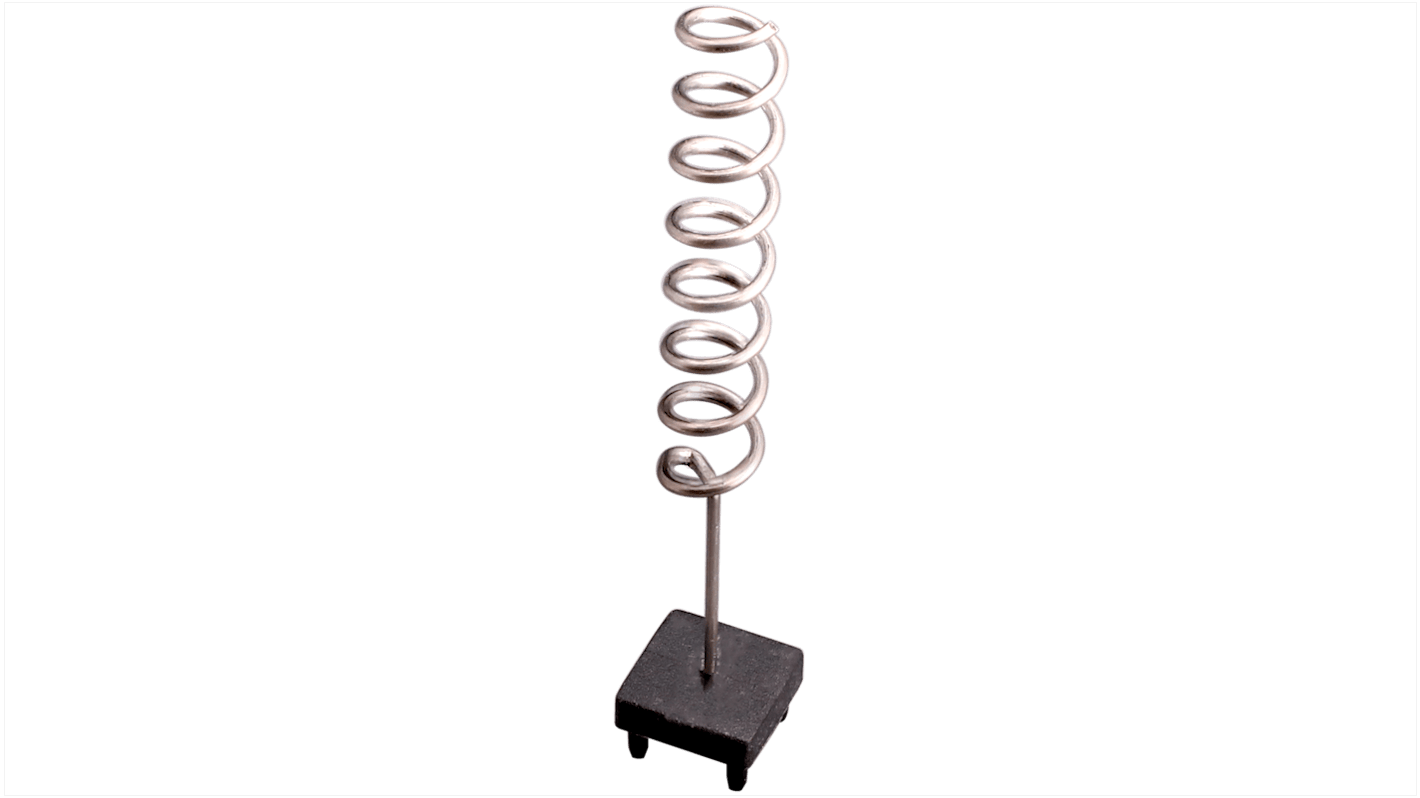

The Linx 868MHz helical antenna has 4-pin connector-style with PCB-mount base. It has compact surface mount helical antenna for low-power, wide-area (LPWA) applications including LoRaWAN® and Sigfox®, remote controls, and ISM band applications in the 862 MHz to 876 MHz range. The antenna is made from 0.6 mm diameter nickel plated high-carbon steel for use in PCB-mount installations requiring a rugged, compact and omnidirectional embedded antenna. The connector-style base of the antenna ensures proper mounting for uniform performance in high-volume manufacturing.
Performance at 862 MHz to 876 MHz
VSWR is ≤ 2.7
Peak gain of -0.7 dBi
Efficiency is 42%
Direct PCB attachment
Reflow- or hand-solder assembly
Omnidirectional radiation pattern
Compact size - 44.3 mm x 7.0 mm x 7.0 mm
VSWR is ≤ 2.7
Peak gain of -0.7 dBi
Efficiency is 42%
Direct PCB attachment
Reflow- or hand-solder assembly
Omnidirectional radiation pattern
Compact size - 44.3 mm x 7.0 mm x 7.0 mm
Specificaties
Kenmerk | Waarde |
---|---|
RF Protocols | ISM Band |
Antenna Length | 44.3mm |
Maximum Frequency | 876MHz |
Gain | -0.7dBi |
Antenna Directivity | Omnidirectional |
Connector Gender | Male |
Minimum Frequency | 862MHz |
