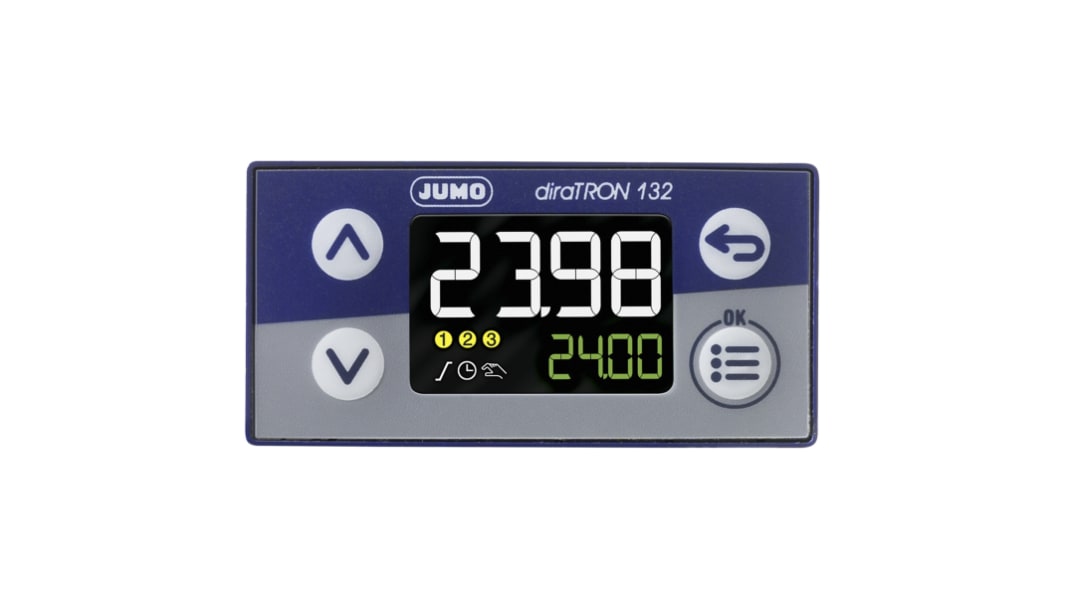

Jumo diraTRON Panel Mount PID Temperature Controller, 48 x 24mm 2 Input, 2 Output 1 Relay, 1 Logic, 20 → 30 V
- RS-stocknr.:
- 185-7732
- Fabrikantnummer:
- 702110/8‐0000‐25/000
- Fabrikant:
- Jumo
1 op voorraad - levertijd is 1 werkdag(en)
Toegevoegd
Prijs Per stuk
€ 313,60
(excl. BTW)
€ 379,46
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 313,60 |
- RS-stocknr.:
- 185-7732
- Fabrikantnummer:
- 702110/8‐0000‐25/000
- Fabrikant:
- Jumo
Wetgeving en compliance
- Land van herkomst:
- DE
Productomschrijving
Fixed value or program controller
2 parameter blocks
Autotuning
Setpoint changeover (4 setpoint values)
Ramp function
Timer function
4 limit value monitoring functions
Service counter
Individual operator level
Separate application using structured text (ST code, option)
Math and logic function (option)
Fast wiring through PUSH IN technology
RS485 interface (option)
Additional analog and digital inputs via RS485 interface
Applications
Control of temperatures, pressures, and other process variables
2 parameter blocks
Autotuning
Setpoint changeover (4 setpoint values)
Ramp function
Timer function
4 limit value monitoring functions
Service counter
Individual operator level
Separate application using structured text (ST code, option)
Math and logic function (option)
Fast wiring through PUSH IN technology
RS485 interface (option)
Additional analog and digital inputs via RS485 interface
Applications
Control of temperatures, pressures, and other process variables
Specificaties
Kenmerk | Waarde |
|---|---|
| Output Type | 1 Relay, 1 Logic |
| Supply Voltage | 20 → 30 V ac/dc |
| Size | 48 x 24mm |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +55°C |
| Temperature Range | -10 → +55 °C |
| Display Type | Segment |
| IP Rating | IP20, IP65 |
| Input Type | Analogue, Digital |
| Series | diraTRON |
| Additional Functionality | PID Controller |
| Mounting Type | Panel Mount |
| Display Colour | Green, White |
