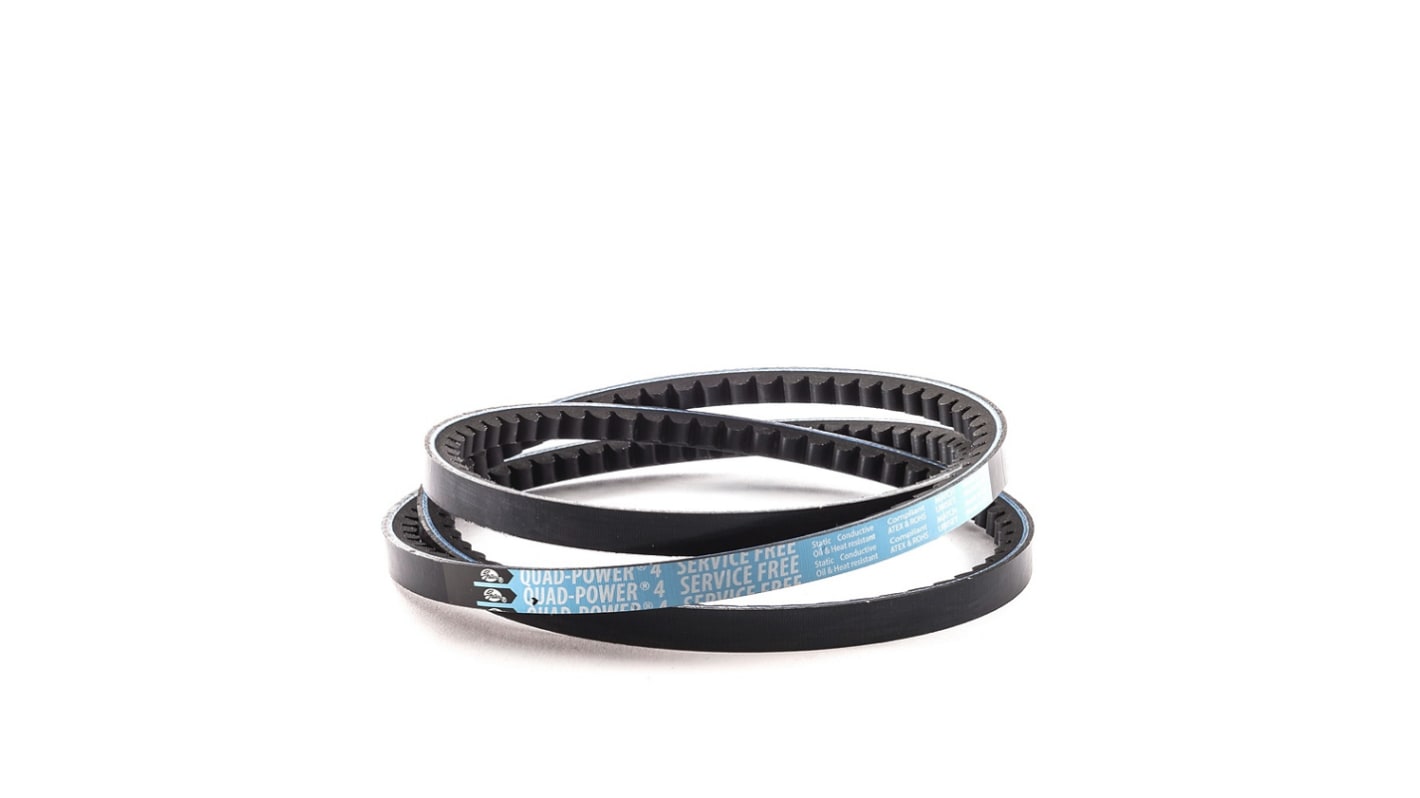

Gates Drive Belt, belt section XPA 1682 mm, 1637 mm Length
- RS-stocknr.:
- 211-7234
- Fabrikantnummer:
- XPA1682 QUAD-POWER 4
- Fabrikant:
- Gates
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 46,45
(excl. BTW)
€ 56,20
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 46,45 |
| 5 - 9 | € 45,51 |
| 10 - 24 | € 44,59 |
| 25 + | € 43,67 |
*prijsindicatie
- RS-stocknr.:
- 211-7234
- Fabrikantnummer:
- XPA1682 QUAD-POWER 4
- Fabrikant:
- Gates
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Gates | |
| Product Type | Drive Belt | |
| Belt Section | XPA | |
| Sub Type | Narrow Belt | |
| Series | Quad Power 4 | |
| Cord Material | Polyester | |
| Belt Material | Ethylene Propylene Diene Monomer Rubber | |
| Belt Height | 10mm | |
| Belt Width | 12.7mm | |
| Outside Length | 1682mm | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | ISO181 ATEX, REACH, DIN 775, RMA IP, ISO 4184, RoHS | |
| Inside Length | 1637mm | |
| Alles selecteren | ||
|---|---|---|
Merk Gates | ||
Product Type Drive Belt | ||
Belt Section XPA | ||
Sub Type Narrow Belt | ||
Series Quad Power 4 | ||
Cord Material Polyester | ||
Belt Material Ethylene Propylene Diene Monomer Rubber | ||
Belt Height 10mm | ||
Belt Width 12.7mm | ||
Outside Length 1682mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals ISO181 ATEX, REACH, DIN 775, RMA IP, ISO 4184, RoHS | ||
Inside Length 1637mm | ||
- Land van herkomst:
- FR
The Gates XPA series Quad Power 4 raw edge v-belt has designed is the first raw edge zero-maintenance belt by using innovative minimal-stretch cord technology. iT has been developed to replace conventional belt for heavy duty industry drives. This V-belt does not suffer from severe tension decay in the first hours after installation, so no run-in period nor any re-tensioning are required.
Energy efficiencies up to 98%
Latest EPDM rubber technology
Halogen-free belt
Service-free V-belt
Temperature range = -50°C to +130°C
RoHS and REACH compliant
