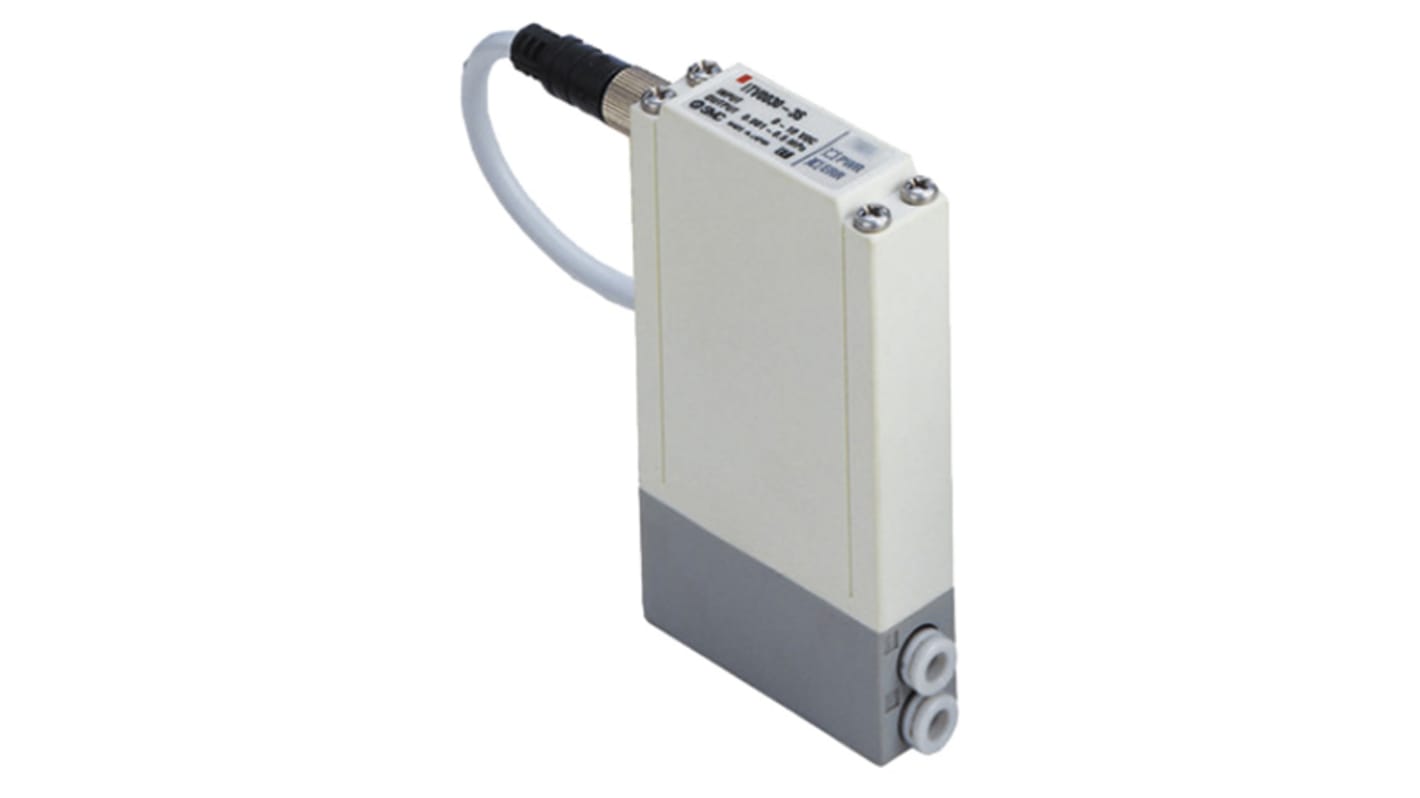

SMC Pneumatic Regulator 6L/min, 0.001 → 0.5Mpa

  • RS-stocknr. 873-4739
  • Fabrikantnummer ITV0030-0BS
  • Fabrikant SMC
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: JP
Productomschrijving

Compact Series ITV0000

Compact Series ITV0000 Electro-Pneumatic Pressure Regulators work on the principle that when the input signal rises, the air supply solenoid valve turns on. As a result, part of the supply pressure passes through the air supply solenoid valve, and changes to output pressure. This output pressure then feeds back to the control circuit through the pressure sensor. Pressure corrections within the ITV0000 continue until the output pressure becomes proportional to the input signal, enabling output pressure that is proportional to the input signal.

Specificaties
Kenmerk Waarde
Minimum Outlet Pressure 0.001MPa
Maximum Outlet Pressure 0.5MPa
Maximum Input Pressure 1MPa
Maximum Flow Rate 6L/min
Integral Check Valve Yes
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
Overall Height 86 (For Single Unit) mm, 89 (For Manifold) mm
Overall Dimensions 56 x 15 x 86 (For Single Unit) mm, 56 x 15 x 89 (For Manifold) mm
Overall Width 15mm
Overall Length 56mm
1 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
1 op voorraad - levertijd is 1 werkdag(en) (UK-voorraad)
Prijs Each
350,54
(excl. BTW)
424,15
(incl. BTW)
Aantal stuks
Per stuk
1 - 4
€ 350,54
5 - 9
€ 339,85
10 +
€ 328,88
