Barrier Strips

Barrier strips are screw-type electrical connectors that allow more than one circuit to connect to another circuit. Wires are clamped down to a metal part by tightening of a screw. Multiple screw terminals are arranged such that the metal strips are separated by a barrier or insulating block.


How do barrier strips work?


Each strip will have a pair of screws arranged such that each screw connects to a separate conductor on either end of the strip. Alternatively, terminal strips have several screws along two strips, creating a bus bar for the distribution of power.


Barrier strips can accommodate a broad range of wire sizes and provide a reliable connection. The term “contact” refers to the wire attached to the barrier and the contact pitch refers to the distance between each contact, measured from the centre of each opening or hole.


Applications of Barrier strips


Barrier strips are extensively used in electrical wiring for distributing electricity, connecting switches, electrical outlets and lighting fixtures to the mains. They’re also used to directly connect major appliances such as ovens. You will also find barrier strips in surge protectors and speakers.


...
Lees meer Lees minder

Filters

1 - 20 van 157 producten worden weergegeven
Resultaten per pagina
Omschrijving Prijs Number of Contacts Pitch Body Orientation Contact Material Contact Plating Number of Rows Screw Size Wire Size Material Fixing Centre Current Rating Voltage Rating Dimensions Depth
RS-stocknr. 763-8110
FabrikantRS PRO
€ 1,224
Each (In a Pack of 5)
Aantal stuks
- 9.5mm - Brass Tin - - 12 AWG Polyamide - 20A 750 V - -
RS-stocknr. 433-775
FabrikantRS PRO
€ 1,622
Each (In a Pack of 10)
Aantal stuks
28 9.5mm - - - - - - - 28.6mm - - 266.7 x 17.9 x 10.6mm 10.6mm
RS-stocknr. 433-703
FabrikantRS PRO
€ 3,41
Each (In a Pack of 5)
Aantal stuks
36 6.35mm - - - 2 - - - - - - 117 x 38 x 7.5mm 38mm
RS-stocknr. 433-781
FabrikantRS PRO
€ 1,729
Each (In a Pack of 10)
Aantal stuks
28 6.3mm - - - - - - - 28.6mm - - 194 x 16.7 x 4mm 4mm
RS-stocknr. 425-415
FabrikantRS PRO
€ 1,035
Each (In a Pack of 10)
Aantal stuks
1 - - Steel Zinc - M4 22 → 12 AWG Polyamide 11.2mm 20A 600 V 38 x 29 x 11mm 11mm
RS-stocknr. 425-421
FabrikantRS PRO
€ 1,254
Each (In a Pack of 10)
Aantal stuks
1 - - Steel Zinc - M4 22 → 12 AWG Polyamide 11.2mm 20A 600 V 38 x 29 x 11mm 11mm
RS-stocknr. 168-0875
Fabrikantnummer8PCV-02-006
FabrikantTE Connectivity
€ 0,77
Each (On a Reel of 4000)
Aantal stuks
2 11.1mm Straight Copper Alloy Tin 1 M4 22 → 10 AWG Thermoplastic - 30A 600 V 0.947 x 0.8 x 0.77in 19mm
RS-stocknr. 717-6637
Fabrikantnummer8PCV-02-006
FabrikantTE Connectivity
€ 1,41
Each
Aantal stuks
2 11.1mm Straight Copper Alloy Tin 1 M4 22 → 10 AWG Thermoplastic - 30A 600 V 0.947 x 0.8 x 0.77in 19mm
RS-stocknr. 415-607
Fabrikantnummer2-1103641-3
FabrikantTE Connectivity
€ 17,98
Each
Aantal stuks
24 - - - - - - - - - 16A 400 V - -
RS-stocknr. 415-617
Fabrikantnummer2-1103640-3
FabrikantTE Connectivity
€ 22,76
Each
Aantal stuks
24 - - - - - - - - - 16A 400 V - -
RS-stocknr. 781-2677
Fabrikantnummer1546306-4
FabrikantTE Connectivity
€ 1,288
Each (In a Pack of 5)
Aantal stuks
4 9.53mm - Brass Tin 2 M3 22 → 12 AWG Thermoplastic - 20A 300 V - -
RS-stocknr. 885-6808
Fabrikantnummer18-141
FabrikantCinch Connectors
€ 16,12
Each
Aantal stuks
- 11.13mm - Brass Nickel - - 14 AWG Phenolic - 20A 250 V ac - -
RS-stocknr. 885-9298
Fabrikantnummer24-140
FabrikantCinch Connectors
€ 10,51
Each
Aantal stuks
24 9.53mm Straight - - 2 M3 16 AWG Phenolic 9.375 in 15A 250 V ac 245.3 x 22.2 x 10.3mm 10.3mm

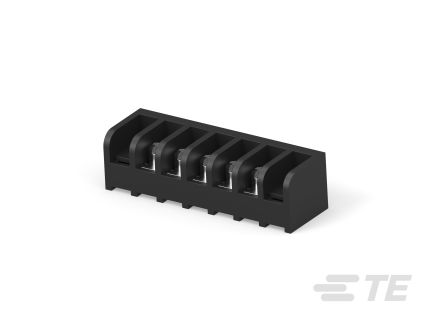

RS-stocknr. 782-2009
Fabrikantnummer1546306-6
FabrikantTE Connectivity
€ 1,934
Each (In a Pack of 5)
Aantal stuks
6 9.53mm - Brass Tin 2 M3 22 → 12 AWG Thermoplastic - 20A 300 V - -
RS-stocknr. 822-7180
Fabrikantnummer38760-0116
FabrikantMolex
€ 6,62
Each
Aantal stuks
16 9.53mm Straight Brass Nickel 2 M3 24 → 12 AWG Thermoplastic - - - 169 x 22.4 x 16mm 16mm
RS-stocknr. 885-9320
Fabrikantnummer3-142
FabrikantCinch Connectors
€ 2,451
Each (In a Pack of 10)
Aantal stuks
3 14.3mm Straight Brass Nickel 2 M3 10 AWG Phenolic 57.15mm 30A 250 V ac 67.46 x 33.32 x 15.88mm 15.88mm
RS-stocknr. 403-926
Fabrikantnummer1716570000
FabrikantWeidmüller
€ 4,366
Each (In a Pack of 5)
Aantal stuks
- 5.08mm - Copper Tin Alloy Tin - - 26 → 14 AWG Nylon - 14A 400 V - -
RS-stocknr. 885-9305
Fabrikantnummer8-140-Y
FabrikantCinch Connectors
€ 12,96
Each
Aantal stuks
8 9.53mm Straight Brass Nickel 2 M3 16 AWG Phenolic 85.73mm 15A 250 V ac 92.89 x 22.23 x 10.31mm 10.31mm
RS-stocknr. 822-7082
Fabrikantnummer38720-6208
FabrikantMolex
€ 4,16
Each
Aantal stuks
8 9.53mm Straight Brass Tin 1 M3 22 → 14 AWG PBT - 15A 300 V 97.3 x 15.7 x 16.8mm 16.8mm
RS-stocknr. 415-651
Fabrikantnummer1-1103417-1
FabrikantTE Connectivity
€ 67,44
Each
Aantal stuks
16 - - - - - - - - - - - - -
Related Products
Double-row, dual barrier strips for wire-to-wire applications. These ...
Description:
Double-row, dual barrier strips for wire-to-wire applications. These parts also allow end users to complete the wiring to a separate screw without disturbing the factory wiring. Increased current-carrying capability.Materials used:Insulator Body: UL 94 V-0 thermoplastic, blackTerminal: Brass, tin platedScrew: ...
A range of single row dual-barrier barrier strips ...
Description:
A range of single row dual-barrier barrier strips with a 8.26mm centreline. These dual-barrier barrier strips have a flat style block design and a wire clamp combo screw terminal head apart from stock numbers 821-9025 and 821-2655 which have a ...
A range of single row low profile dual-barrier ...
Description:
A range of single row low profile dual-barrier barrier strips with a 9.53mm centreline. These dual-barrier barrier strips have a flat style block design and a wire clamp combo screw terminal head apart from stock numbers 821-2658 and 821-2642 which ...
The Molex 38720 series of barrier strips and ...
Description:
The Molex 38720 series of barrier strips and terminal blocks guarantee the highest quality and reliability.The 38720 range comes complete with a 9.53mm pitch size, blocks and strips are panel mounted ranging from 2 positions to 12 positions. Whilst terminal ...
