- RS-stocknr.:
- 298-3159
- Fabrikantnummer:
- 4020VD23-45
- Fabrikant:
- FIBET
8 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
100 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Elk (in een pakket van 4)
€ 5,33
(excl. BTW)
€ 6,45
(incl. BTW)
Aantal stuks | Per stuk | Per pak* |
4 - 16 | € 5,33 | € 21,32 |
20 - 36 | € 5,105 | € 20,42 |
40 - 96 | € 4,998 | € 19,992 |
100 + | € 4,888 | € 19,552 |
*prijsindicatie |
- RS-stocknr.:
- 298-3159
- Fabrikantnummer:
- 4020VD23-45
- Fabrikant:
- FIBET
Wetgeving en compliance
- Land van herkomst:
- IT
Productomschrijving

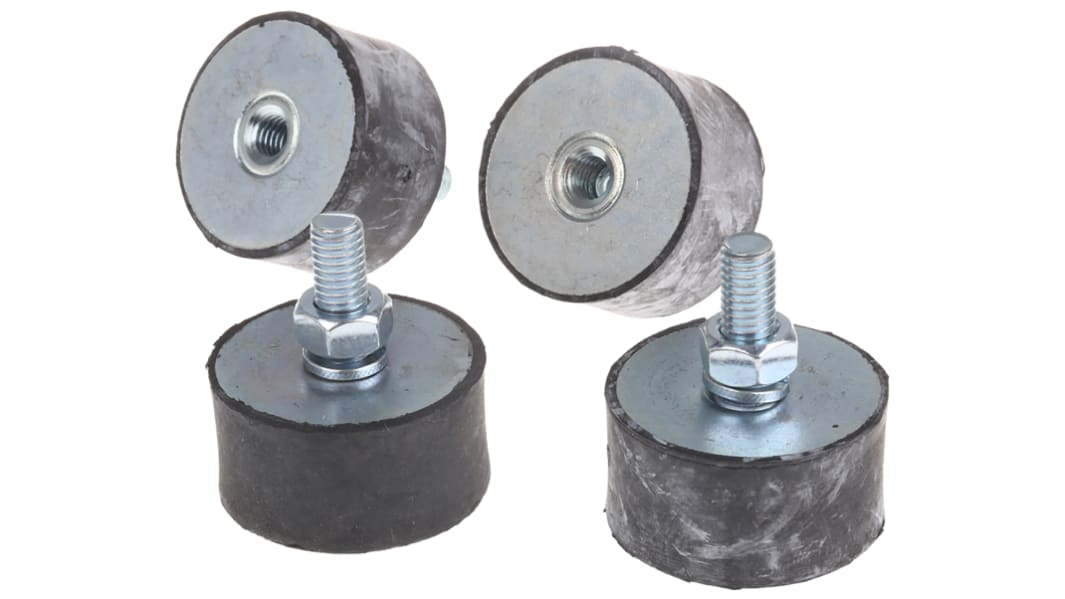

Male-Female Mounts
VD Bobbin Mounts have been designed to be used in a wide number of applications including compression and shear. Made from natural rubber and available in a variety of hardnesses depending on the application.
Male To Female
Cylindrical Mounts
Multiple-use bobbin mounts manufactured from natural rubber in 3 fitting options (male/male, male/female and female/female)
Good vibration isolation in rotating/reciprocating equipment
Good vibration isolation in rotating/reciprocating equipment
Specificaties
Kenmerk | Waarde |
---|---|
Anti Vibration Mount Type | Male to Female Bobbin |
Thread Size | M8 |
Diameter | 40mm |
Overall Height | 40mm |
Material | Natural Rubber |
Compression Load | 105.2kg |
Metalwork | Zinc Plated Steel |
Compression Deflection | 4mm |
