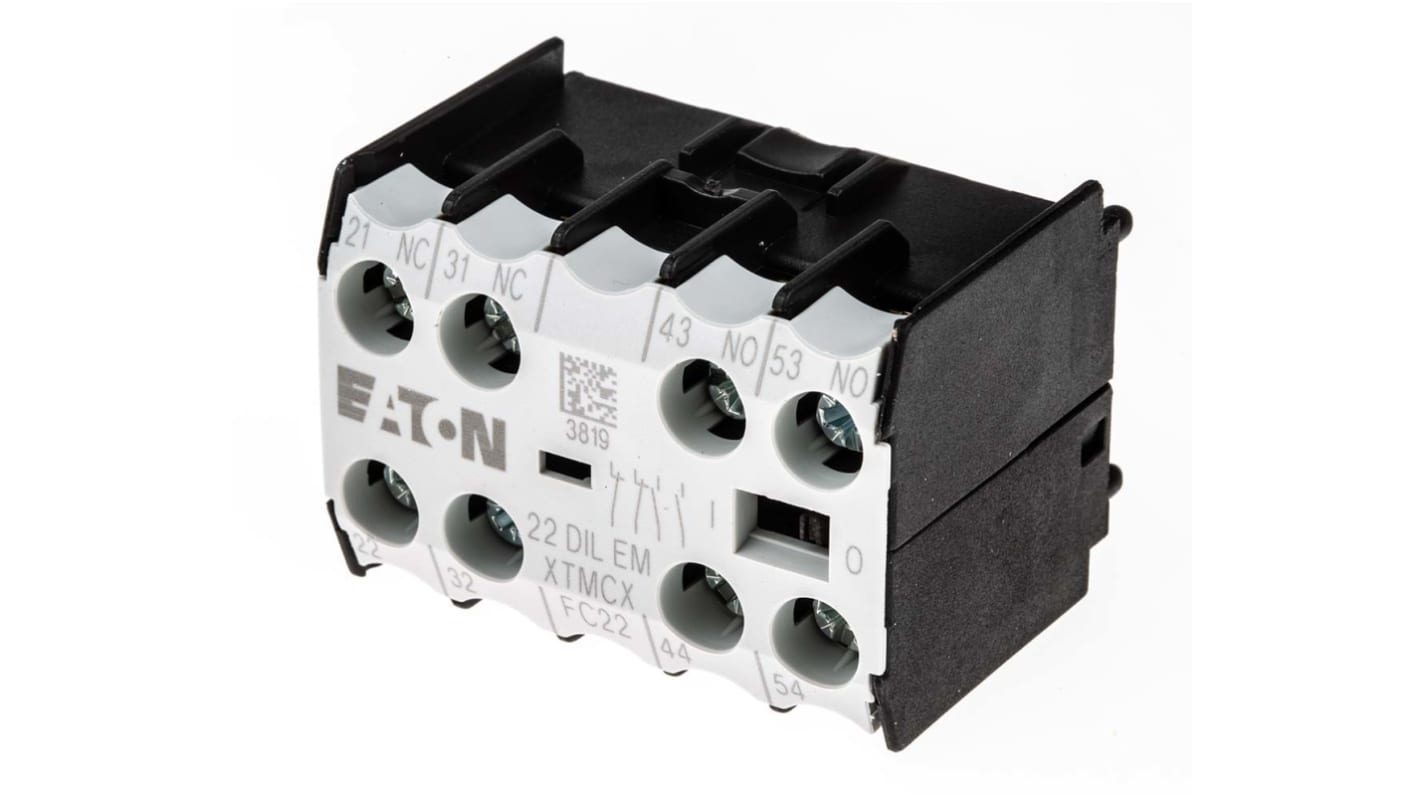

Eaton Auxiliary Contact, 4 Contact, 2 NC/2 NO, DILEM, Front Fixing, 4 A, 220 V dc, 500V ac, 010112 22DILEM
- RS-stocknr.:
- 326-633
- Artikelnummer Distrelec:
- 136-22-461
- Fabrikantnummer:
- 010112 22DILEM
- Fabrikant:
- Eaton
Subtotaal (1 eenheid)*
€ 15,38
(excl. BTW)
€ 18,61
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
- 132 stuk(s) klaar voor verzending
- 199 stuk(s) klaar voor verzending vanaf een andere locatie
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 15,38 |
*prijsindicatie
- RS-stocknr.:
- 326-633
- Artikelnummer Distrelec:
- 136-22-461
- Fabrikantnummer:
- 010112 22DILEM
- Fabrikant:
- Eaton
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Eaton | |
| Number of Contacts | 4 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 2 NC/2 NO | |
| Series | DILEM | |
| Mount Type | Front Fixing | |
| Contact Current | 4A | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | 4PST | |
| Contact Voltage | 220V dc, 500V dc | |
| Minimum Operating Temperature | -25°C | |
| Mechanical Durability | 10Mcycles | |
| Rated Insulation Voltage Ui | 690V | |
| Mounting Location | Top Mounting | |
| Operational Current Ie | 4A | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | UL 508, VDE 0660, CE marking, CSA, IEC/EN 60947-4-1, UL, CSA-C22.2 No. 14-05, IEC/EN 60947 | |
| Alles selecteren | ||
|---|---|---|
Merk Eaton | ||
Number of Contacts 4 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 2 NC/2 NO | ||
Series DILEM | ||
Mount Type Front Fixing | ||
Contact Current 4A | ||
Terminal Type Screw | ||
Pole and Throw Configuration 4PST | ||
Contact Voltage 220V dc, 500V dc | ||
Minimum Operating Temperature -25°C | ||
Mechanical Durability 10Mcycles | ||
Rated Insulation Voltage Ui 690V | ||
Mounting Location Top Mounting | ||
Operational Current Ie 4A | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals UL 508, VDE 0660, CE marking, CSA, IEC/EN 60947-4-1, UL, CSA-C22.2 No. 14-05, IEC/EN 60947 | ||
- Land van herkomst:
- RO
Eaton Auxiliary Contact, 2NC/2NO, IP20 Rating - DILEM Series - 010112 22DILEM
Features & Benefits
Does this unit offer ingress protection?
