NTN 6811JRLLU/5K 1 Row Deep Groove Ball Bearing - 55 mm ID, 72 mm OD
- RS-stocknr.:
- 148-763
- Fabrikantnummer:
- 6811JRLLU/5K
- Fabrikant:
- NTN
Subtotaal (1 eenheid)*
€ 65,49
(excl. BTW)
€ 79,24
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 65,49 |
*prijsindicatie
- RS-stocknr.:
- 148-763
- Fabrikantnummer:
- 6811JRLLU/5K
- Fabrikant:
- NTN
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | NTN | |
| Inside Diameter | 55 mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 72 mm | |
| Race Width | 9mm | |
| Cage Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 8.1kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 9.75kN | |
| Standards/Approvals | No | |
| Limiting Speed | 4800rpm | |
| Bearing Type | Deep Groove | |
| Alles selecteren | ||
|---|---|---|
Merk NTN | ||
Inside Diameter 55 mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 72 mm | ||
Race Width 9mm | ||
Cage Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 8.1kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 9.75kN | ||
Standards/Approvals No | ||
Limiting Speed 4800rpm | ||
Bearing Type Deep Groove | ||
Vrijgesteld
- Land van herkomst:
- JP

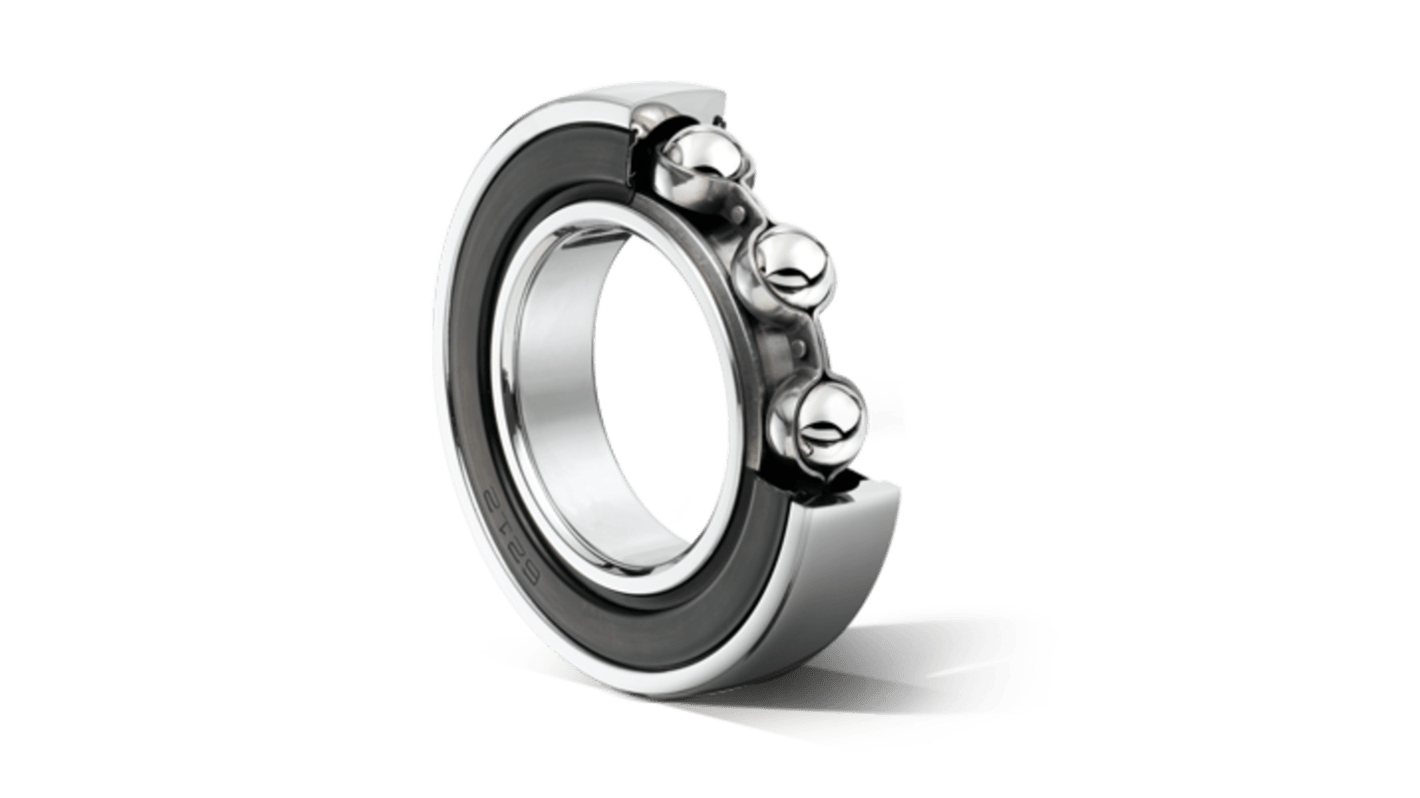

The NTN Ball Bearing features a single row deep groove and a radial contact design, allowing it to support both radial and axial loads. It is constructed with a pressed steel cage that ensures optimal ball spacing and minimizes friction. Additionally, the bearing is equipped with contact seals on both sides to protect against dirt and moisture, enhancing its durability and performance in various applications.
Inner ring width is 9 mm
Radial clearance class is CN
Operating temperature is 25 °C to 110 °C
