FAG 6002-C-2HRS 1 Row Ball Bearing - 15 mm ID, 32 mm OD
- RS-stocknr.:
- 137-1590
- Fabrikantnummer:
- 6002-C-2HRS
- Fabrikant:
- FAG
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 5,54
(excl. BTW)
€ 6,70
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 29 stuk(s) klaar voor verzending
- 360 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 5,54 |
| 5 - 9 | € 5,31 |
| 10 - 24 | € 5,22 |
| 25 + | € 5,12 |
*prijsindicatie
- RS-stocknr.:
- 137-1590
- Fabrikantnummer:
- 6002-C-2HRS
- Fabrikant:
- FAG
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | FAG | |
| Inside Diameter | 15mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 32mm | |
| Race Width | 9mm | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 2.85kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 6.3kN | |
| Bore Type | Parallel | |
| Series | 0 Extra Light | |
| Standards/Approvals | No | |
| Limiting Speed | 20300rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Alles selecteren | ||
|---|---|---|
Merk FAG | ||
Inside Diameter 15mm | ||
Product Type Ball Bearing | ||
Outside Diameter 32mm | ||
Race Width 9mm | ||
Cage Material Steel | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 2.85kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 6.3kN | ||
Bore Type Parallel | ||
Series 0 Extra Light | ||
Standards/Approvals No | ||
Limiting Speed 20300rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||

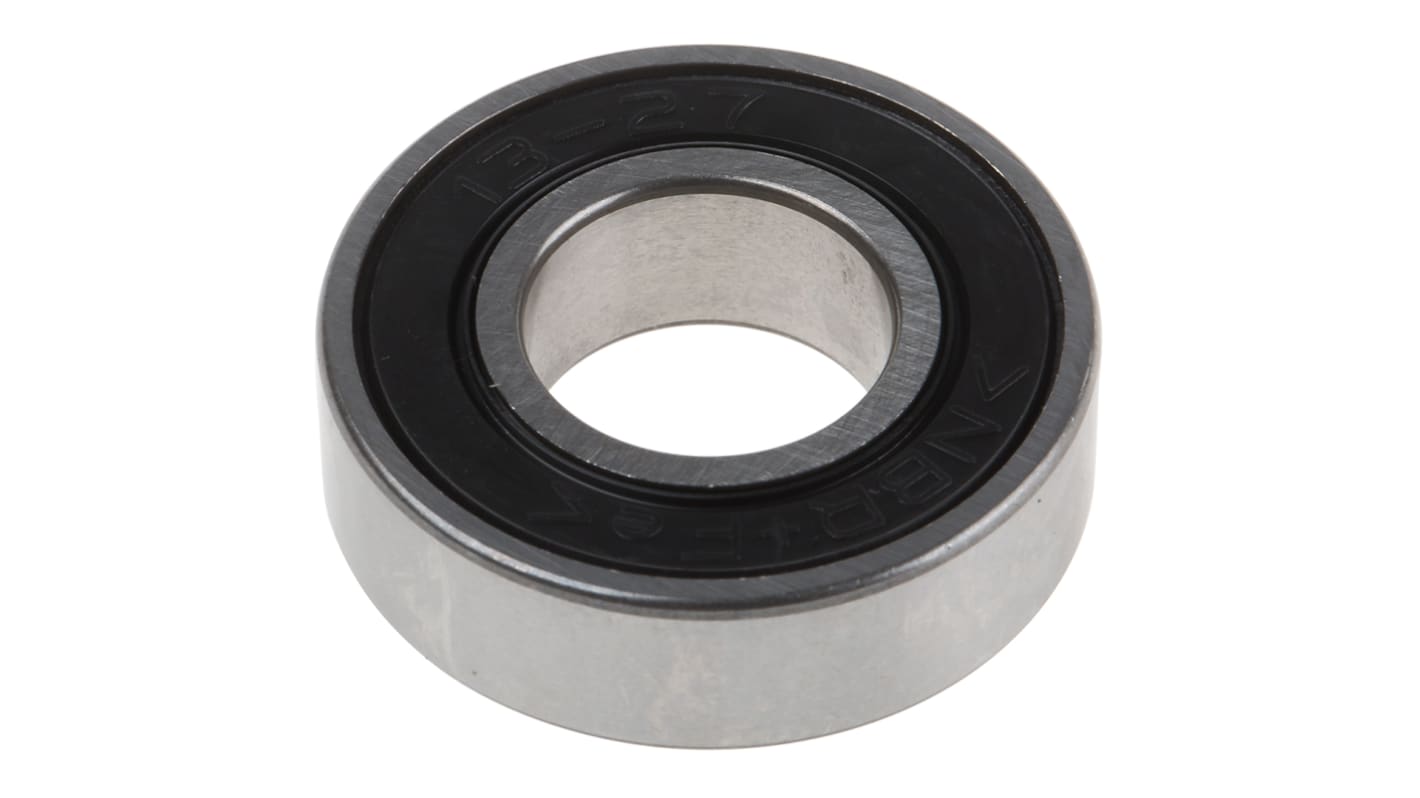

Schaeffler Ball Bearing, 15mm Inside Diameter, 32mm Outside Diameter - 6002-C-2HRS
This ball bearing is a high-performance 6002-C-2HRS model, designed for reliable operation in various applications. With an inside diameter of 15mm and an outside diameter of 32mm, its single row deep groove design ensures effective load distribution. The dual sealing arrangement and robust steel construction make it suitable for demanding environments, providing long-lasting performance.
Features & Benefits
• Single row deep groove design optimises load capacity and efficiency
• Sealed on both sides to protect against contaminants and prolong lifespan
• Constructed from steel for durability and strength under load
• High static load rating of 2.85 kN ensures stability
• Designed for parallel bore for versatile fitting options
• Suitable for dynamic loads up to 6.3 kN, enhancing performance in various applications
Applications
• Utilised in automation systems for efficient motion control
• Applicable in electrical equipment for reliable mechanical performance
• Integrated into mechanical assemblies for seamless operation
• Ideal for precision instruments requiring high load support
What are the advantages of choosing a sealed bearing?
Sealed bearings prevent dirt and moisture from entering, thus significantly extending their service life. They require less maintenance, making them ideal for applications with limited access for cleaning.
How does the material impact the bearing's performance?
Steel construction provides excellent strength and resistance to deformation. It also contributes to a higher load capacity compared to other materials, thus ensuring reliability under dynamic stress.
What are the implications of the bearing clearance code CN?
The CN (normal) clearance code indicates a standard internal clearance that accommodates various operational conditions, allowing for smooth rotation while preventing excessive play.
