SKF 51305 1 Row Ball Bearing - 25 mm ID, 52 mm OD
- RS-stocknr.:
- 207-6309
- Fabrikantnummer:
- 51305
- Fabrikant:
- SKF
Subtotaal (1 eenheid)*
€ 39,83
(excl. BTW)
€ 48,19
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 3 stuk(s) vanaf 05 oktober 2026
- Plus verzending 40 stuk(s) vanaf 05 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 39,83 |
*prijsindicatie
- RS-stocknr.:
- 207-6309
- Fabrikantnummer:
- 51305
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Inside Diameter | 25mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 52mm | |
| Race Width | 18mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 60kN | |
| Dynamic Load Rating | 34.5kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Series | 1 Extra Light Thrust | |
| Limiting Speed | 6300rpm | |
| Bearing Type | Thrust Ball | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Inside Diameter 25mm | ||
Product Type Ball Bearing | ||
Outside Diameter 52mm | ||
Race Width 18mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 60kN | ||
Dynamic Load Rating 34.5kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Series 1 Extra Light Thrust | ||
Limiting Speed 6300rpm | ||
Bearing Type Thrust Ball | ||

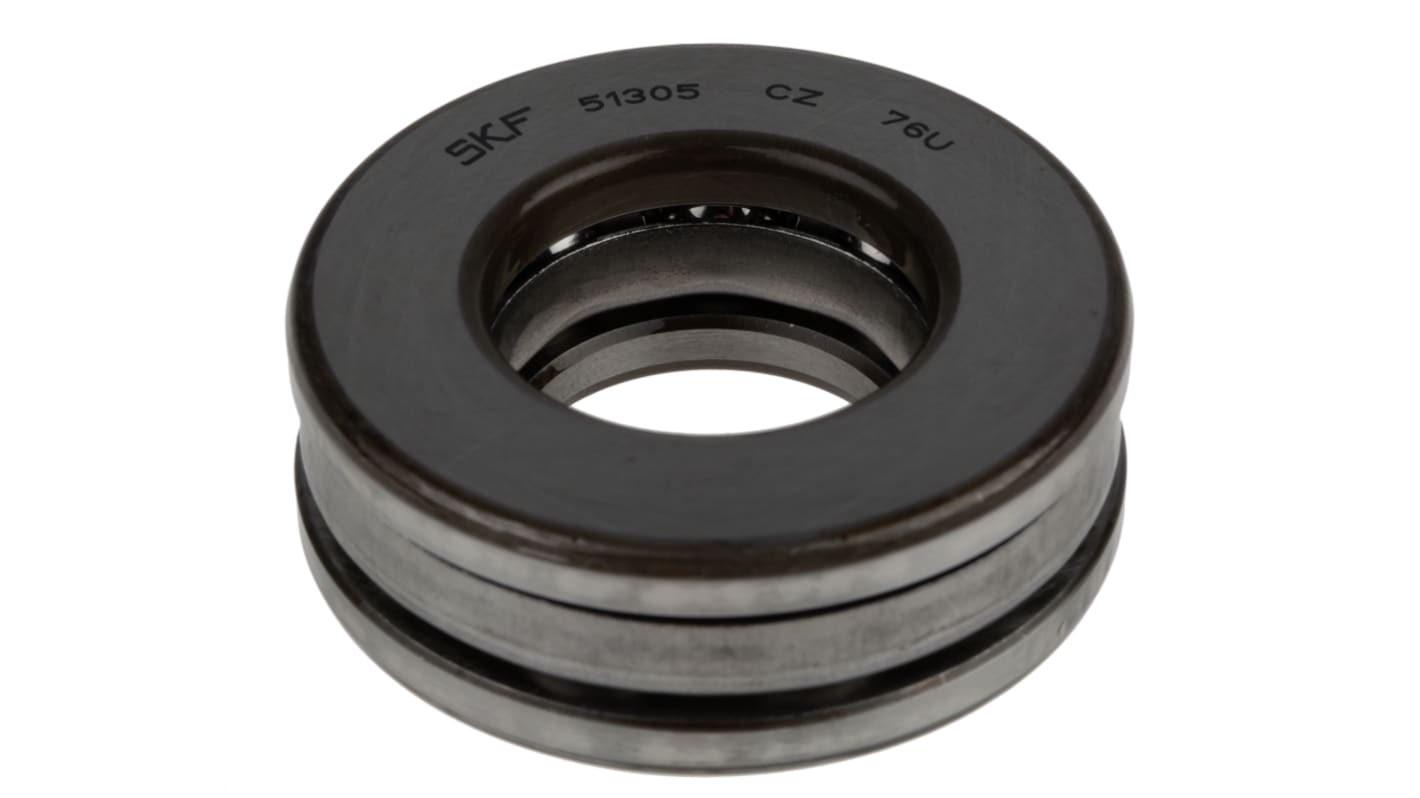

SKF Ball Bearing, Single-Direction Thrust, 25mm ID, 52mm OD - 51305
Need a bearing that's easy to mount? Try this single-direction thrust bearing from SKF. It's separable, which means you can assemble its shaft and housing individually for easy installation. The unit's cage is designed to separate its rolling elements, which reduces the build-up of frictional heat. It also helps to keep the balls evenly spaced, so you benefit from optimal load distribution. This component locates a shaft axially in one rotational direction only, and it's commonly used in equipment like fans, blowers and rotary compressors.
• Steel cage is resistant to corrosion and impact to withstand demanding operating environments
• Low weight of 0.17kg, so adds minimal strain to machinery
• Dimensions of 25 (ID) and 52mm (OD), so suitable for small to medium-sized applications
Applications
• Agriculture and forestry equipment
• Automotive manufacturing
• Fluid machinery
• Material handling
How do I tell the difference between the housing and shaft washer of this bearing?
You can determine which washer is which by looking at the size of the bores. The housing washer has a larger bore, while the bore of the shaft washer is ground and smaller.
