SKF 52209 2 Row Ball Bearing - 35 mm ID, 73 mm OD
- RS-stocknr.:
- 207-6457
- Fabrikantnummer:
- 52209
- Fabrikant:
- SKF
Subtotaal (1 eenheid)*
€ 143,56
(excl. BTW)
€ 173,71
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 21 december 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 143,56 |
*prijsindicatie
- RS-stocknr.:
- 207-6457
- Fabrikantnummer:
- 52209
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 35mm | |
| Outside Diameter | 73mm | |
| Race Width | 37mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Static Load Rating | 86.5kN | |
| Dynamic Load Rating | 39kN | |
| Bore Type | Parallel | |
| Series | 2 Light | |
| Standards/Approvals | No | |
| Limiting Speed | 3600rpm | |
| Bearing Type | Thrust Ball | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 35mm | ||
Outside Diameter 73mm | ||
Race Width 37mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 2 | ||
Internal Clearance CN | ||
Static Load Rating 86.5kN | ||
Dynamic Load Rating 39kN | ||
Bore Type Parallel | ||
Series 2 Light | ||
Standards/Approvals No | ||
Limiting Speed 3600rpm | ||
Bearing Type Thrust Ball | ||

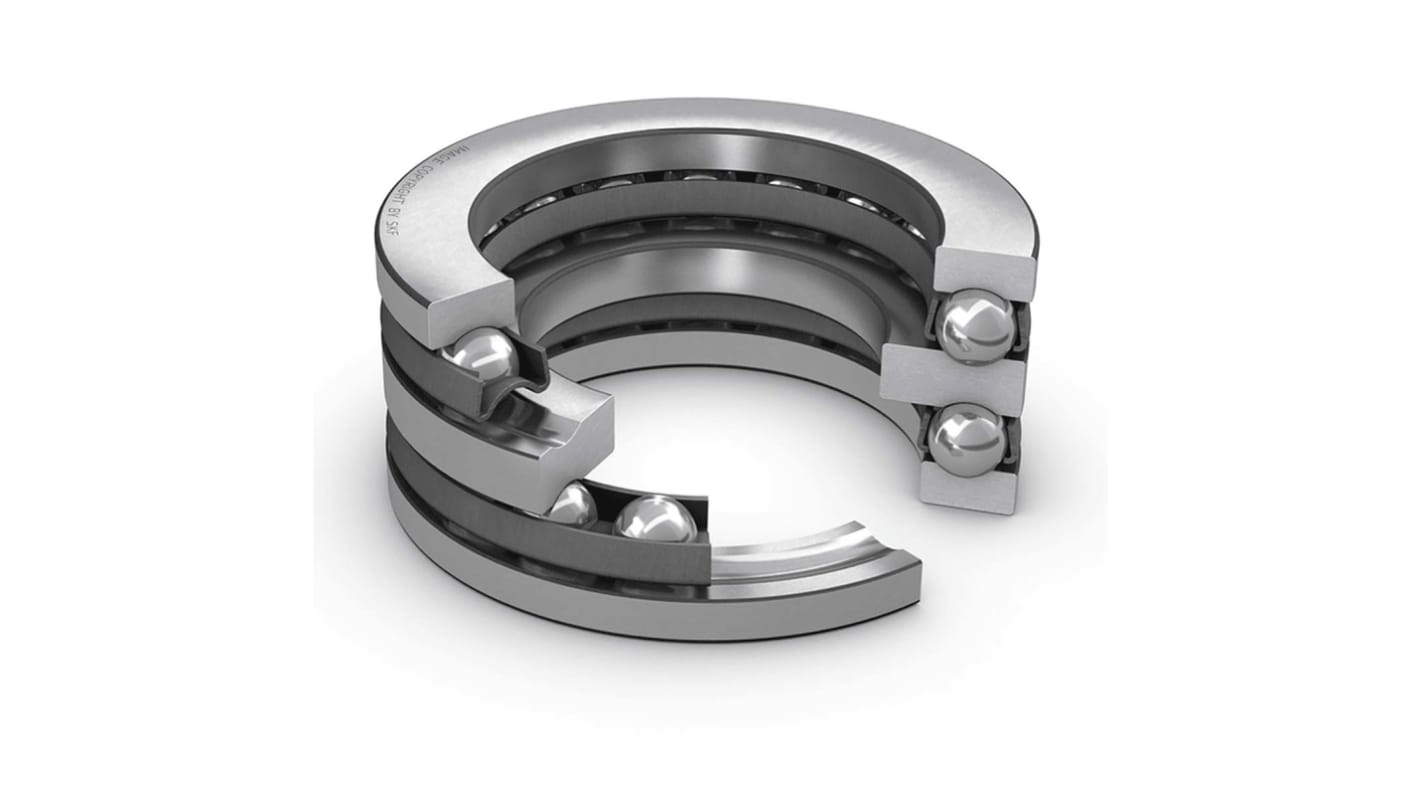

The SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. It has 35 mm ID and 73 mm OD.
Bearing material is of bearing steel
Cylindrical bore type
