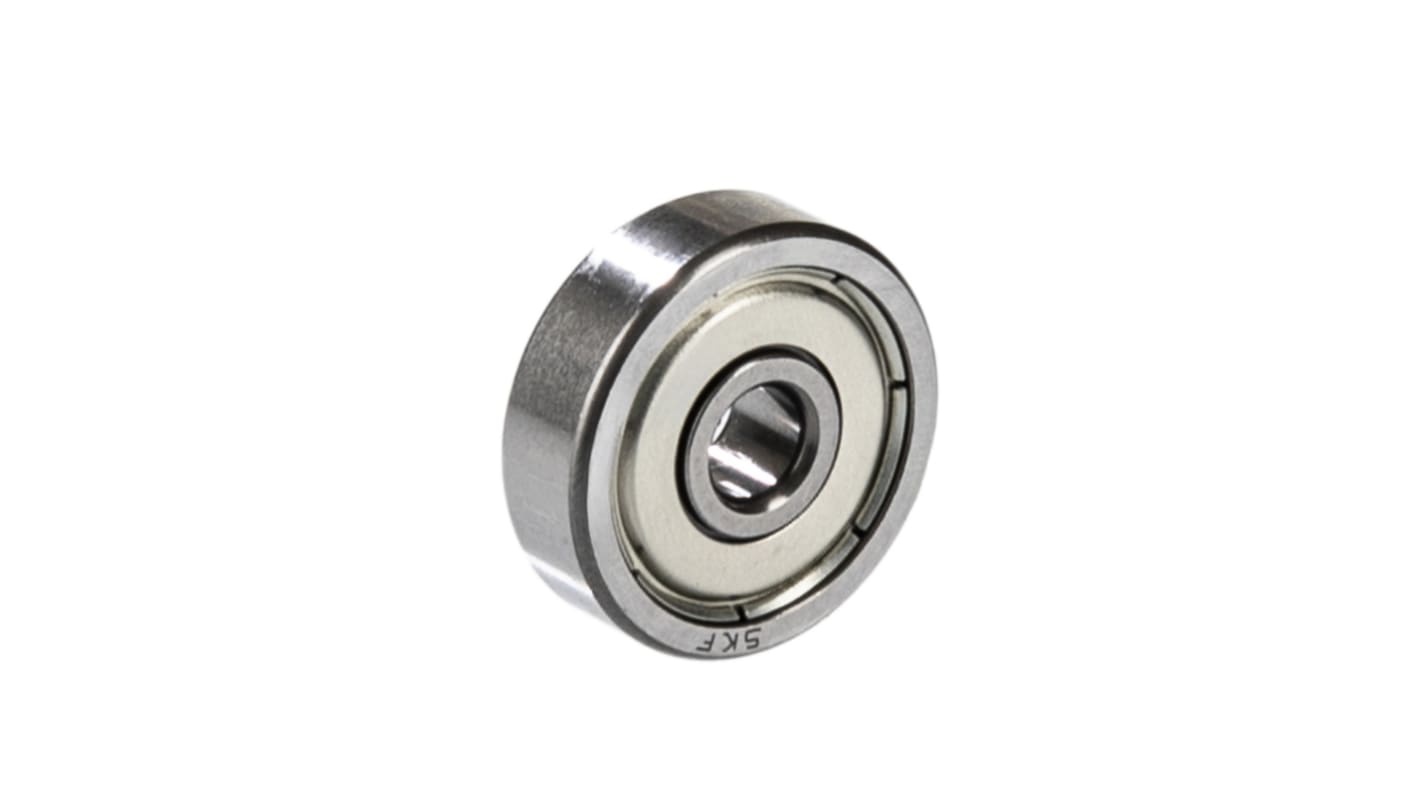

SKF 628/9-2Z 1 Row Deep Groove Ball Bearing - 9 mm ID, 17 mm OD
- RS-stocknr.:
- 207-8239
- Fabrikantnummer:
- 628/9-2Z
- Fabrikant:
- SKF
Subtotaal (1 eenheid)*
€ 16,19
(excl. BTW)
€ 19,59
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 5 stuk(s) vanaf 07 september 2026
- Plus verzending 4 stuk(s) vanaf 07 september 2026
- Plus verzending 50 stuk(s) vanaf 14 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 16,19 |
*prijsindicatie
- RS-stocknr.:
- 207-8239
- Fabrikantnummer:
- 628/9-2Z
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Inside Diameter | 9mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 17mm | |
| Race Width | 5mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 0.34kN | |
| Dynamic Load Rating | 871N | |
| Bore Type | Parallel | |
| Series | 628 | |
| Standards/Approvals | No | |
| Limiting Speed | 43000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Inside Diameter 9mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 17mm | ||
Race Width 5mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 0.34kN | ||
Dynamic Load Rating 871N | ||
Bore Type Parallel | ||
Series 628 | ||
Standards/Approvals No | ||
Limiting Speed 43000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
SKF Deep Groove Ball Bearing, 17mm Outside Diameter, 871 N Dynamic Load Rating - 628/9-2Z
This deep groove ball bearing is designed for various applications requiring dependable support and durability. With an inner diameter of 9mm and an outer diameter of 17mm, it is a single row bearing suitable for a range of industrial uses. The steel composition enhances its strength, while the shielded design offers protection against contaminants and ensures minimal maintenance.
Features & Benefits
• Single row configuration aids in space-saving designs
• Steel construction provides high load durability
• Cylinder bore type for direct shaft fit
• Shielded on both sides to keep dirt away
• Established dynamic load rating of 871N
• Suitable for moderate speed applications with CN clearance
Applications
• Used in electrical motors for dependable operation
• Suitable for precision machinery needing compact bearings
• Employed in automotive components for effective performance
• Ideal for automation equipment for efficient functionality
• Utilised in household appliances ensuring smooth movement
Is it suitable for miniature applications?
Yes, its dimensions make it a good fit for miniature uses.
Will it provide protection against external contaminants?
Yes, the dual shielded design safeguards against dirt ingress.
