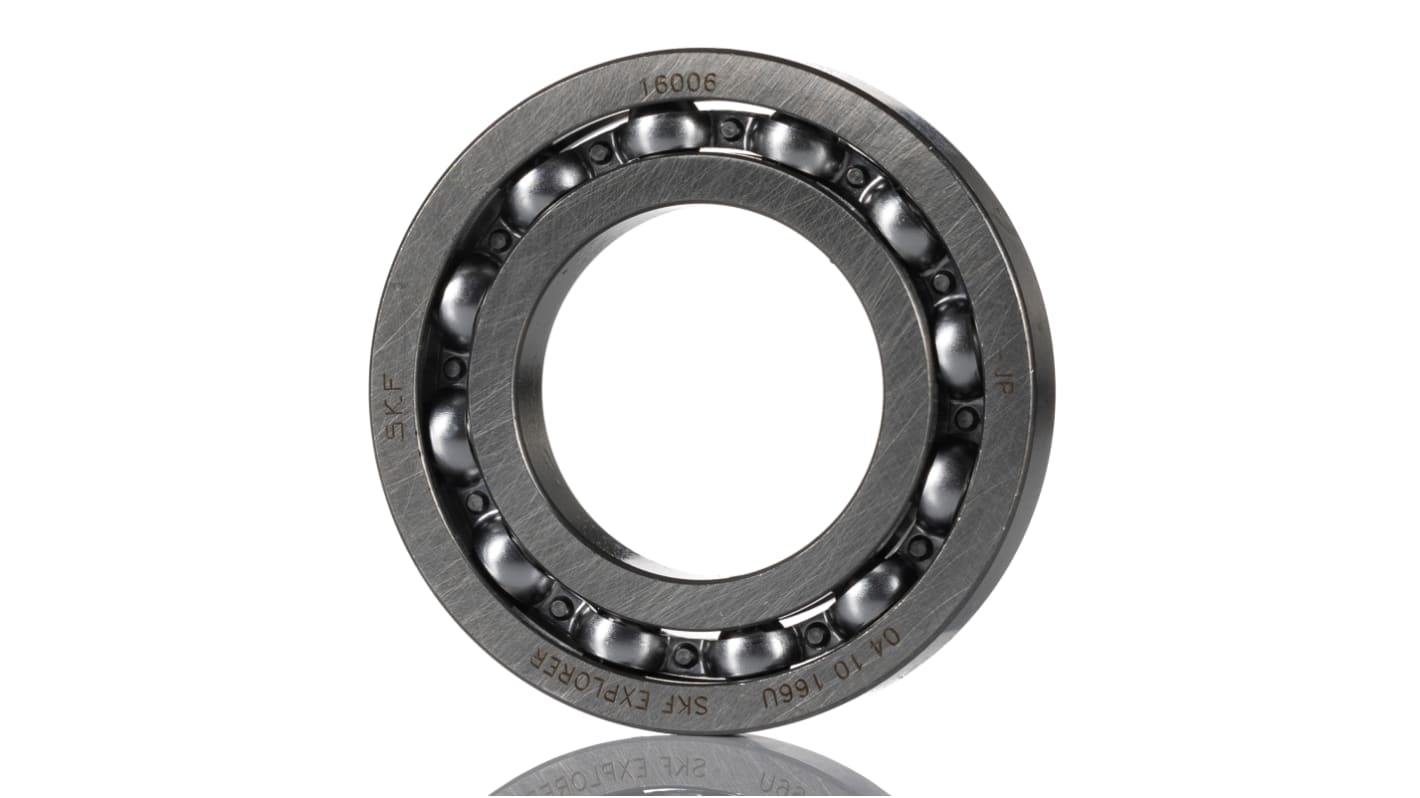

SKF 16006 1 Row Ball Bearing - 30 mm ID, 55 mm OD
- RS-stocknr.:
- 209-1833
- Fabrikantnummer:
- 16006
- Fabrikant:
- SKF
Subtotaal (1 eenheid)*
€ 18,19
(excl. BTW)
€ 22,01
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 10 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 18,19 |
*prijsindicatie
- RS-stocknr.:
- 209-1833
- Fabrikantnummer:
- 16006
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Inside Diameter | 30mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 55mm | |
| Race Width | 9mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 7.35kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 11.9kN | |
| Standards/Approvals | No | |
| Series | 0 Extra Light | |
| Bore Type | Parallel | |
| Limiting Speed | 17000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Inside Diameter 30mm | ||
Product Type Ball Bearing | ||
Outside Diameter 55mm | ||
Race Width 9mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 7.35kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 11.9kN | ||
Standards/Approvals No | ||
Series 0 Extra Light | ||
Bore Type Parallel | ||
Limiting Speed 17000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
SKF Ball Bearing, Deep-Groove Bearing Type, 30mm ID, 55mm OD - 16006
Get your loads off to a flying start with this single-row ball bearing from SKF. Designed with a deep groove, it's a smooth mover that keeps friction, vibration and noise to a minimum, boosting the comfort of your workplace. It handles radial and axial loads in both directions with a limiting speed of 17,000r/min and a dynamic load rating of 11.9kN, so you can be sure it can take the pressure of your high-performance applications. A cylindrical bore means it's a cinch to fit the unit onto a shaft, while the flat ends make it easier to stack ball bearings side-by-side when greater support is needed.
Features & Benefits
• Open-end design allows you to add your choice of lubrication after installation
• Compact outside diameter of 55mm and race width of 9mm to fit in tight spaces
Applications
• Robotics systems
• Pumps and fans
• Electric motors
• Lifts and conveyors
What's this ball bearing made from?
The ball bearing has a sheet metal cage and steel rings that not only ensure it's strong but also resistant to wear and corrosion. This helps you to keep machine maintenance to a minimum.
