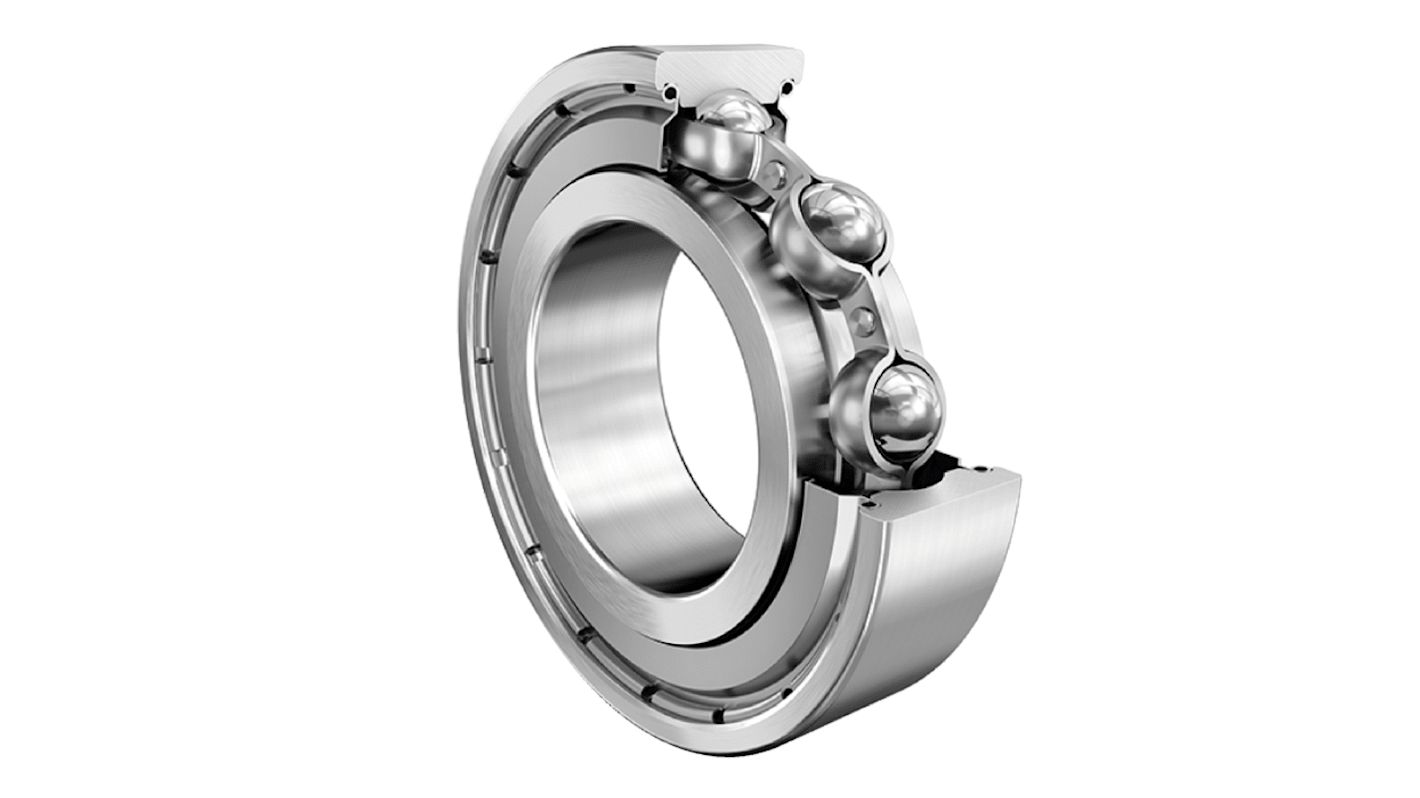

FAG 61900-2Z-HLC 1 Row Ball Bearing - 10 mm ID, 22 mm OD
- RS-stocknr.:
- 260-0693
- Fabrikantnummer:
- 61900-2Z-HLC
- Fabrikant:
- FAG
Subtotaal (1 verpakking van 10 eenheden)*
€ 176,80
(excl. BTW)
€ 213,90
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 30 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 30 stuk(s) vanaf 01 december 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 10 + | € 17,68 | € 176,80 |
*prijsindicatie
- RS-stocknr.:
- 260-0693
- Fabrikantnummer:
- 61900-2Z-HLC
- Fabrikant:
- FAG
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 10mm | |
| Outside Diameter | 22mm | |
| Race Width | 6mm | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| Race Material | Bearing Steel | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 1.02kN | |
| Dynamic Load Rating | 2.7kN | |
| Series | 61900-2Z | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 41000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Flange Outside Diameter | 22mm | |
| Race Type | Deep Groove | |
| Alles selecteren | ||
|---|---|---|
Merk FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 10mm | ||
Outside Diameter 22mm | ||
Race Width 6mm | ||
Cage Material Steel | ||
Ball Material Steel | ||
Race Material Bearing Steel | ||
End Type Closed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 1.02kN | ||
Dynamic Load Rating 2.7kN | ||
Series 61900-2Z | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 41000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Flange Outside Diameter 22mm | ||
Race Type Deep Groove | ||
- Land van herkomst:
- JP
Schaeffler 61900-2Z Series Ball Bearing, 22mm Outside Diameter, 10mm Inside Diameter - 61900-2Z-HLC
This ball bearing is a single-row deep-groove component designed to support radial loads and permit high rotational speeds in Compact assemblies. It is intended for applications requiring sealed protection and robust steel construction, operating across a wide temperature range and suited to miniature mechanical systems.
Features and Benefits:
• 41,000 r/min limiting speed enables high-speed rotational performance
• 2.7 kN dynamic load rating sustains cyclic radial loads
• 1.02 kN static load capacity resists shock and standstill forces
• CN internal clearance accommodates thermal and assembly variations
• Steel sheet-metal cage provides structural stability under load
• 2.7 kN dynamic load rating sustains cyclic radial loads
• 1.02 kN static load capacity resists shock and standstill forces
• CN internal clearance accommodates thermal and assembly variations
• Steel sheet-metal cage provides structural stability under load
Applications
• Suitable for precision electric motor spindles
• Ideal for miniature gearbox rotating elements
• Used with small fans and blowers in Compact equipment
• Can be used for rotary encoders and instrumentation shafts
• Suitable for handheld power-tool bearings requiring sealed units
• Ideal for miniature gearbox rotating elements
• Used with small fans and blowers in Compact equipment
• Can be used for rotary encoders and instrumentation shafts
• Suitable for handheld power-tool bearings requiring sealed units
What temperature range can it operate within?
It functions between -30°C and 120°C as specified for operating conditions.
How does the sealing affect maintenance intervals?
The shielded design reduces ingress of contaminants, decreasing lubrication refresh frequency.
What shaft and housing shoulder dimensions are required for proper mounting?
Minimum shaft shoulder diameter is 12 mm and maximum housing shoulder diameter is 20 mm.
What are the recommended fillet and chamfer allowances for installation?
Maximum fillet radius on shoulders is 0.3 mm and minimum chamfer depth required is 0.3 mm.
What reference speed should be considered for sustained operation?
Use the 27,000 r/min reference speed for continuous-duty calculations.
