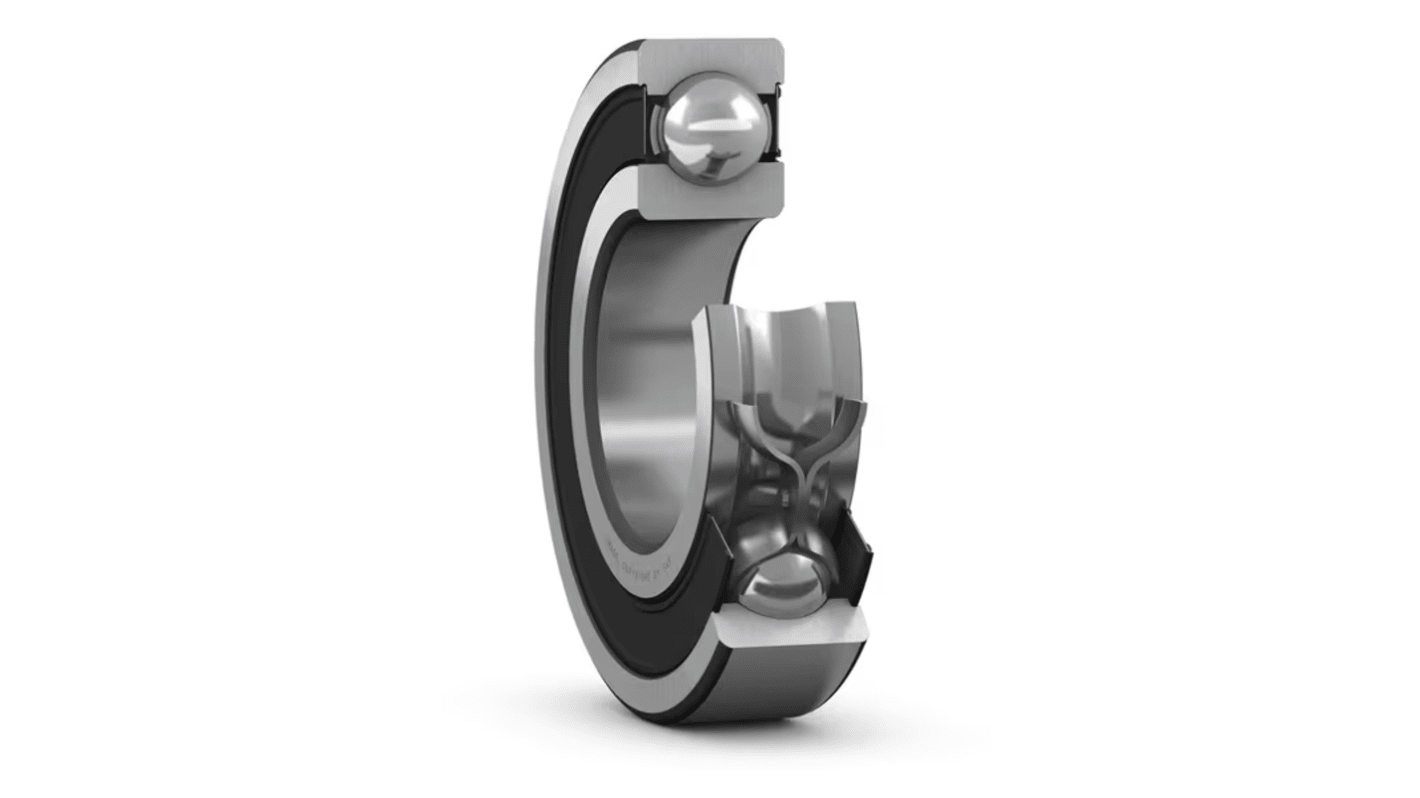

SKF 6006-2RS1/C3 1 Row Ball Bearing - 30 mm ID, 55 mm OD

RS-stocknr.:: 667-1144
Fabrikantnummer:: 6006-2RS1/C3
Fabrikant:: SKF

SKF 6006-2RS1/C3 1 Row Ball Bearing - 30 mm ID, 55 mm OD

Bekijk alle Ball Bearings

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 eenheid)*

€ 12,41

(excl. BTW)

€ 15,02

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

40 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 12,41
5 - 9	€ 11,90
10 - 24	€ 11,69
25 +	€ 11,43

*prijsindicatie

RS-stocknr.:: 667-1144
Fabrikantnummer:: 6006-2RS1/C3
Fabrikant:: SKF

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	SKF
	Inside Diameter	30mm
	Product Type	Ball Bearing
	Outside Diameter	55mm
	Race Width	13mm
	Cage Material	Sheet Metal
	Ball Material	Steel
	End Type	Sealed
	Number of Rows	1
	Static Load Rating	8.3kN
	Internal Clearance	C3
	Dynamic Load Rating	13.8kN
	Standards/Approvals	No
	Series	6006
	Bore Type	Parallel
	Limiting Speed	8000rpm
	Race Type	Plain
	Bearing Type	Single Row Deep Groove Ball

	Alles selecteren
	Merk SKF
	Inside Diameter 30mm
	Product Type Ball Bearing
	Outside Diameter 55mm
	Race Width 13mm
	Cage Material Sheet Metal
	Ball Material Steel
	End Type Sealed
	Number of Rows 1
	Static Load Rating 8.3kN
	Internal Clearance C3
	Dynamic Load Rating 13.8kN
	Standards/Approvals No
	Series 6006
	Bore Type Parallel
	Limiting Speed 8000rpm
	Race Type Plain
	Bearing Type Single Row Deep Groove Ball

Vrijgesteld

SKF 0 Extra Light Series Ball Bearing, 13.8 kN Dynamic Load Rating, 55mm Outside Diameter - 6006-2RS1/C3

This ball bearing is part of the single row deep groove category and is designed for a variety of applications. It features seals on both sides, which helps to reduce friction and noise during operation. With an inside diameter of 30mm and an outside diameter of 55mm, it is suitable for high rotational speeds and effective load management.

Features & Benefits

• Simple design allows for easy mounting

• Low friction enhances operational efficiency

• Capable of accommodating radial and axial loads in both directions

Applications

• Utilised in electric motors and generators

• Appropriate for conveyor systems in automation

• Applied in HVAC equipment to ensure smooth operation

• Used in robotics and machinery for consistent performance

Can it accommodate both radial and axial loads?

Yes, it supports loads in both directions.

Is it suitable for high-speed applications?

Yes, it is optimised for high rotational speeds.

What is the bearing clearance specification?

The clearance code is C3, indicating a larger internal clearance.
