SKF W 61804-2RS1 1 Row Ball Bearing - 20 mm ID, 32 mm OD
- RS-stocknr.:
- 893-0325
- Fabrikantnummer:
- W 61804-2RS1
- Fabrikant:
- SKF
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 46,08
(excl. BTW)
€ 55,76
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 14 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 46,08 |
| 5 - 9 | € 44,21 |
| 10 - 24 | € 43,30 |
| 25 + | € 42,38 |
*prijsindicatie
- RS-stocknr.:
- 893-0325
- Fabrikantnummer:
- W 61804-2RS1
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 20mm | |
| Outside Diameter | 32mm | |
| Race Width | 7mm | |
| Ball Material | Stainless Steel | |
| Cage Material | Sheet Metal | |
| Race Material | Stainless Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 2.08kN | |
| Dynamic Load Rating | 3.12kN | |
| Series | 1 Extra Light Thrust | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 13000rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 20mm | ||
Outside Diameter 32mm | ||
Race Width 7mm | ||
Ball Material Stainless Steel | ||
Cage Material Sheet Metal | ||
Race Material Stainless Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 2.08kN | ||
Dynamic Load Rating 3.12kN | ||
Series 1 Extra Light Thrust | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 13000rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
Vrijgesteld
- Land van herkomst:
- JP

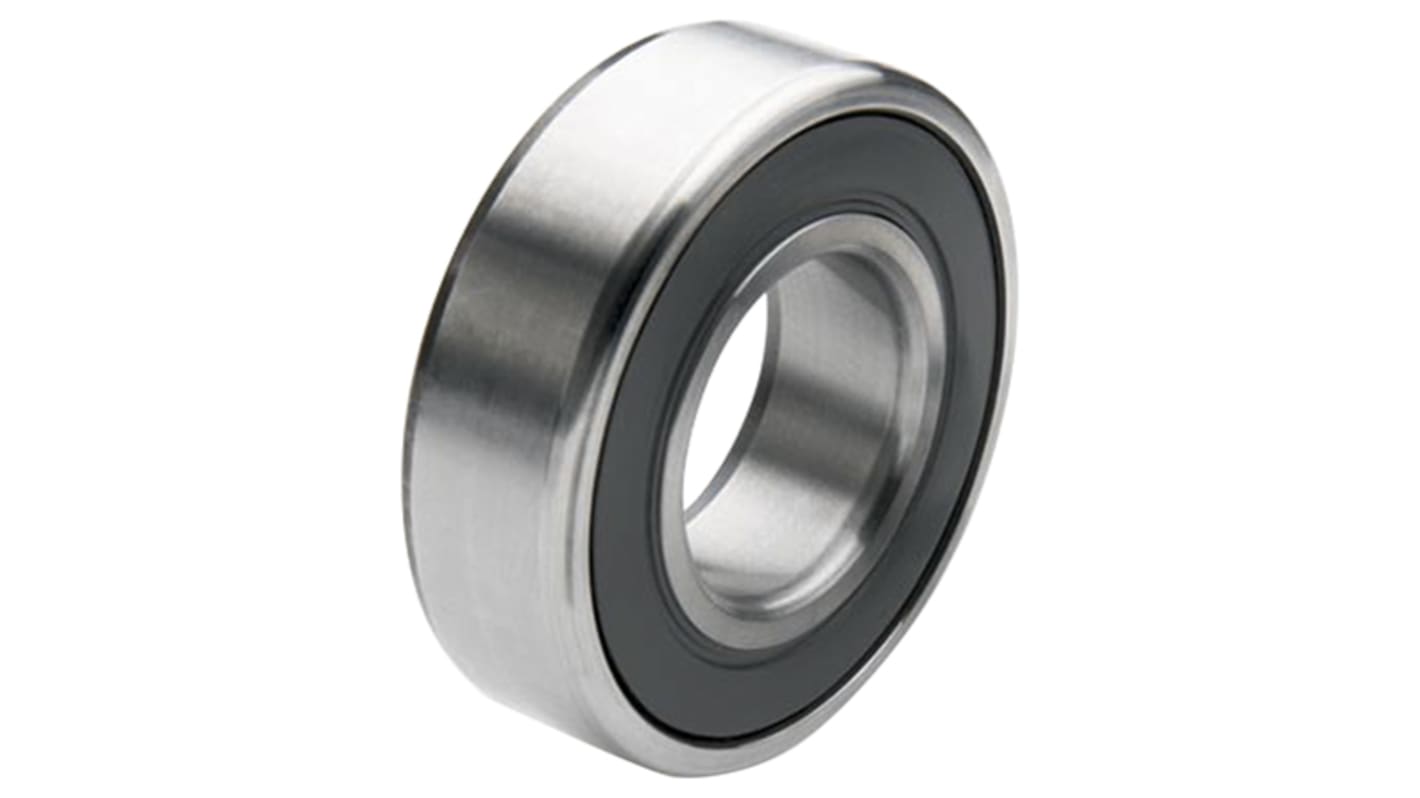

SKF Ball Bearing, Deep-Groove Bearing Type, Sealed, 20mm ID, 32mm OD - W61804-2RS1
Keep your machines in the running for a long time with this durable ball bearing from SKF. Made from stainless steel, it's resistant to chemicals and corrosion. A nitrile rubber seal on both sides keeps lubricants in and dirt out, lightening the load of maintenance. This means it's built for manufacturing environments where dust and moisture are present. As a deep-groove type of bearing, it's designed to smooth out friction, noise and vibration, to help machines move efficiently. It reaches speeds up to 13,000 revolutions per minute without feeling the heat, so you're free to crank your motors up a gear.
Features & Benefits
• Cylindrical shape for easy mounting on a shaft
• Supports radial and axial loads in both directions, making it a good all-rounder
• Dynamic load rating of 3.12kN deals with the pressure of weighty applications
Applications
• Food and beverage factories
• Pharmaceutical industry
• Chemical processing
• Offshore and marine equipment
What are radial and axial loads?
Radial loads are the forces pushing down on a shaft as it turns. Axial loads are the forces travelling along the length of the shaft. Many specialist bearings can handle just one or the other, not both.
