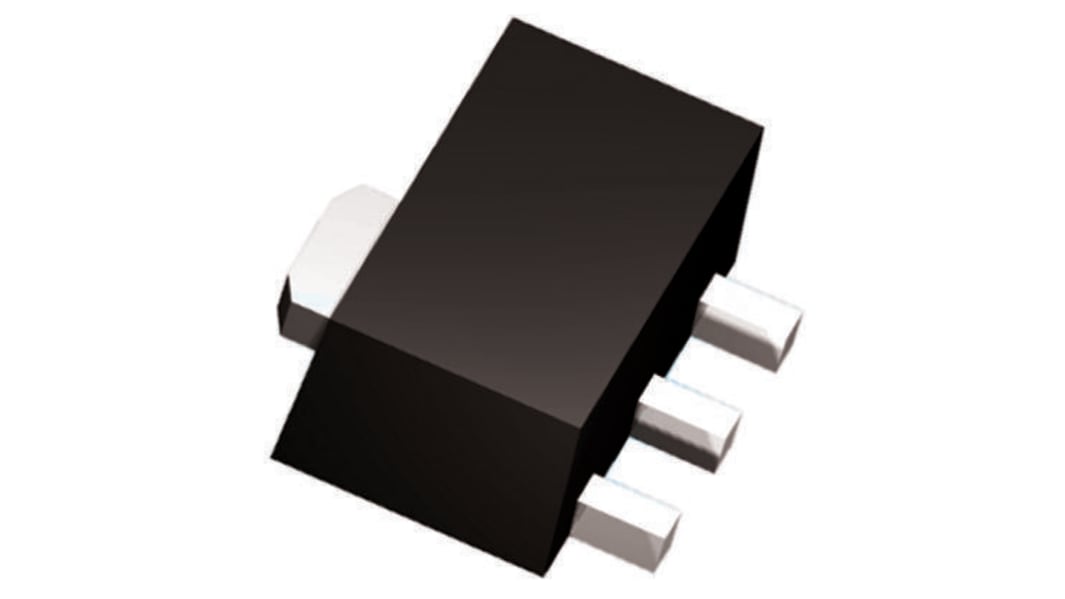

Nexperia PBSS4480X,135 Transistor, 4 A NPN, 80 V, 4-Pin UPAK
- RS-stocknr.:
- 518-1700
- Fabrikantnummer:
- PBSS4480X,135
- Fabrikant:
- Nexperia
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 verpakking van 10 eenheden)*
€ 5,18
(excl. BTW)
€ 6,27
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 29 maart 2027
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 10 - 90 | € 0,518 | € 5,18 |
| 100 - 240 | € 0,473 | € 4,73 |
| 250 - 490 | € 0,443 | € 4,43 |
| 500 - 990 | € 0,411 | € 4,11 |
| 1000 + | € 0,374 | € 3,74 |
*prijsindicatie
- RS-stocknr.:
- 518-1700
- Fabrikantnummer:
- PBSS4480X,135
- Fabrikant:
- Nexperia
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Nexperia | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 4A | |
| Maximum Collector Emitter Voltage Vceo | 80V | |
| Package Type | UPAK | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 80V | |
| Maximum Transition Frequency ft | 150MHz | |
| Minimum Operating Temperature | -65°C | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Minimum DC Current Gain hFE | 80 | |
| Transistor Polarity | NPN | |
| Maximum Power Dissipation Pd | 2.5W | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 4 | |
| Length | 4.6mm | |
| Series | PBSS4480X | |
| Standards/Approvals | RoHS | |
| Height | 1.5mm | |
| Width | 2.5mm | |
| Automotive Standard | AEC-Q101 | |
| Alles selecteren | ||
|---|---|---|
Merk Nexperia | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 4A | ||
Maximum Collector Emitter Voltage Vceo 80V | ||
Package Type UPAK | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 80V | ||
Maximum Transition Frequency ft 150MHz | ||
Minimum Operating Temperature -65°C | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Minimum DC Current Gain hFE 80 | ||
Transistor Polarity NPN | ||
Maximum Power Dissipation Pd 2.5W | ||
Maximum Operating Temperature 150°C | ||
Pin Count 4 | ||
Length 4.6mm | ||
Series PBSS4480X | ||
Standards/Approvals RoHS | ||
Height 1.5mm | ||
Width 2.5mm | ||
Automotive Standard AEC-Q101 | ||
Low Saturation Voltage NPN Transistors
A range of NXP BISS (Breakthrough In Small Signal) Low Saturation Voltage NPN Bipolar Junction Transistors. These devices feature very low collector-emitter saturation voltages and high collector current capacities in Compact space-saving packages. The reduced losses of these transistors results in lower heat generation and an overall increase in efficiency when used in switching and digital applications.
