RS PRO Dial Bore Gauge Drill & Bore Hole Gauge, 1 piece
- RS-stocknr.:
- 785-7872
- Fabrikant:
- RS PRO
Subtotaal (1 eenheid)*
€ 194,90
(excl. BTW)
€ 235,83
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 16 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 1 stuk(s) vanaf 14 september 2026
- Plus verzending 1 stuk(s) vanaf 01 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 194,90 |
*prijsindicatie
- RS-stocknr.:
- 785-7872
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | Drill & Bore Hole Gauge | |
| Gauge Type | Dial Bore Gauge | |
| Number of Pieces | 1 | |
| Minimum Diameter Measured | 50mm | |
| Maximum Diameter Measured | 160mm | |
| Standards/Approvals | No | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type Drill & Bore Hole Gauge | ||
Gauge Type Dial Bore Gauge | ||
Number of Pieces 1 | ||
Minimum Diameter Measured 50mm | ||
Maximum Diameter Measured 160mm | ||
Standards/Approvals No | ||
Vrijgesteld
- Land van herkomst:
- CN
RS PRO Dial Bore Gauge Drill & Bore Hole Gauge, 1 piece

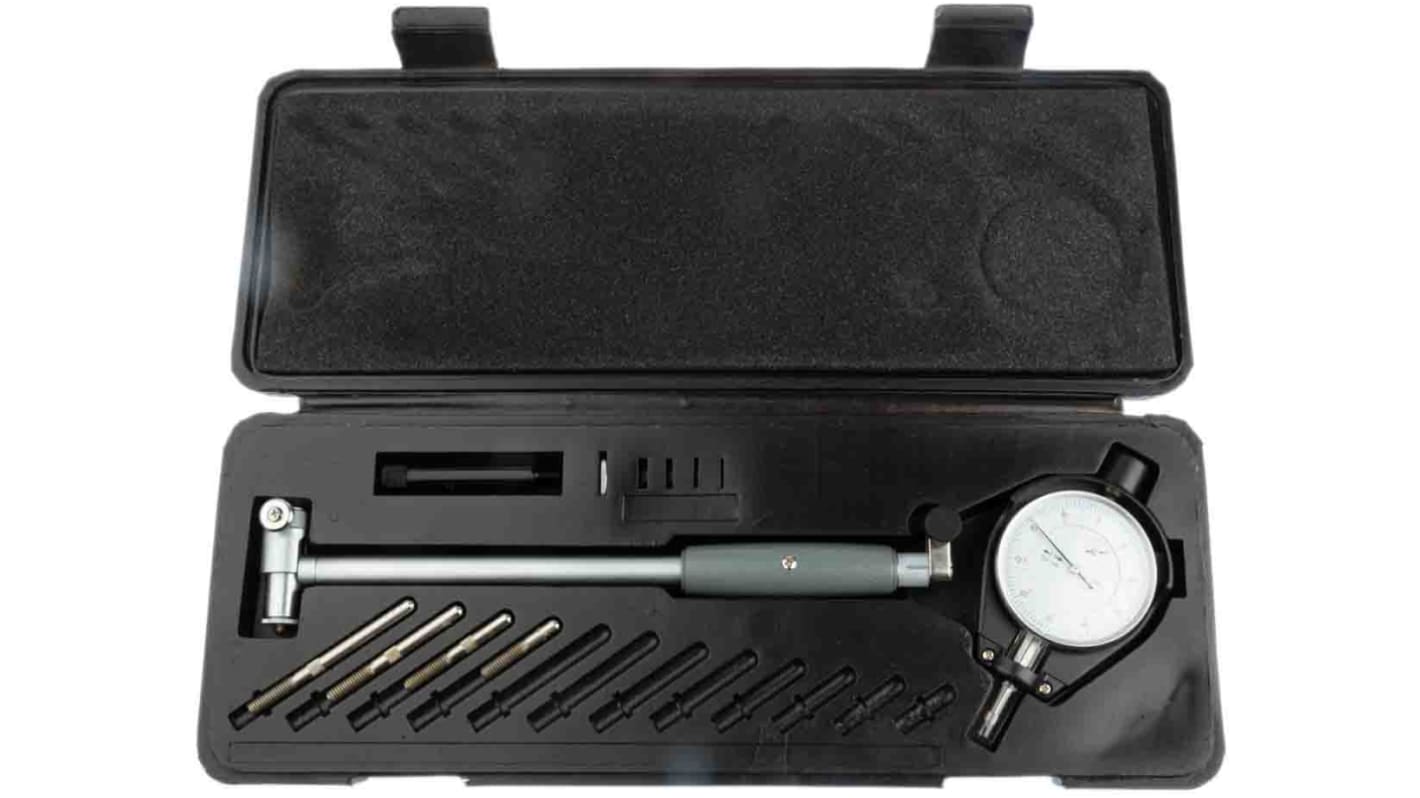

Designed to provide rapid and accurate measurement of the size, ovality and taper of bores, this drill and bore hole gauge set from RS PRO is suitable for use in both workshop and inspection settings.
The dial provides readings accurate to 0.01 mm to ensure the highest level of precision. There are five probes included in the set, each of which provides measurements within their specified range. The gauge has a spring-loaded centralising mechanism to ensure measurements are taken across the true diameter of the bore. The provided case is on hand to store and protect the dial, stem and probes.
This set is ideal for applications such as measuring the internal dimensions of engine cylinders to ensure they're within the manufacturer's tolerance levels. You'll find it used in automotive, manufacturing and fabrication situations.
Features and Benefits
• Drill and bore hole gauge
• Five probes with sizes of 50 mm to 62 mm, 62 mm to 74 mm, 74 mm to 86 mm, 86 mm to 98 mm and 98 mm to 110 mm
• Minimum diameter measured is 50 mm
• Maximum diameter measured is 160 mm
• Stem length of 150 mm
• Overall length of 340 mm
• Dial diameter of 57 mm
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
