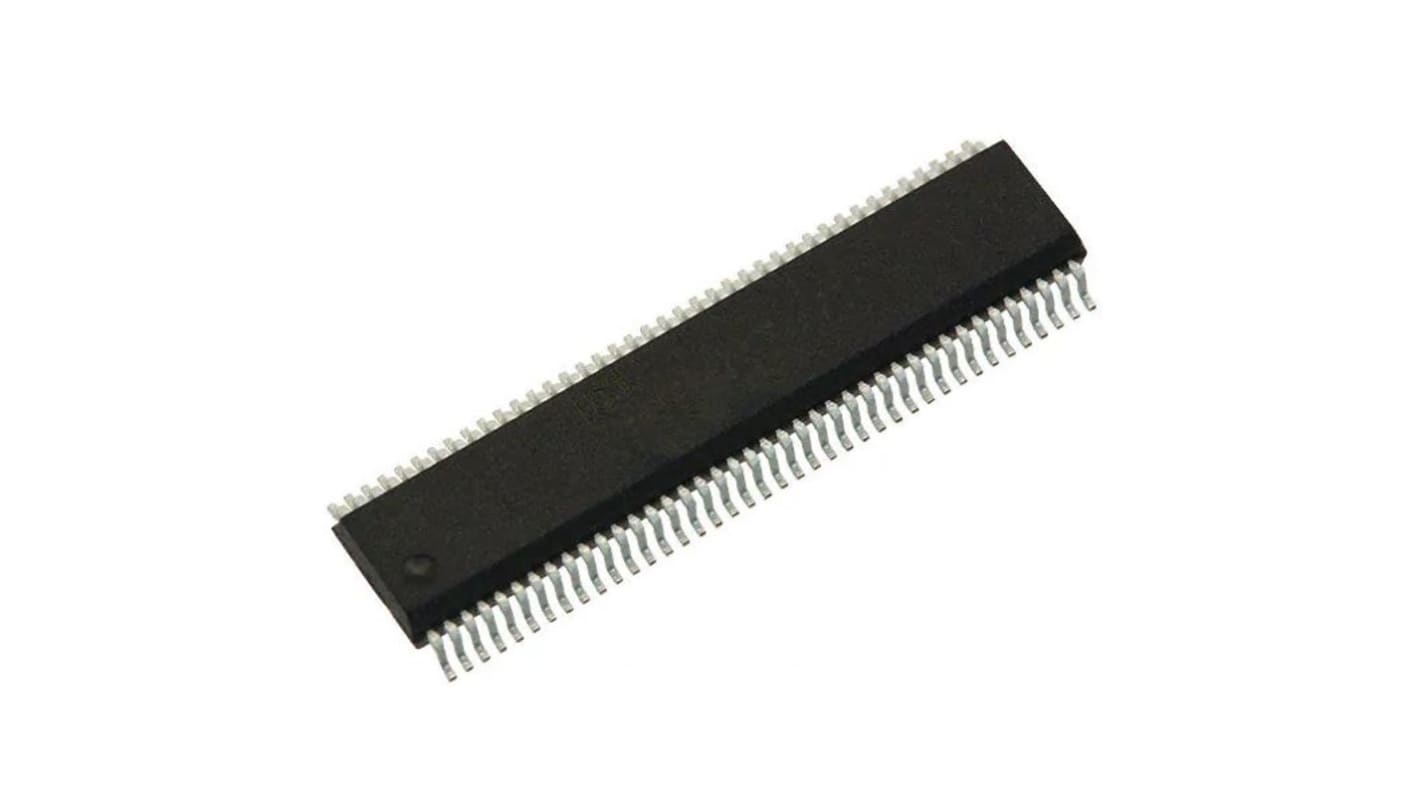

Renesas Electronics QS34X245Q3G, Bus Switch, 80-Pin QVSOP
- RS-stocknr.:
- 217-3754
- Fabrikantnummer:
- QS34X245Q3G
- Fabrikant:
- Renesas Electronics
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 verpakking van 5 eenheden)*
€ 15,26
(excl. BTW)
€ 18,465
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Laatste voorraad RS
- Laatste 5 stuk(s), klaar voor verzending vanaf een andere locatie
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 5 - 5 | € 3,052 | € 15,26 |
| 10 - 95 | € 2,972 | € 14,86 |
| 100 - 245 | € 2,894 | € 14,47 |
| 250 - 495 | € 2,82 | € 14,10 |
| 500 + | € 2,75 | € 13,75 |
*prijsindicatie
- RS-stocknr.:
- 217-3754
- Fabrikantnummer:
- QS34X245Q3G
- Fabrikant:
- Renesas Electronics
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Renesas Electronics | |
| Product Type | Bus Switch | |
| Logic Family | CMOS | |
| Number of Elements per Chip | 4 | |
| Maximum Quiescent Current | 12μA | |
| Minimum Supply Voltage | -0.5V | |
| Package Type | QVSOP | |
| Pin Count | 80 | |
| Maximum Supply Voltage | 7V | |
| Minimum Operating Temperature | -40°C | |
| Maximum On State Resistance | 15Ω | |
| Maximum Propagation Delay Time @ CL | 0.25ns | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Bus Width | 32bit | |
| Alles selecteren | ||
|---|---|---|
Merk Renesas Electronics | ||
Product Type Bus Switch | ||
Logic Family CMOS | ||
Number of Elements per Chip 4 | ||
Maximum Quiescent Current 12μA | ||
Minimum Supply Voltage -0.5V | ||
Package Type QVSOP | ||
Pin Count 80 | ||
Maximum Supply Voltage 7V | ||
Minimum Operating Temperature -40°C | ||
Maximum On State Resistance 15Ω | ||
Maximum Propagation Delay Time @ CL 0.25ns | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Bus Width 32bit | ||
The Renesas Electronics QS34X245 series multiwith bus switch provides a set of 32 high-speed CMOS compatible bus switches in a flow-through pinout. The low ON-resistance of the QS34X245 allows inputs to be connected to outputs without adding propagation delay.
Enhanced N channel FET with no inherent diode to Vcc
Bidirectional switches connect inputs to outputs
Zero propagation delay, zero ground bounce
Flow-through pinout for easy layout
